Beelink EQ14 N150

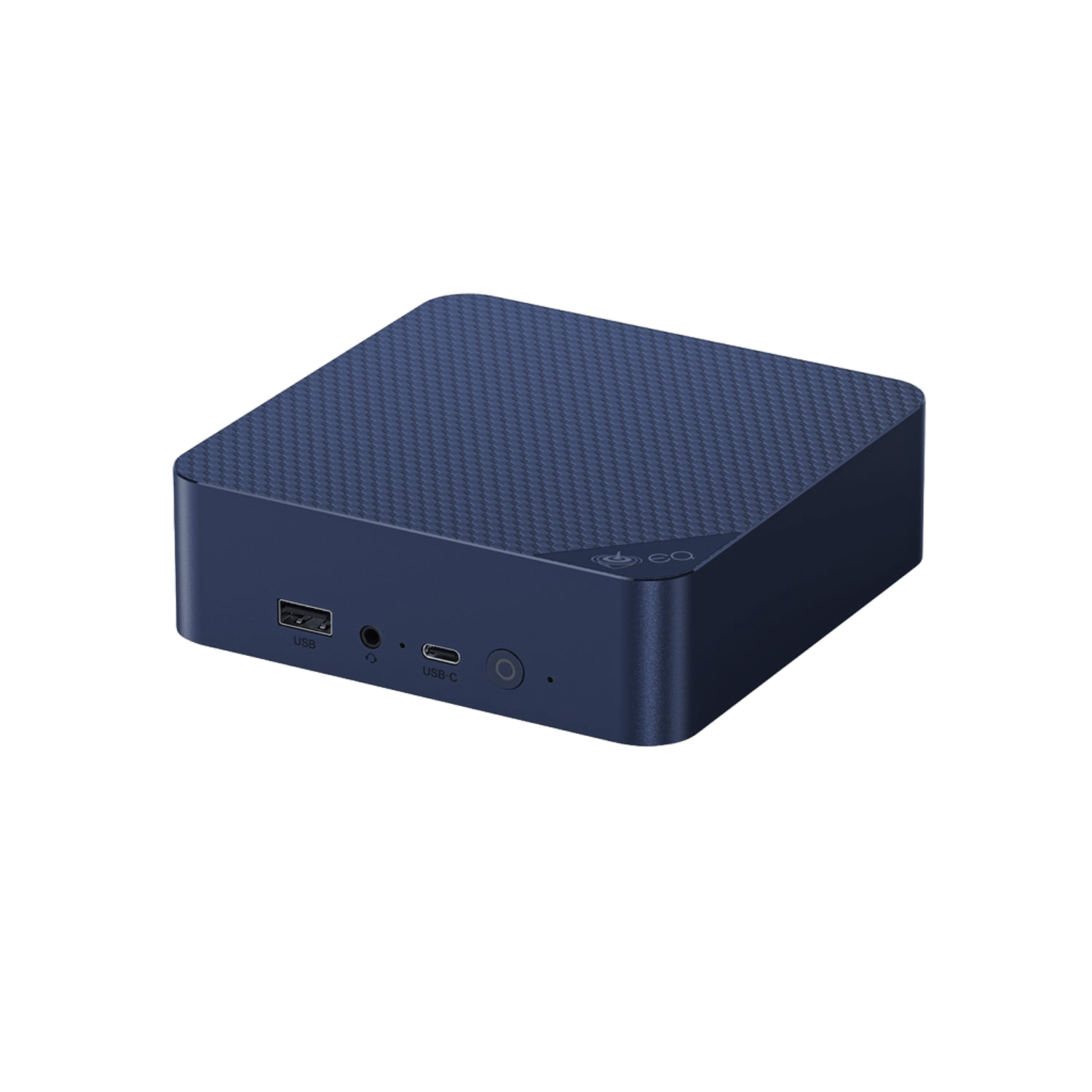

Beelink EQ14 is a compact mini PC with Intel Twin Lake N150 processor, 16GB DDR4 RAM, 500GB SATA III SSD, and dual M.2 slots. It features dual LAN (1Gb and 2.5Gb), WiFi 6, Bluetooth 5.2, dual HDMI 4K output, and runs Windows 11 Home. Dimensions 126x126x39 mm, weight 490g.
Pros
- +Dual M.2 PCIe 3.0 SSD slots
- +WiFi 6 and Bluetooth 5.2
- +Dual LAN (1Gbps and 2.5Gbps)
- +Dual HDMI 4K 60Hz output
- +Near-silent cooling system
- +Built-in power supply
Cons
- −Single SO-DIMM slot limits memory
- −Max memory only 16GB
- −Ships with SATA III SSD
- −No SD card slot
| Model | EQ14 N150 |
| Processor | Intel® Twin Lake N150 Processor 4C/4T Max Turbo Frequency 3.6GHz 6 MB L3 Smart Cache |
| Processor Model | Intel Twin Lake N150 |
| Graphics | Intel® UHD Graphics 24EUs |
| Memory | SO-DIMM DDR4 Slot Max 16GB |
| Memory Slots | 1 x SO-DIMM slot, max 16GB |
| Storage | Dual M.2 2280 PCle3.0 SSD Slots Max 8TB Ships with a SATA III SSD |
| Storage Expansion | Dual M.2 2280 PCIe 3.0 SSD slots, max 8TB total |
| Display Support | HDMI(Max 4K 60Hz) *2 |
| Wireless | 2.4G & 5G Dual-band WiFi 6(Intel AX101) Bluetooth 5.2 |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Available: Dual LAN 1000Mbps Dual LAN 2.5Gbps | Chipset: Realtek RTL8111H Interface: PCIe Data Rate: 10/100/1000 Mbps | Chipset: Intel KTI226-V Interface: PCIe Data Rate: 10/100/1000/2500 Mbps |
| I/O Ports | Front: 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A, 1x Audio Jack; Rear: 2x USB 3.2 Gen 2 Type-A, 1x USB 2.0 Type-A, 2x HDMI 2.0b, 2x RJ45 LAN, 1x AC-in |
| Front I/O | 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A, 1x Audio Jack |
| Rear I/O | 2x USB 3.2 Gen 2 Type-A, 1x USB 2.0 Type-A, 2x HDMI 2.0b, 2x RJ45 LAN, 1x AC-in |
| Dimensions | 126*126*39mm(Without Rubber Feet) 490g |
| Weight | 490g |
| Color / Finish | Navy Blue |
| Form Factor | Mini PC (SFF) |
| Power | Input: 100-240V~, 50/60Hz, 1.9A Output: 12V/4A |
| Power Options | UK |
| Cooling | MSC 2.0 – Cooling System Silent Fan+Heat Fins & Heat Pipe+Heat Sink |
| Operating System | Windows 11 Home |
| Operating System Options | Navy Blue |
| Software Included | Intel Unison app |
| Audio | Built-in audio jack (line out/mic in/headphone out) |
| Expansion Slots | Dual M.2 2280 PCIe 3.0 slots (one x4, one x1) |
| Package Contents | 1x EQ14 N150, 1x User's Manual, 1x HDMI Cable, 1x Power Adapter (optional plug) |
| Features | AUTO POWER ON WOL | About this item | - EQ14 Intel Twin Lake N150---Beelink Mini PC EQ14 is equipped with Intel Twin Lake N150 quad core processor with Max Turbo Frequency of 3.6GHz and Intel Graphics iGPU with 24EUs. It is designed for all kinds of light office needs, and allows you to enjoy stable and smooth operation even in multitasking, eliminating lags and crashes that used to hinder your work efficiency. | - Easy Expansion Options--- EQ14 supports DDR4 of up to 16GB. There are dual M.2 PCle 3.0 SSD slots, supporting up to 4TB fast internal storage. The PCle 3.0 x4 slot is also compatible with an M.2 SATA III SSD. | - Near -Silent Operation ---Air intake from the bottom is so efficient at dissipating the heat that EQ14 needs very low fan speed to stay cool and stable, ensuring near-silent operation. Since there are no vents on the top and side panels, the mini PC can now have a more refreshing design. | - Seamlessly Connect with Intel Unison---EQ14 supports connecting mobile devices seamlessly with the Intel unison app. For example, you will be able to view smartphone photo galleries on your PC, extend your PC screen with a tablet, make and receive phone calls from your PC, transfer files from phone or tablet to your PC, send and receive text messages from your PC, manage device notifications from a single source and so on. | - Built-in Power Supply--- Only one cable is needed for power supply, an external adapter is on longer required, keeping the desktop neat and clean. | - Dual LAN Ports--- Dual LAN 1000Mbps, paired with WiFi 6, to enjoy high-speed data transfer and lag-free experiences in live streaming, file downloading and VR on both wired and wireless connections. | - Pre-Sale---Shipping within 35 days. | Our all power supply has a wide input voltage range from 100V to 240V. Although the US&JP power supply labels 100V-120V, it is safe to work with power source voltages anywhere between 100V to 240V. |
| Overview | Beelink EQ14 N150 is a compact mini PC powered by Intel Twin Lake N150 processor, featuring 16GB DDR4 RAM, 500GB SSD, dual LAN, WiFi 6, and dual HDMI output. Designed for light office work and multimedia. |
| Warranty | Three-year Warranty |
| Configurations | 16G (8G*2) DDR4 + 500GB SSD |
