Beelink EQi13 Pro 13500H/13620H

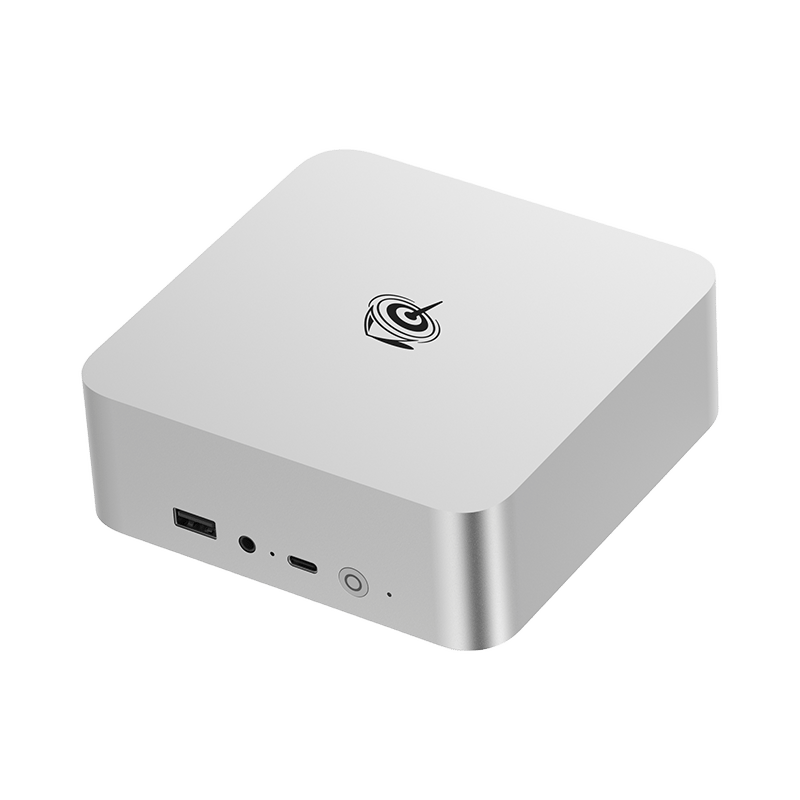

The Beelink EQi13 Pro is a compact mini PC with 13th Gen Intel Core i5 or i7 processor, 32GB DDR4 RAM, dual M.2 PCIe 4.0 SSD slots, dual HDMI 2.0, dual Gigabit Ethernet, WiFi 6, Bluetooth 5.2, and a near-silent MSC 2.0 cooling system. It runs Windows 11 Pro and includes a built-in 85W PSU.
Pros
- +13th Gen Intel Core i5/i7
- +32GB dual-channel DDR4 RAM
- +Dual M.2 PCIe 4.0 SSD slots
- +Supports up to 8TB storage
- +Dual HDMI 4K60 output
- +Dual Gigabit Ethernet ports
Cons
- −32GB max RAM
- −DDR4 memory (not DDR5)
- −No DisplayPort output
- −No SD card slot
- −No USB4 or Thunderbolt
- −Dual Ethernet only Gigabit
| Model | Beelink EQi13 Pro |
| Processor | Available: Intel® Core™ i5-13500H 12C/16T Intel® Core™ i7-13620H 10C/16T |
| Processor Model | Intel Core i5-13500H / Intel Core i7-13620H |
| Processor Technology | Intel 7 (10nm) |
| Graphics | Available: Intel® lris® Xe Graphics 1.45GHz Intel® UHD Graphics for 13th Gen Intel® Processors 1.5GHz |
| Memory | DDR4 32GB (16GB*2) RAM |
| Memory Slots | 2 SO-DIMM slots, max 32GB |
| Storage | Dual M.2 2280 PCle4.0 X4 Max 4TB Available: 500GB (500GB*1) / 1TB (1TB*1) |
| Storage Expansion | Second M.2 slot empty, supports up to 4TB each, total up to 8TB |
| Display Support | HDMI (Max 4K 60Hz) *2 |
| Network | Dual Gigabit Ethernet (Realtek RTL8111H), WiFi 6 (Intel AX200), Bluetooth 5.2 |
| Wireless | WiFi 6 (Intel AX200) Bluetooth 5.2 |
| Bluetooth | 5.2 |
| Ethernet | Chipset: Realtek RTL8111H Interface: PCIe Data Rate: 10/100/1000 Mbps |
| I/O Ports | Front: 1x USB 3.0, 1x USB-C 10Gbps, 1x 3.5mm audio; Rear: 2x HDMI 2.0, 2x USB 3.0, 1x USB 2.0, 2x RJ45 Gigabit Ethernet, DC power input |
| Front I/O | 1x USB 3.0, 1x USB-C (10Gbps), 1x 3.5mm audio jack |
| Rear I/O | 2x HDMI 2.0, 2x USB 3.0, 1x USB 2.0, 2x RJ45 Gigabit Ethernet, DC power input |
| Color / Finish | Frost Silver |
| Form Factor | Mini PC (NUC-like) |
| Power | Input: 100-240V AC, 50/60Hz; 1.9A |
| Power Options | EU, UK |
| Cooling | MSC 2.0 – Cooling System Heat Pipe + Heat Dissipation Fins + Silent Fan+SSD Heatsink |
| Operating System | Windows 11 Pro |
| Operating System Options | 32G (16G*2) DDR4 + 500GB SSD, 32G (16G*2) DDR4 + 1TB SSD |
| Audio | 3.5mm audio jack (headphone/mic combo) |
| Expansion Slots | 2x M.2 2280 PCIe 4.0 x4 (SSD), 1x M.2 2230 (WiFi) |
| Support Included | Three-year warranty |
| Package Contents | 1x EQi13 Pro, 1x User's Manual, 1x HDMI Cable, 1x Power Adapter (optional US/EU/UK/AU/JP) |
| Features | WOL, Auto Power On | About this item | - 13th Gen Intel Core TM Performance Unleashed The EQi13 Pro is powered by 13th Gen Intel Core TM processors (i5-13500H or i7-13620H) . With max turbo frequencies of up to 4.9GHz, up to 12 cores/16 threads, and 24MB Intel Smart Cache! This mini PC is built to handle diverse office demands, delivering faster task execution and smoother workflow. | - Dual-Channel RAM + Blazing-Fast Storage 32GB (16GBx2) DDR4 dual-channel RAM ensures smooth operation for AI tools like Copilot. Dual M.2 PCIe 4.0 SSD slots support up to 4TB each, enabling rapid system responsiveness and fast data access! | - Near-Silent Cooling The air intake from the bottom is highly efficient at dissipating heat, reducing the temperature of key components including the CPU, RAM, and SSD. You can immerse yourself in a silent workplace and focus on every task . | - Built-in 85W PSU - Clean Desk Solution Say goodbye to tangled cables and bulky adapters. The EQi13 Pro runs on a single power cable , helping you maintain a clean, organized workspace while maximizing efficiency . | - Dual Gigabit Ethernet Ports Dual Gigabit Ethernet ports support link aggregation, soft routing, intranet and extranet isolation, network topology, and virtualization, delivering enhanced data security and high-speed networking . | - Dual-Band WiFi 6 & Bluetooth 5.2 WiFi 6 (Intel AX200) offers robust signal coverage and speeds up to 2.4Gbps, ensuring smooth, congestion-free internet access with ultra-low latency. Bluetooth 5.2 brings faster pairing, and more stable connections for wireless peripherals. | Our US&JP power supply has a wide input voltage range from 100V to 240V. Although the power supply labels 100V-120V, it is safe to work with power source voltages anywhere between 100V to 240V. |
| Overview | The Beelink EQi13 Pro is a compact mini PC powered by 13th Gen Intel Core processors (i5-13500H or i7-13620H), featuring 32GB DDR4 RAM, dual M.2 PCIe 4.0 SSD slots, dual HDMI 2.0, dual Gigabit Ethernet, WiFi 6, and Bluetooth 5.2. It comes with Windows 11 Pro and a built-in 85W power supply for a clean desk. |
| Warranty | Three-year Warranty |
| Configurations | 32G (16G*2) DDR4 + 500GB SSD | 32G (16G*2) DDR4 + 1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
