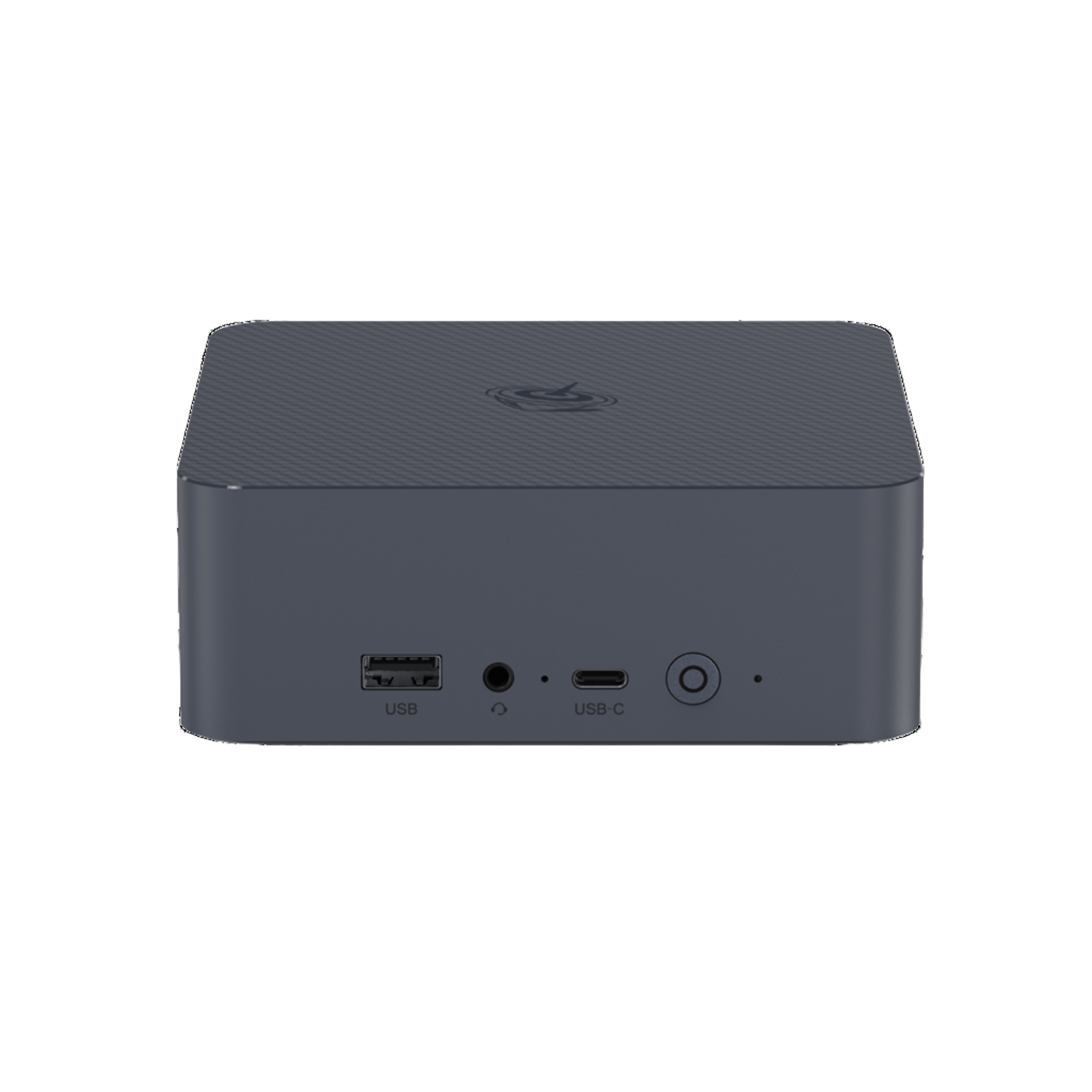

Beelink EQR7 7735HS/7735U
The Beelink EQR7 is a compact mini PC with AMD Ryzen 7 7735HS/7735U processor, Radeon 680M graphics, 24GB LPDDR5 RAM, and 1TB PCIe 4.0 SSD. It features dual M.2 slots, dual HDMI 4K output, dual Ethernet (1Gb and 2.5Gb), WiFi 6, and Bluetooth 5.2. Runs Windows 11 Pro.
Pros
- +Powerful AMD Ryzen 7 processor
- +Integrated Radeon 680M graphics
- +24GB LPDDR5 RAM
- +Dual M.2 PCIe 4.0 slots up to 8TB
- +WiFi 6 and Bluetooth 5.2
- +Dual Gigabit Ethernet ports
Cons
- −Soldered RAM, not upgradeable
- −No built-in speaker
| Model | EQR7 |
| Processor | AMD Ryzen™ 7 7735HS / AMD Ryzen™ 7 7735U |
| Processor Model | Ryzen 7 7735HS / Ryzen 7 7735U |
| Processor Technology | Zen 3+ |
| Graphics | AMD Ryzen™ 680M 12 Cores 2200MHz |
| Memory | 24GB(12GB*2)LPDDR5 |
| Memory Slots | 2 (soldered, max 24GB) |
| Storage | Dual M.2 2280 PCIe4.0 X4 Max 8TB (4TB*2) |
| Storage Expansion | Dual M.2 2280 PCIe 4.0 x4 slots, supports up to 4TB each, total 8TB |
| Display Support | HDMI(Max 4K 60Hz) *2 |
| Wireless | WiFi 6 (Intel AX200) Bluetooth 5.2 |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Chipset: Realtek RTL8111H Interface: PCIe Data Rate: 10/100/1000 Mbps |
| I/O Ports | Front: 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm combo audio jack; Rear: 2x HDMI 2.0, 2x USB 3.2 Gen 2, 1x USB 2.0, 2x RJ45 Ethernet, AC power input |
| Front I/O | 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm combo audio jack |
| Rear I/O | 2x HDMI 2.0, 2x USB 3.2 Gen 2, 1x USB 2.0, 2x RJ45 Ethernet, AC power input |
| Dimensions | 126x126x44.2mm(Without Rubber Feet) 520g |
| Weight | 520g |
| Color / Finish | Grey |
| Form Factor | Mini PC |
| Power | Input: 100-240V AC, 50/60Hz; 1.9A |
| Power Options | US, EU, UK, AU, JP |
| Cooling | MSC 2.0 – Cooling System Heat Pipe + Heat Dissipation Fins + Silent Fan + SSD Heatsink |
| Operating System | Windows 11 Pro |
| Operating System Options | 16G (8G*2) LPDDR5 (soldered) + 500G SSD + Dual LAN 2.5G (Pre-order), 24G (12G*2) LPDDR5 (soldered) + 500G SSD + Dual LAN 2.5G (Pre-order), 24G (12G*2) LPDDR5 (soldered) + 1TB SSD, 24G (12G*2) LPDDR5 (soldered) + 1TB SSD + Dual LAN 2.5G (Pre-order) |
| Audio | 3.5mm combo audio jack, no built-in speaker |
| Expansion Slots | 2x M.2 2280 PCIe 4.0 x4 slots for storage |
| Package Contents | EQR7, User's Manual, HDMI Cable, Power Cable (optional plug) |
| Features | AUTO POWER ON WOL | About this item | - Powerful AMD CPU --- AMD Ryzen TM 7 7735HS/7735U (8C/16T, up to 4.75GHz, Radeon 680M) are built on Zen 3+ architecture. Effortlessly handles everything from daily office tasks to demanding content creation and light gaming. | - | Flexible Storage Expansion --- Comes with 24GB LPDDR5 RAM (12GBx2) and a 1TB PCIe 4.0 SSD. D ual M.2 2280 slots support up to 4TB*2 of total storage, providing ample space for large files and future upgrades. | - | Near-Silent Operation ---Air intake from the bottom is so efficient at dissipating the internal heat, reducing the temperature of key components including the CPU, RAM and SSD. Enjoy a silent workplace and stay focused without distraction . | - | Integrated 85W Power Supply Unit --- B uilt-in 85W PSU (100-240V) with a single-cable setup eliminat es bulky external adapters. Compact chassis design keeps your workspace neat and organized. | - | Dual LAN 1000M/2.5G --- Dual Gigabit Ethernet ports with network isolation technology enhance data security and network management flexibility. The EQR7 also supports Wake-on-LAN and auto power-on for seamless remote access . | Our US&JP power supply has a wide input voltage range from 100V to 240V. Although the power supply labels 100V-120V, it is safe to work with power source voltages anywhere between 100V to 240V. |
| Overview | Beelink EQR7 mini PC with AMD Ryzen 7 7735HS/7735U, 24GB LPDDR5, 1TB SSD, dual HDMI, WiFi 6, Bluetooth 5.2, dual Ethernet, compact design for productivity and light gaming. |
| Warranty | 3 years |
| Configurations | 16G (8G*2) LPDDR5 (soldered) + 500G SSD + Dual LAN 2.5G (Pre-order) | 24G (12G*2) LPDDR5 (soldered) + 500G SSD + Dual LAN 2.5G (Pre-order) | 24G (12G*2) LPDDR5 (soldered) + 1TB SSD | 24G (12G*2) LPDDR5 (soldered) + 1TB SSD + Dual LAN 2.5G (Pre-order) |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
