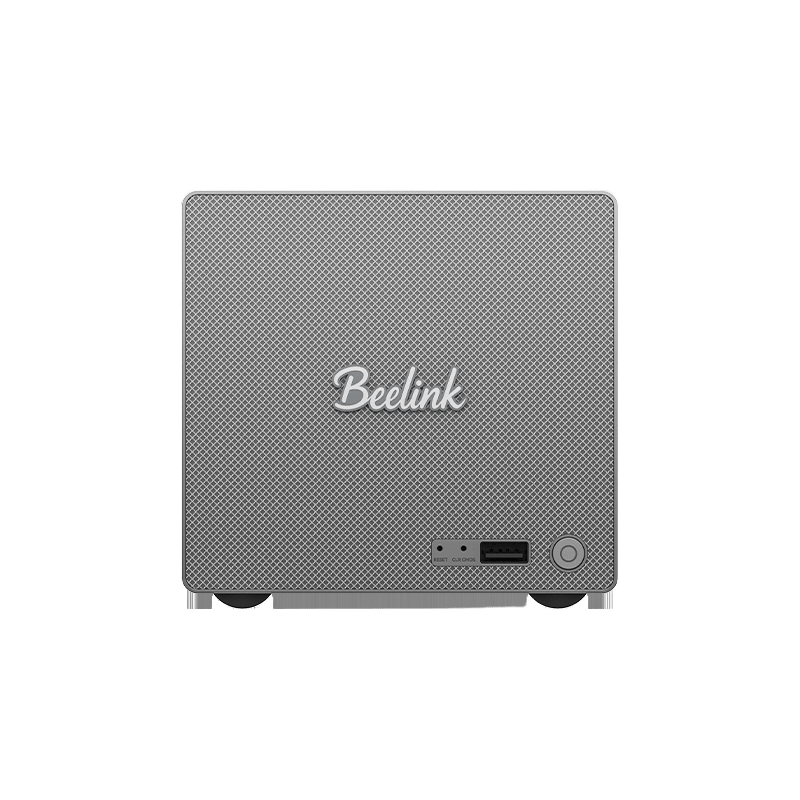

Beelink ME Pro 2-Bay
The Beelink ME Pro 2-Bay is a compact mini PC NAS with Intel Twin Lake N95 or N150 processors, up to 16GB LPDDR5 RAM, and expandable storage via M.2 NVMe and SATA bays. It features dual Ethernet (5GbE and 2.5GbE), Wi-Fi 6, Bluetooth 5.4, and HDMI/USB-C video output. The all-metal unibody design includes efficient cooling and a 3-year warranty.
Pros
- +Dual 5GbE and 2.5GbE ports
- +Three M.2 NVMe slots plus two SATA bays
- +Compact all-metal unibody design
- +Wi-Fi 6 and Bluetooth 5.4
- +Supports 4K HDMI and USB-C video output
- +Swappable modular motherboard
Cons
- −Memory is soldered, no expansion slots
| Model | ME Pro 2-Bay |
| Processor | Intel® Twin Lake N95 4C/4T 6 MB Cache Max Turbo 3.4GHz / Intel® Twin Lake-N150 4C/4T 6 MB Cache Max Turbo 3.6G |
| Processor Model | Intel N95 or Intel N150 |
| Graphics | Intel® Graphics 1000 MHz 24EUs(N150) / Intel® UHD Graphics 1200 MHz(N95) |
| Memory | 12GB/16GB LPDDR5 4800Mhz |
| Memory Slots | Soldered, no expansion slots |
| Storage | M.2 NVMe SSD (configurable: 128GB, 512GB, 1TB) |
| Storage Expansion | M.2 2280 PCIe 3.0 x2 (maximum 4TB) *1 / M.2 2280 PCIe 3.0 x1 (maximum 4TB) *2 | 2.5/3.5-inch SATA hard drive *2 (Single maximum 30TB) |
| Display Support | HDMI 2.0 (max 4K 60Hz), USB-C (video output) |
| Network | 5GbE Realtek RTL8126, 2.5GbE Intel i226-V |
| Wireless | Wi-Fi 6, Bluetooth 5.4 |
| Bluetooth | 5.4 |
| Ethernet | 5GbE (Realtek RTL8126) + 2.5GbE (Intel i226-V), 2 ports |
| I/O Ports | USB-C (10Gbps data) *1 (Supports video output), USB3.2 (10Gbps data) *1, USB2.0 (480Mbps data) *2, HDMI*1 (Max 4K 60Hz), 5G Realtek RTL8126, 2.5G intel i226-v |
| Front I/O | 1x USB-A 10Gbps |
| Rear I/O | 1x HDMI 2.0, 1x USB-C 10Gbps, 2x USB-A 480Mbps, 1x 2.5GbE RJ45, 1x 5GbE RJ45 |
| Dimensions | Dimensions: 166x121x112mm | 2.1kg | Dimensions: 166x121x112mm, 2.1kg |
| Weight | 2.1 kg |
| Color / Finish | Silver |
| Form Factor | Mini-NAS / 2-bay NAS |
| Power | 200–240V, 50–60Hz, Output: 19V 6.32A |
| Power Options | US, EU, UK, AU, JP |
| Cooling | Silicone thermal pads + aluminum frame with internal blower fan |
| Operating System | WINDOWS 11 HOME |
| Operating System Options | US, EU, UK, AU, JP |
| Expansion Slots | 3x M.2 2280 (1x PCIe 3.0 x2, 2x PCIe 3.0 x1), 2x SATA 3.5/2.5-inch bays |
| Environmental | Temperature: -10°C to 45°C, Humidity: 30% to 90% | Temperature: -20°C to 60°C, Humidity: 10% to 90% |
| Features | About this item | - Ultra-Compact---All-metal unibody design, about 50% smaller than typical 2-bay NAS units. | - Swappable Modular Motherboard ---Supports interchangeable Intel, AMD, or ARM boards. | - | High Performance---Equipped with Intel N-series processors (up to 25W TDP), 5GbE + 2.5GbE dual ports. | - Easy Dust Cleaning---Simply slide out the motherboard for quick maintenance. | - Efficient Cooling---Silicone thermal pads + aluminum frame with internal blower fan for effective heat exchange. | - | Quiet Operation---Tight-fitting screws reduce HDD vibration noise, plus dual-side silicone dampeners for drive protection. | - Pre-Sale---Shipping within 35 days. | Our US&JP power supply has a wide input voltage range from 100V to 240V. Although the power supply labels 100V-120V, it is safe to work with power source voltages anywhere between 100V to 240V. |
| Overview | Beelink ME Pro 2-Bay is a hybrid NAS mini PC combining 2 SATA bays and 3 M.2 NVMe slots, with multi-gig Ethernet, Wi-Fi 6, and Intel N95/N150 processors. |
| Warranty | 3 Year Warranty |
| Configurations | Intel N150 + 16GB LPDDR5 4800Mhz + 1TB SSD(Pre order) | Intel N150 + 16GB LPDDR5 4800Mhz + 512GB SSD | Intel N95 + 12GB LPDDR5 4800Mhz + 128GB SSD | Intel N95 + 12GB LPDDR5 4800Mhz + 512GB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
