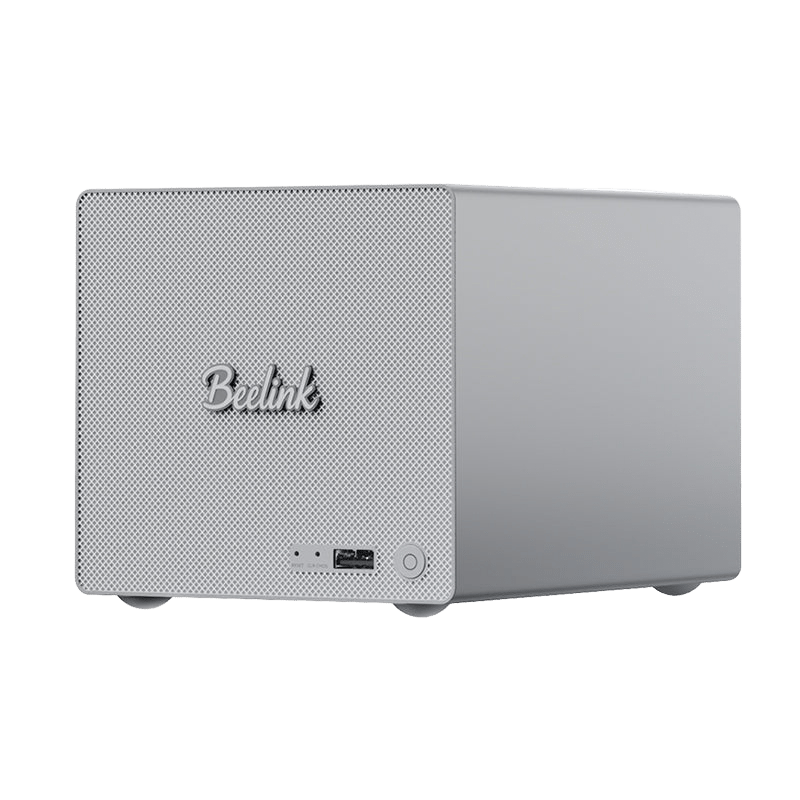

Beelink ME Pro 2-Bay AI NAS Mini PC Intel Wildcat Lake 304

Beelink ME Pro 2-Bay AI NAS Mini PC features Intel Core 3-304 (5 cores, up to 4.3GHz) with 24 TOPS AI accelerator, 16GB DDR5, 512GB UFS 3.1, dual Thunderbolt 4, 10GbE + 2.5GbE LAN, and 2-bay SATA storage up to 64GB total. Runs Windows 11 Pro.

Full Specifications

ModelME Pro 2-Bay 304
ProcessorIntel Core 3-304: 5 cores, 5 threads, up to 4.3 GHz, 8MB L3 cache
Processor ModelIntel Core 3-304
Processor Technology18A process
GraphicsIntel Graphics (integrated)
NPU / AI Accelerator24 TOPS AI accelerator
Memory16GB DDR5 5600MHz SO-DIMM
Memory Slots2 slots, up to 64GB
Storage512GB UFS 3.1 flash storage + 1x M.2 2280 PCIe 4.0 slot (supports up to 4TB NVMe SSD)
Storage Expansion1x M.2 2280 PCIe 4.0 (max 4TB), 2x 2.5/3.5-inch SATA HDD/SSD (max 30TB each), total max 64TB
Display SupportUp to 3 displays: 2 via Thunderbolt 4, 1 via HDMI, max resolution 4K@60Hz
Network10GbE + 2.5GbE dual LAN
WirelessWi-Fi 6 (MT7920)
Bluetooth5.4
Ethernet10GbE + 2.5GbE, 2 ports
I/O Ports2x Thunderbolt 4 (USB-C 40Gbps), 1x USB 3.2 Gen2 (10Gbps), 2x USB 2.0, 1x HDMI 2.0, 1x 3.5mm audio jack
Dimensions166x121x112mm
Weight2.1kg
Color / FinishBlack
Form FactorNAS mini PC, 2-bay
Power120W (19V 6.32A) AC adapter, input 100-240V 50/60Hz
Power OptionsUS, EU, UK, AU, JP plug options
CoolingActive cooling with fan
Operating SystemWindows 11 Pro
Operating System OptionsWindows 11 Pro (multiple language/region options)
Audio3.5mm audio output
Expansion Slots1x M.2 2280 PCIe 4.0, 2x SATA 6Gb/s
EnvironmentalOperating: -10°C to 45°C, humidity 30%-90%; Storage: -20°C to 60°C, humidity 10%-90%
SecurityTPM 2.0
Package ContentsPower adapter, user manual, SATA cables, screws
Features18A Wildcat Lake processor, 24 TOPS AI compute, dual Thunderbolt 4, 10GbE+2.5GbE networking, DDR5 RAM, UFS 3.1 flash storage, modular design with swappable motherboard
OverviewBeelink ME Pro 2-Bay AI NAS Mini PC with Intel Core 3-304, designed for NAS and AI workloads, supports up to 64TB storage.
Warranty1 year warranty
Configurations16GB DDR5 + 512GB UFS 3.1 storage

Specs on this page may not be 100% accurate — please verify with the manufacturer.

Compare with other Beelink devices

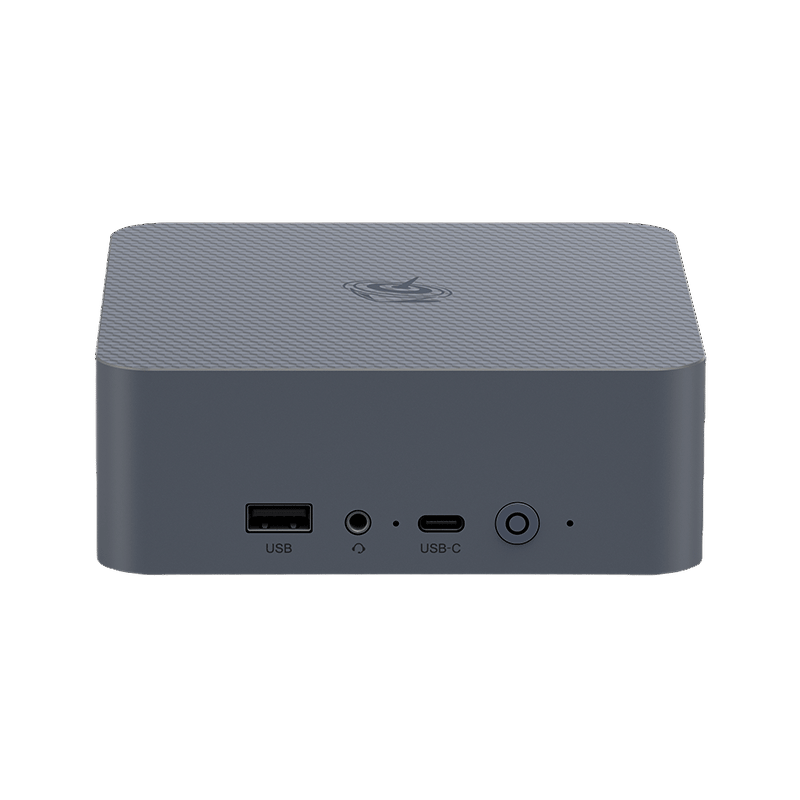

Beelink EQi Wildcat Lake Core 3 304

Beelink

Beelink EQi Wildcat Lake Core 3 304

Intel Core 3-304 (Wildcat Lake, 18A process, 2 cores, 4 threads, 24 TOPS NPU)

Intel Xe3-LPG

DDR5 5600MT/s (SO-DIMM, expandable up to 64GB) or LPDDR5 5600MT/s (onboard); capacities: 16GB LPDDR5, 24GB DDR5, 32GB DDR5

512GB UFS 3.1 onboard + 2x M.2 2280 PCIe 4.0 (one x2, one x1) supporting up to 4TB each

$509.00 - $739.00

Beelink EQR5 AMD Ryzen TM 5 5500U

Beelink

Beelink EQR5 AMD Ryzen TM 5 5500U

AMD Ryzen 5 5500U 6C/12T

AMD Radeon Graphics 7CUs 1800MHz

Dual SO-DIMM DDR4 Slot, Max 64GB

Dual M.2 2280 PCIe 3.0 X4, Max 8TB

$469.00

Beelink EQi13 Intel Core TM 13500H/13420H

Beelink

Beelink EQi13 Intel Core TM 13500H/13420H

Intel Core i5-13500H (12 cores/16 threads, up to 4.7GHz, 18MB cache) or Intel Core i5-13420H (8 cores/12 threads, up to 4.6GHz, 12MB cache)

Intel Iris Xe Graphics (for i5-13500H) up to 1.45GHz, or Intel UHD Graphics (for i5-13420H) up to 1.40GHz

16GB LPDDR5 dual-channel (soldered)

Dual M.2 2280 PCIe 4.0 x4 slots, supports up to 2TB each (max 4TB)

$489.00 - $529.00

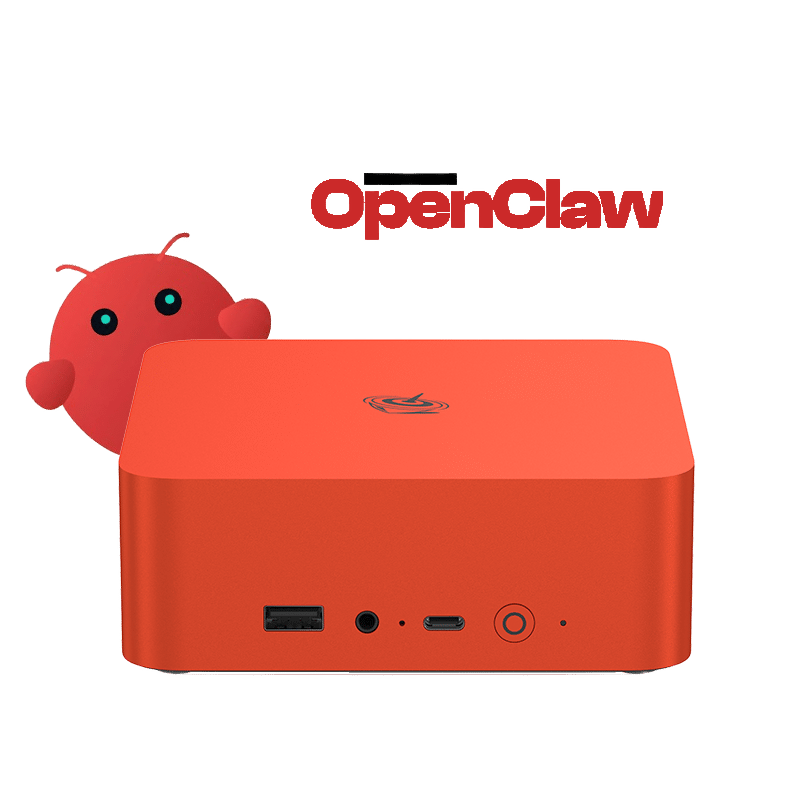

Beelink EQi Pro AMD Ryzen TM 7 7735HS (OpenClaw Pre-Installed)
