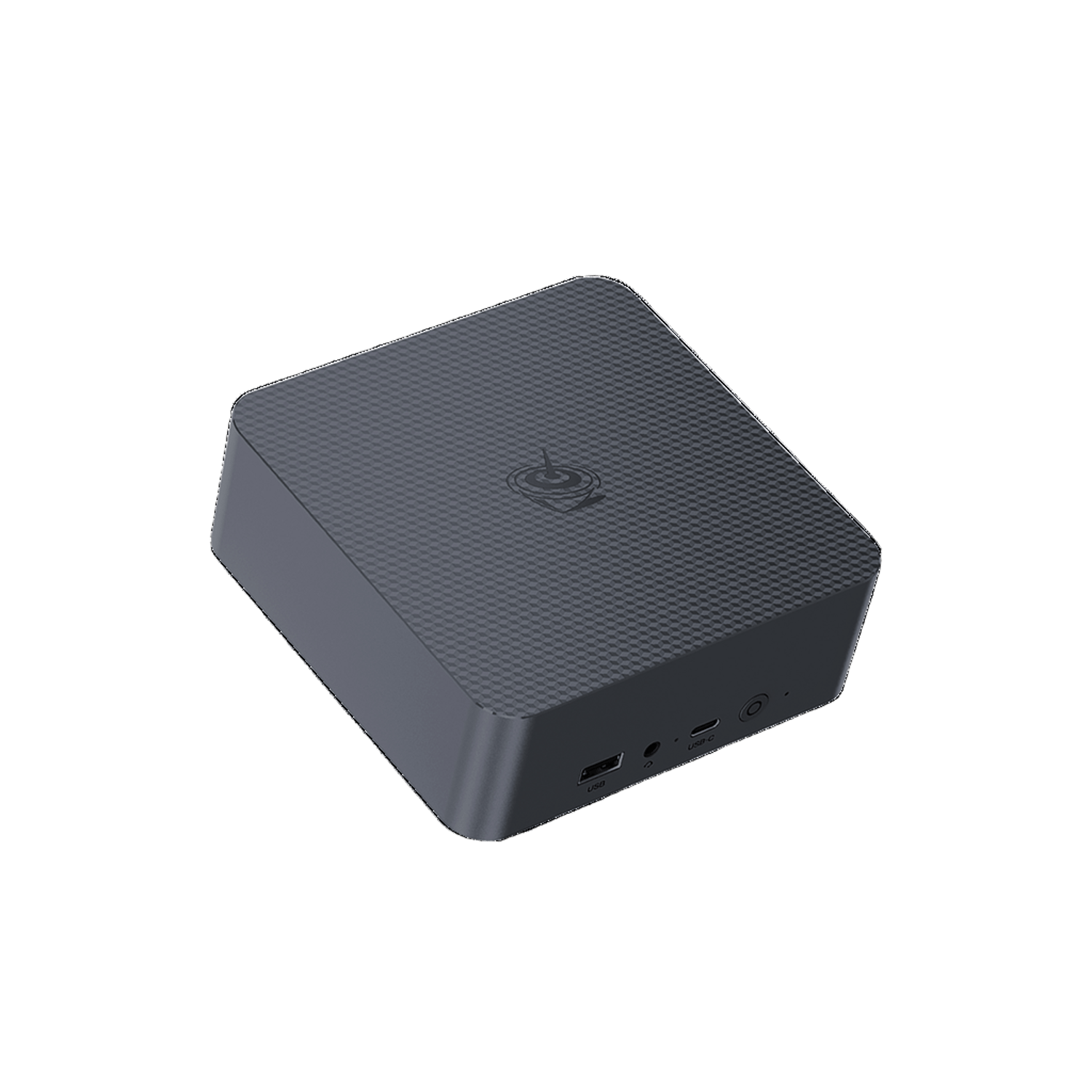

Beelink EQi12 Intel Core 1235U/1220P
Compact mini PC powered by Intel Core i5-1235U or i3-1220P, with up to 32GB DDR4 and dual M.2 SSDs. Features dual HDMI, dual gigabit Ethernet, WiFi 6, and Bluetooth 5.2. Includes Windows 11 Pro, built-in 85W PSU, and three-year warranty.
Pros
- +Dual M.2 PCIe 4.0 slots
- +Supports up to 8TB storage
- +Dual 1GbE LAN ports
- +WiFi 6 and Bluetooth 5.2
- +Dual HDMI 4K60 output
- +Built-in 85W power supply
Cons
- −No USB-C port
- −No 2.5GbE Ethernet
- −No SD card slot
- −DDR4 memory only
| Model | Beelink EQi12 |
| Processor | Intel® Core™ i5-1235U 10C/12T; Intel® Core™ 1220P 10C/12T |
| Processor Model | Intel Core i5-1235U / Intel Core i3-1220P |
| Processor Technology | Intel 7 |
| Processor Package | FCBGA1744 |
| Chipset | Intel SoC |
| Graphics | Intel® lris® Xe Graphics eligible 1.20GHz; Intel® UHD Graphics 1.10 GHz |
| Memory | DDR4 16GB (8GB*2)/32GB (16GB*2) RAM |
| Memory Slots | 2 (SO-DIMM) |
| Storage | Dual M.2 2280 PCle4.0 X4, Max 8TB, Options: 500GB / 1TB |
| Storage Expansion | Dual M.2 slots, max 8TB |
| Display Support | HDMI (Max 4K 60Hz) *2 |
| Network | Dual LAN 1000Mbps (Realtek RTL8111H) |
| Wireless | WiFi 6 (Intel AX200), Bluetooth 5.2 |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Chipset: Realtek RTL8111H, Interface: PCIe, Data Rate: 10/100/1000 Mbps |
| I/O Ports | 2x HDMI, 2x RJ45, 2x USB 3.0, 2x USB 2.0, 3.5mm audio jack |
| Dimensions | 126x126x44.2mm (Without Rubber Feet), 520g |
| Weight | 520g |
| Color / Finish | Milky Grey |
| Form Factor | Mini PC (NUC-like) |
| Power | Input: 100-240V AC, 50/60Hz; 1.9A |
| Power Options | US, EU, UK |
| Cooling | MSC 2.0 – Cooling System, Heat Pipe + Heat Dissipation Fins + Silent Fan + SSD Heatsink |
| Operating System | Windows 11 Pro |
| Operating System Options | 16G (8G*2) DDR4 + 500GB SSD, 32G (16G*2) DDR4 + 500GB SSD, 32G (16G*2) DDR4 + 1TB SSD |
| Audio | 3.5mm audio jack |
| Expansion Slots | Dual M.2 2280 PCIe 4.0 x4 slots |
| Support Included | Three-year Warranty |
| Package Contents | EQi12, User's Manual, HDMI Cable, Power Adapter (optional region) |
| Features | AUTO POWER ON WOL | About this item | - CPU options---Intel Core TM i5-1235U/Intel Core TM 1220P can effortlessly see you through day-to-day home and office computing chores with stability and tranquility!  | Storage Expansion Options---EQi12 features 16GB DDR4 high-capacity and high-frequency RAM, which meets the minimal RAM requirement for running Copilot, the Microsoft Al software. There are dual M.2 PCle 4.0 SSD slots, supporting up to 8TB fast internal storage. | Near-Silent Operation---Air intake from the bottom is so efficient at dissipating the internal heat, reducing the temperature of key components including the CPU, RAM and SSD. Enjoy a silent workplace and focus on every moment. | Built-in 85W Power Supply Unit---Only one cable is needed for power supply, an external adapter is no longer required. This design minimizes the area occupied on the power strip, giving you a desktop that is neat and tidy! | Dual LAN 1000M---The separation of internal and external networks greatly enhances data security. | Dual-Band WiFi 6 & Bluetooth 5.2---Dual-Band WiFi 6 offers faster data transfer speed, higher security and better stability. | Our US&JP power supply has a wide input voltage range from 100V to 240V. Although the power supply labels 100V-120V, it is safe to work with power source voltages anywhere between 100V to 240V. |
| Overview | Compact mini PC with Intel Core i5-1235U or i3-1220P, dual M.2 slots, dual LAN, WiFi 6, Windows 11 Pro. |
| Warranty | Three-year Warranty |
| Configurations | 16G (8G*2) DDR4 + 500GB SSD | 32G (16G*2) DDR4 + 500GB SSD | 32G (16G*2) DDR4 + 1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
