A8 Max

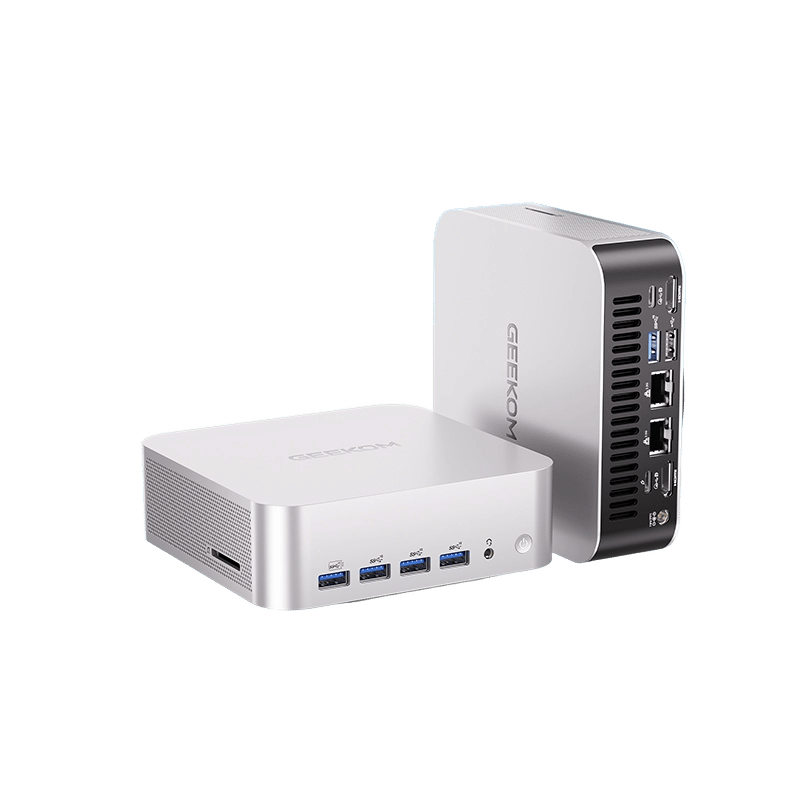

The Geekom A8 Max is a mini PC powered by an AMD Ryzen 9 8945HS or Ryzen 7 8745HS processor (8 cores, up to 5.2 GHz) with Radeon 780M graphics. It supports up to 64GB DDR5 RAM, one M.2 PCIe 4.0 SSD, dual 2.5GbE LAN, Wi-Fi 6E, and four displays via HDMI and USB4. Dimensions: 5.31 x 5.20 x 1.85 inches. Includes 3-year warranty.
Pros
- +Powerful 8-core Ryzen 7 8745HS
- +Radeon 780M integrated graphics
- +Up to 64GB DDR5 RAM
- +PCIe 4.0 SSD up to 2TB
- +Dual 2.5GbE LAN ports
- +Wi-Fi 6E and Bluetooth 5.2
Cons
- −Single M.2 slot limits storage expansion
- −No discrete GPU
| Model | A8 Max |
| Processor | AMD Ryzen™ 7 8745HS (8C/16T, 16MB L3, 3.8-5.1 GHz, TDP 45W) |
| Processor Model | Ryzen 7 8745HS |
| Processor Technology | Zen 4 |
| Graphics | AMD Radeon TM 780M | AMD Radeon™ 780M |
| NPU / AI Accelerator | AMD Ryzen AI |
| Memory | High Speed DDR5 SODIMM, up to 64 GB |
| Memory Slots | 2 (max 64 GB) |
| Storage | M.2 2280 PCIe 4.0 × 4, up to 2 TB |
| Storage Expansion | 1 M.2 2280 PCIe 4.0 x4 slot, up to 2 TB |
| Display Support | Up to 4 displays (2x HDMI, 2x USB4 Type-C), 4K@60Hz or 8K@60Hz via USB4 |
| Network | Dual 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.2 |
| Wireless | M.2 Wi-Fi 6E |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual RJ45 10/100/1000/2500 Mbps |
| I/O Ports | 1 × USB 3.2 Gen 2 Type-A (rear) 1 × USB 2.0 Type-A (rear) 3 × USB 3.2 Gen 2 Type-A (front) 1 × USB 3.2 Gen 2 Type-A (Always On) 1 × USB 4.0 Type-C (PD in, back) 1 × USB 4.0 Type-C (PD, back) 1 × 3.5mm stereo headset jack 2 × RJ45 (2.5GbE) 2 × HDMI 1 × DC in 1 × Power button 1 × Kensington Lock 1 × SD card slot |
| Front I/O | 3x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-A (Always On), 1x 3.5mm headset jack, 1x Power button, 1x SD card slot |
| Rear I/O | 1x USB 3.2 Gen 2 Type-A, 1x USB 2.0 Type-A, 2x USB 4.0 Type-C, 2x RJ45, 2x HDMI, 1x DC in, 1x Kensington Lock |
| SD Card | SD card slot |
| Dimensions | 5.31" × 5.20" × 1.85" |
| Weight | 1.87 lbs (0.85 kg) |
| Color / Finish | Black |
| Form Factor | Mini PC |
| Power | 19V/6.32A (120W) AC Adapter |
| Cooling | IceBlast 2.0 Cooling System with dual copper heat pipes |
| Operating System | Windows 11 Pro |
| Operating System Options | Linux compatible |
| Audio | HDA CODEC |
| Expansion Slots | 1x M.2 2280 PCIe 4.0 x4 (SSD), 1x M.2 2230 (Wi-Fi), internal RS485/RS232 headers |
| Security | dTPM 2.0, Kensington Lock |
| Support Included | 3-Year Limited Warranty |
| Package Contents | 1 × Power Adapter, 1 × HDMI Cable, 1 × VESA Mount, 1 × User Manual |
| Kensington Lock | Yes |
| Features | The Ultimate Mac Mini M4 Alternative: More Ports, More Power, No Soldered RAM. | Elite AMD Ryzen TM AI Performance: Configurable with up to the flagship Ryzen TM 9 8945HS (5.2GHz) or Ryzen TM 7 8745HS. Featuring 8 "Zen 4" cores and Radeon TM 780M graphics, this workstation utilizes AVX-512 and dedicated Ryzen TM AI hardware to supercharge local LLMs, Stable Diffusion, and creative suites with professional-grade stability. | 16GB/1TB "Sweet Spot" with Open-Architecture Upgradability: Skip entry-level bottlenecks with a pre-configured foundation of 16GB DDR5 RAM and a 1TB Gen4 SSD-the perfect balance of speed and storage for pro-users. Unlike closed systems, our non-soldered design ensures your hardware isn't locked, allowing you to easily scale up to 64GB of dual-channel RAM and 2TB of high-speed storage as your workflow evolves. | Massive Native Connectivity: A professional-grade workstation featuring 8 USB ports, including dual 40Gbps USB4 and an integrated SD card reader. Effortlessly power four 4K displays or a single 8K cinematic setup with the unmatched stability of high-speed native I/O. | Built to Last with Industrial-Leading 3-Year Warranty: Designed for 5+ years of continuous performance. This 440lb-rated metal chassis has passed 339 rigorous quality tests and features IceBlast 2.0 cooling with dual copper heat pipes for near-silent thermal management under heavy loads. | Enterprise Networking & Hardware Security: Equipped with Dual 2.5Gbps LAN ports, Wi-Fi 6E, and dTPM 2.0 security. Ideal for virtualization, secure home servers (Proxmox/pfSense), and high-bandwidth creative lab environments. | Industrial & Developer Ready: Ships with Windows 11 Pro and verified Linux compatibility. Includes a VESA mount, Kensington Lock, and internal RS485/RS232 headers, making it perfect for both minimalist offices and specialized industrial control. |
| Overview | The GEEKOM A8 Max, with AMD AI chip R9-8945HS, offers 65W performance, dual Ethernet, and sleek design-ideal for professionals seeking power in a compact package. |
| Warranty | 3-Year Limited Warranty |
| Configurations | R7-8745HS 16 GB RAM + 1 TB SSD | R9-8945HS 32 GB RAM + 1 TB SSD | R9-8945HS 32 GB RAM + 2 TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
