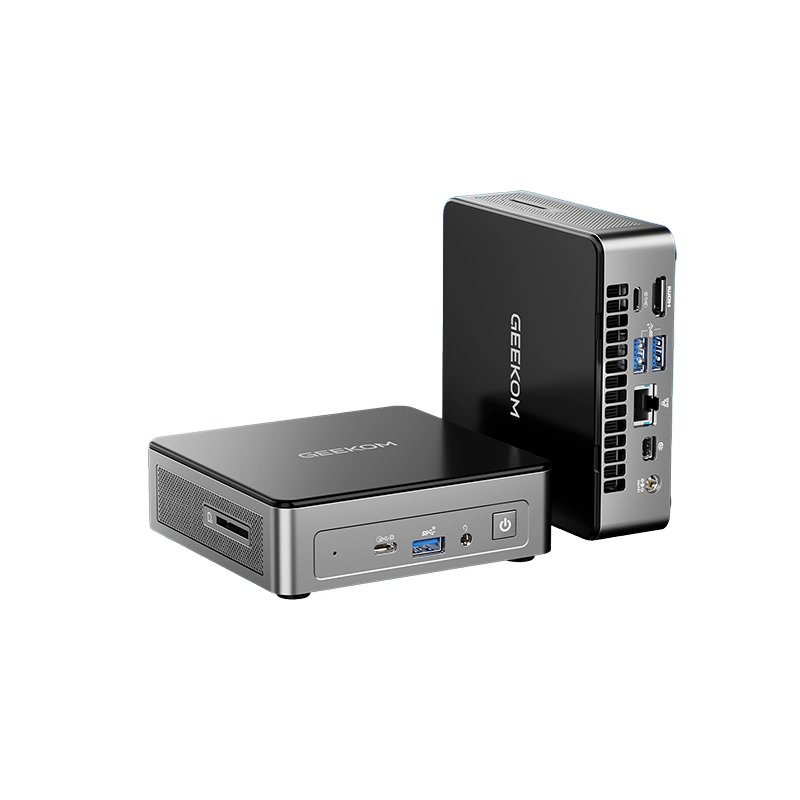

Air12 2026 Edition
The Geekom Air12 2026 Edition is a mini PC powered by an Intel Pentium Gold 7505 processor (2 cores, 4 threads, up to 3.5GHz) with Intel UHD Graphics. It supports up to 32GB DDR4 RAM (single channel) and one M.2 SSD. Triple display output via HDMI 2.0 (4K@60Hz), Mini DP 1.4 (8K@30Hz), and USB-C DP 1.4 (8K@30Hz). Features WiFi 6, Bluetooth 5.2, Intel GbE, dual USB-C 20Gbps, USB-A 10Gbps, SD card reader, and a 65W adapter. Runs Windows 11 Pro,
Pros
- +Triple display support up to 8K
- +WiFi 6 and Bluetooth 5.2
- +Dual DDR4 SO-DIMM slots up to 32GB
- +Multiple USB 3.2 Gen2 ports with Type-C DP
- +SD card reader included
- +Gigabit Ethernet
Cons
- −Entry-level Pentium Gold processor
- −DDR4 memory not DDR5
- −Only one M.2 SSD slot
- −No USB4 or Thunderbolt
| Model | Air12 2026 Edition |
| Processor | Intel® Pentium® Gold 7505 Processor | Tiger Lake Gold 7505, TDP 15W |
| Processor Model | Pentium Gold 7505 |
| Processor Technology | 10nm |
| Graphics | Intel UHD Graphics | Intel Graphics |
| Memory | DDR4 SO-DIMM, up to 32 GB |
| Memory Slots | 2 SO-DIMM slots, max 32 GB |
| Storage | 1 × M.2 2280 SSD (SATA/PCIe), up to 2 TB |
| Display Support | Triple Display Support, Up to 8K Resolution |
| Wireless | WiFi 6 |
| Bluetooth | 5.2 |
| Ethernet | Intel® 10/100/1000 Mbps Ethernet |
| I/O Ports | 1 x USB 3.2 Gen 2 x 1 port(front panel) and 2 x USB 3.2 Gen 2 port(back panel) | 1 x TYPE-C with DP 1.4 Alt Mode(back panel) | 1 x TYPE-C Data Only(front panel) | 1 x SD card reader | 1 x 3.5 mm headphone jack (front panel, support Apple HeadPhone) | 1 x HDMI 2.0(back panel) | 1 x Mini DP 1.4(back panel) |
| Front I/O | 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C (data only), 1x 3.5mm headphone jack |
| Rear I/O | 2x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C (DP Alt Mode), 1x HDMI 2.0, 1x Mini DP 1.4, 1x RJ45 Gigabit LAN, 1x DC-in |
| SD Card | SD card reader |
| Dimensions | 4.61" x 4.41" x 1.35" |
| Weight | 452 g |
| Color / Finish | Matte gray and black |
| Form Factor | 4.61 × 4.41 × 1.35 inches (117 × 112 × 34.2 mm) |
| Power | Automatics Voltage adjustment between 100 and 240V AC, 50/60Hz, 65Watts (19V/3.42A), 90 Watts (19V/4.74A), 3Pin, 1.8 meters long |
| Cooling | Dual copper heat pipes with fan (<35dB) |
| Operating System | Win11 25h2 Pro, support Modern Standby |
| Audio | 3.5mm headphone jack (supports Apple HeadPhone) |
| Expansion Slots | 1x M.2 2280 for SSD, 1x M.2 1216 for WiFi |
| Security | Kensington lock slot, fTPM 2.0 (optional) |
| Support Included | 24/7 tech support |
| Certifications | CE, FCC, CB |
| Kensington Lock | Yes |
| Features | Validated 5-Year Reliability - Built for the long haul with 339+ rigorous stress tests. This industrial-grade validation ensures a dependable 5-year hardware lifecycle for demanding office, educational, and 24/7 media environments. | Responsive Daily Workflows - Powered by the Intel Pentium Gold 7505 (Tiger Lake) and up to 32GB of high-performance memory for elite multitasking. The versatile M.2 2280 SSD slot (SATA/PCIe) supports high-speed storage up to 2TB, ensuring near-instant boot times and rapid file access. | Triple-Display Support | Up to 8K - Drive three independent monitors simultaneously via HDMI 2.0, Mini DP 1.4, and Type-C. Experience up to 8K visual clarity that transforms your desk into a high-definition command center for data and media. | Rugged 440lb-Rated Chassis - A full-metal inner frame shields components against up to 440 lbs of pressure. Paired with dual copper heat pipes, the Air12 remains whisper-quiet (<35dB) even under sustained, heavy-load operation. | Pro Connectivity & Tool-Free Access - Featuring ultra-fast 20Gbps USB-C ports, an SD card reader, and WiFi 6. The VESA-ready design and tool-free access allow for a clutter-free workspace and effortless maintenance or upgrades. | Industry-Leading 3-Year Warranty - Secure your investment with 3 full years of protection-tripling the industry standard. Includes 24/7 dedicated tech support for ultimate peace of mind and long-term hardware security. |
| Overview | Level up your creativity with the 12th Gen Intel mini PC featuring DDR5, PCIe SSD speeds 7X faster for silky 8K workflows. |
| Warranty | 3-Year Warranty |
| Configurations | Pentium Gold 7505 8 GB RAM + 256 GB SSD | Pentium Gold 7505 8 GB RAM + 512 GB SSD | Pentium Gold 7505 16 GB RAM + 512 GB SSD | N100 16GB RAM + 512GB SSD | N150 16GB RAM + 512GB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
