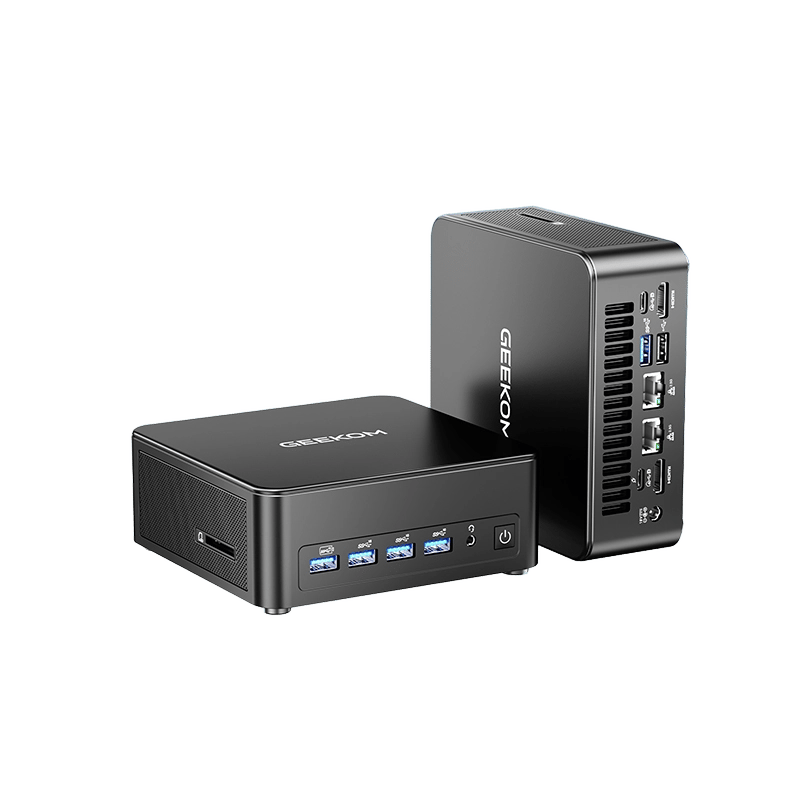

IT13 Max
Geekom IT13 Max AI Mini PC features Intel Core Ultra 9 185H processor with AI NPU, Intel Iris Xe graphics, up to 64GB DDR5 RAM, and support for up to 6TB storage via M.2 and SATA. It includes dual USB4, dual HDMI 2.0 for 8K output, Wi-Fi 6E, Bluetooth 5.2, 2.5GbE, and Windows 11 Pro in a compact 0.9L chassis.
Pros
- +Intel Core Ultra 9 185H CPU
- +Dedicated AI NPU
- +Dual 2.5GbE LAN
- +Dual USB4 with 8K display support
- +Supports up to 4 displays
- +Up to 96GB DDR5 RAM
Cons
- −Wi-Fi 6E not Wi-Fi 7 despite feature claims
- −M.2 2242 slot is SATA only
| Model | IT13 Max |
| Processor | Intel® Core™ Ultra 9 185H | Intel Core 14th Gen Meteor Lake H, Ultra 9 185H TDP 45W |
| Processor Model | Intel Core Ultra 9 185H |
| Graphics | Intel Iris Xe Graphics eligible |
| NPU / AI Accelerator | Intel AI Boost NPU |
| Memory | V1(16 GB + 1 TB): High-speed DDR5 SO-DIMM, up to 96 GB V1(24 GB + 500 GB): Onboard LPDDR5 |
| Memory Slots | 2x SO-DIMM (DDR5 config) or onboard (LPDDR5 config) |
| Storage | 1 × M.2 2280 PCIe SSD NVMe Gen 4, up to 4 TB 1 × M.2 2242 SATAIII SSD slot, up to 2 TB |
| Storage Expansion | Up to 6TB total (M.2 slots) plus 2.5" SATA bay |
| Display Support | Up to 4 displays: 2x HDMI 2.0 (4K@60Hz) + 2x USB4 (DP Alt Mode, 8K@60Hz or 4K@60Hz) |
| Network | Dual 2.5GbE LAN |
| Wireless | Intel Wi-Fi 6E AX211 |
| Bluetooth | Bluetooth v5.2 |
| Ethernet | Dual 2.5GbE LAN |
| I/O Ports | 1 × USB3.2 Gen2 Type-A + 1 x USB 2.0 Type-A (back panel) 4 × USB3.2 Gen2 Type-A (front panel), one port support Always On 2 × USB 4.0 (back panel), on |
| Front I/O | 4x USB 3.2 Gen2 Type-A (1 Always On), 1x 3.5mm audio jack |
| Rear I/O | 1x USB 3.2 Gen2 Type-A, 1x USB 2.0 Type-A, 2x USB4, 2x HDMI 2.0, 2x RJ45 2.5GbE, DC-in, Kensington lock |
| SD Card | Full-size SD card slot |
| Dimensions | 4.61" x 4.41" x 1.94" |
| Weight | 836 g (1.84 lbs) |
| Color / Finish | Black |
| Form Factor | 5.35" × 5.20" × 1.97" |
| Power | 19V DC input, 100W power adapter (estimated) |
| Cooling | Active cooling with fan and heat pipes, whisper-quiet thermal management |
| Operating System | Windows 11 |
| Operating System Options | Linux compatible |
| Audio | HDA CODEC |
| Expansion Slots | 1x M.2 2280 (NVMe), 1x M.2 2242 (SATA), 1x 2.5" SATA bay |
| Security | dTPM 2.0, Kensington lock slot |
| Support Included | 3-year limited warranty, 24/7 technical support |
| Package Contents | Mini PC, power adapter, VESA mount, HDMI cable, manual (inferred) |
| Kensington Lock | Yes |
| Features | The Best Mini PC for Power Users. | Elite Intel Core TM Ultra 9 AI Performance: Powered by the 16-core Intel Core TM Ultra 9 185H processor (up to 5.1GHz, 45W TDP), with a dedicated AI NPU and Intel Arc TM graphics for demanding creative work, AI applications, coding, and heavy multitasking-all in a compact 0.9L chassis. | Dual Performance Configurations: Choose the setup that fits your workflow. The 16GB DDR5 + 1TB PCIe Gen4 SSD model features dual SO-DIMM slots supporting up to 96GB RAM for maximum upgradeability. Prefer more memory out of the box? The 24GB LPDDR5-5600 + 500GB PCIe Gen4 SSD model delivers higher memory bandwidth and exceptional multitasking performance. Both models support up to 6TB of M.2 SSD storage. | Pro-Level 8K Visuals & Dual USB4: Connect up to four 4K displays or one stunning 8K display through dual 40Gbps USB4 ports and dual HDMI 2.0 outputs. Built for AI development, content creation, multi-monitor productivity, and lightning-fast data transfers. | Whisper-Quiet Thermal Management: An advanced cooling system is engineered to maximize sustained performance while minimizing noise. Designed specifically for the 45W processor, it prevents thermal throttling during extended rendering, AI workloads, and intensive multitasking. | Next-Gen Wi-Fi 7 & Dual 2.5G Ethernet: Stay connected with cutting-edge Wi-Fi 7, Bluetooth 5.4, and dual 2.5GbE LAN ports for high-speed, low-latency networking. Ideal for remote work, NAS deployments, virtualization, and professional server workflows. | Enterprise Security & Industrial Connectivity: Protect your data with hardware-based dTPM 2.0 and a Kensington Lock slot. Windows 11 comes preinstalled, while VESA mount support and integrated RS232/RS485 ports make it ideal for professional workstations, edge AI deployments, industrial integration, and specialized commercial applications. |
| Overview | GEEKOM IT13 Max AI Mini PC packs Intel Core Ultra 9, 64GB DDR5 RAM & 8K output into a compact design. Ultimate performance for work, content & AI tasks. |
| Warranty | 3-Year Warranty |
| Configurations | U9-185H | 24GB LPDDR5 RAM | 500GB SSD | U9-185H | 16GB DDR5 SODIMM RAM | 1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
