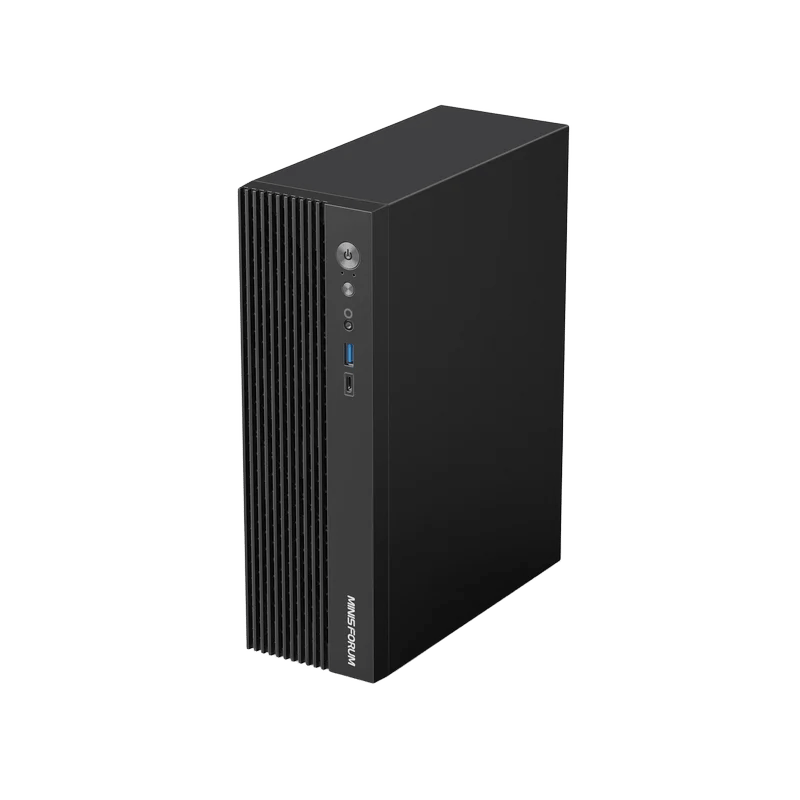

MINISFORUM 795S7
The Minisforum 795S7 is a compact 7L mini PC powered by an AMD Ryzen 9 7945HX processor with 16 cores and 32 threads. It comes with 32GB DDR5 RAM and a 1TB PCIe 4.0 SSD, supports up to 96GB RAM, low-profile discrete GPUs, and includes a built-in 240W PSU, 2.5GbE LAN, WiFi 6E, and dual display outputs via HDMI 2.1 and DisplayPort 1.4.
Pros
- +Powerful Ryzen 9 7945HX CPU
- +Supports up to 96GB RAM
- +PCIe 5.0 x16 low-profile GPU slot
- +Dual M.2 PCIe 4.0 SSD slots
- +Triple display support
- +2.5Gb Ethernet and WiFi 6E
Cons
- −No operating system included
- −Entry-level Radeon 610M integrated graphics
| Model | 795S7 |
| Processor | AMD Ryzen™ 9 7945HX (795S7) |
| Processor Model | Ryzen 9 7945HX |
| Processor Technology | 5nm (Zen 4) |
| Processor Package | BGA (Socket FL1) |
| Chipset | AMD (integrated) |
| Graphics | AMD Radeon 610M (integrated); optional discrete GPU via PCIe slot (e.g., RTX 4060) |
| Memory | 32GB |
| Memory Slots | 2 SO-DIMM slots, max 96GB |
| Storage | 1TB |
| Storage Expansion | 2x M.2 2280 PCIe 4.0 slots |
| Display Support | Triple display via HDMI 2.1, DisplayPort 1.4, USB-C DP Alt Mode; max resolution 3840x2160 |
| Network | 2.5Gb Ethernet, WiFi 6E, Bluetooth |
| Wireless | WiFi 6E |
| Ethernet | 2.5Gb Ethernet, 1 port |
| I/O Ports | Front: 1x USB 3.2 Gen1 Type-A, 1x USB 2.0 Type-C, 1x 3.5mm audio combo; Rear: 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C (DP Alt), 2x USB 2.0 Type-A, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x 2.5Gb RJ45 |
| Front I/O | 1x USB 3.2 Gen1 Type-A, 1x USB 2.0 Type-C, 1x 3.5mm audio combo |
| Rear I/O | 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C (DP Alt), 2x USB 2.0 Type-A, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x 2.5Gb RJ45 |
| Dimensions | 95 mm x 225 mm x 298 mm (3.74 in x 8.86 in x 11.73 in) |
| Form Factor | SFF (Small Form Factor) / Mini PC |
| Power | US |
| Power Options | US adapter |
| Operating System | None (Barebone) |
| Operating System Options | Windows 11, Linux |
| Audio | 3.5mm headphone/microphone combo jack |
| Expansion Slots | 1x PCIe 5.0 x16 slot (for low-profile GPU), 2x M.2 2280 PCIe 4.0 for SSD, 1x M.2 2230 Key E for WiFi |
| Package Contents | 795S7 SFF Desktop PC (barebone), power cord, manual |
| Features | Supports low-profile GPU, up to 96GB RAM, triple display, 2.5GbE, PCIe 5.0 x16 slot, built-in PSU |
| Overview | Build a future-proof commercial rig with the 7L MINISFORUM Mini PC 795S7. Upgraded with an R9 7945HX (5.4GHz), 96GB RAM, built-in PSU, and low-profile GPU support. |
| Configurations | BAREBONE | 32GB RAM + 1TB SSD+GPU RTX4060 |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
