MINISFORUM UN1250

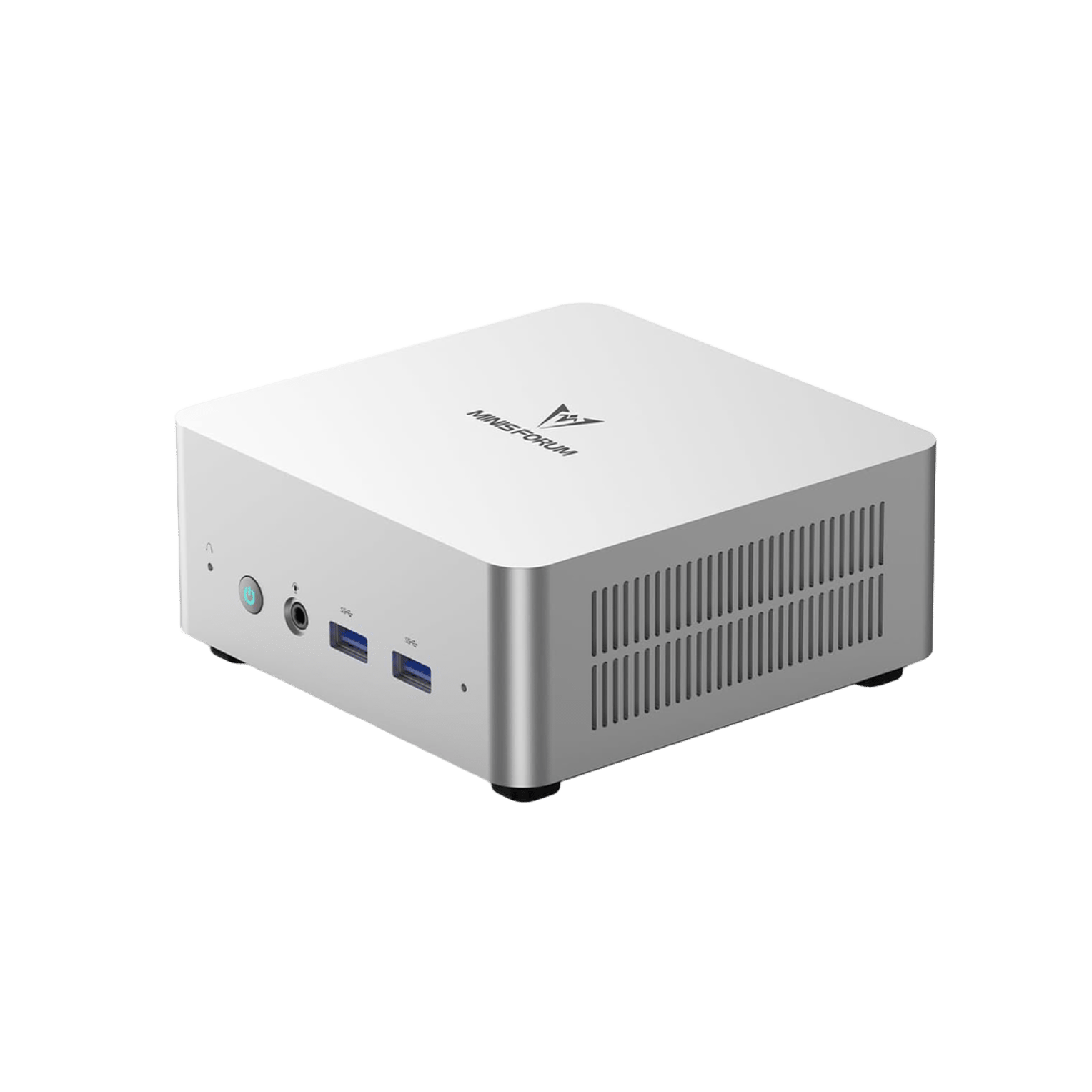

The Minisforum UN1250 is a compact 0.9L mini PC featuring an Intel Core i5-1250P processor with 12 cores and 16 threads. It includes 16GB DDR5 RAM (upgradeable to 64GB) and an M.2 PCIe 4.0 NVMe SSD plus a 2.5-inch SATA bay. Graphics are Intel Iris Xe with support for triple 4K displays via HDMI, DisplayPort, and USB-C. Connectivity offers 2.5Gb Ethernet, WiFi 6E, and Bluetooth 5.2. Power is via USB-C PD. Ships with Windows 11 Pro.
Pros
- +12-core/16-thread CPU
- +Intel Iris Xe graphics
- +Triple 4K display output
- +2.5G Ethernet and WiFi 6E
- +PCIe 4.0 NVMe SSD support
- +2.5-inch SATA drive expansion
Cons
- −No SD card slot
- −Only two USB-A ports
- −No Thunderbolt or USB4
| Model | UN1250 |
| Processor | Intel Core i5-1250P (12 cores, 16 threads, up to 4.4 GHz, 18MB cache) |
| Processor Model | Intel Core i5-1250P |
| Processor Technology | Intel 7 (10nm Enhanced SuperFin) |
| Processor Package | BGA1744 |
| Chipset | Intel SoC integrated |
| Graphics | Intel Iris Xe Graphics (80 EUs, up to 1.4 GHz) |
| Memory | 16GB DDR5 (dual channel, soldered? or SO-DIMM? likely dual-channel DDR5-4800, but unknown form factor; assume SO-DIMM) |
| Memory Slots | 2 (max 64GB) |
| Storage | M.2 2280 PCIe 4.0 NVMe SSD (500GB or 1TB) |
| Storage Expansion | 1x 2.5-inch SATA 3.0 HDD/SSD slot |
| Display Support | 3 displays: HDMI 2.0 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), USB-C (Alt DP, 4K@60Hz) |
| Network | 2.5 Gigabit Ethernet, WiFi 6E, Bluetooth 5.2 |
| Wireless | WiFi 6E (802.11ax) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 1x 2.5 Gigabit Ethernet (RJ45) |
| I/O Ports | 1x USB-C (USB 3.2 Gen2, Alt DP, PD), 2x USB-A (USB 3.2 Gen2), 1x HDMI 2.0, 1x DisplayPort 1.4, 1x 3.5mm combo audio jack, 1x DMIC (digital microphone), 1x Clear CMOS button |
| Front I/O | 1x USB-C, 1x USB-A, 1x 3.5mm combo jack, power button |
| Rear I/O | 1x HDMI, 1x DisplayPort, 1x USB-A, 1x RJ45, 1x DMIC, 1x Clear CMOS |
| Dimensions | 128mm x 128mm x 55mm (approx, 0.9L) |
| Color / Finish | Black |
| Form Factor | Mini PC (NUC-like) |
| Power | USB-C PD (65W or 100W adapter included) |
| Power Options | US, EU, UK, JP plugs (region dependent) |
| Cooling | Active cooling (fan + heatsink) |
| Operating System | Windows 11 Pro (pre-installed) |
| Operating System Options | Windows 11 Home, Linux (Ubuntu, etc.) |
| Audio | 3.5mm combo audio jack, HDMI audio output, digital microphone (DMIC) |
| Expansion Slots | 1x M.2 2280 (PCIe 4.0 x4) for SSD, 1x 2.5-inch SATA bay |
| Environmental | Operating temperature: 0°C to 35°C, storage: -20°C to 60°C, humidity: 10% to 90% non-condensing |
| Security | TPM 2.0 (firmware), Kensington lock slot |
| Support Included | 1-year limited warranty, online support |
| Certifications | CE, FCC, RoHS |
| Package Contents | Mini PC UN1250, power adapter, HDMI cable, user manual, VESA mount (optional) |
| Kensington Lock | Yes |
| Features | Intel Iris Xe Graphics, AV1 hardware decoding, PCIe 4.0 support, triple 4K display output, USB-C PD power, 2.5G LAN, WiFi 6E, compact 0.9L chassis |
| Overview | Experience big power in a 0.9L body with the MINISFORUM Mini PC UN1250. Features Intel Xe graphics, AV1 decoding, efficient cooling, rich ports, and PD power. |
| Warranty | 1-year limited warranty |
| Configurations | 16GB RAM + 500GB SSD, 16GB RAM + 1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
