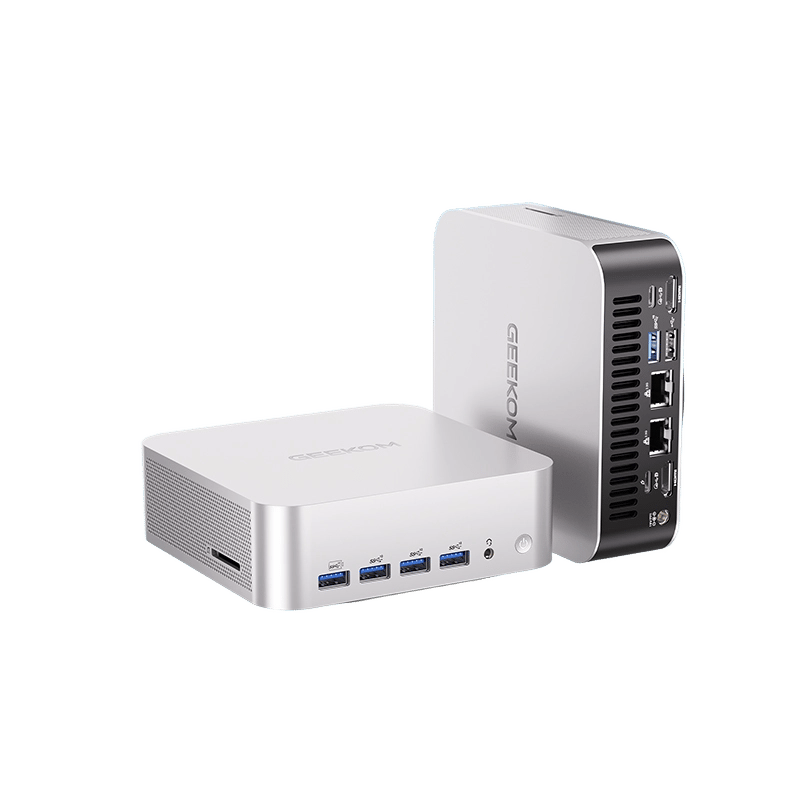

A9 Max 2026 Edition
The Geekom A9 Max 2026 Edition is a mini PC powered by AMD Ryzen AI 9 HX 470 or HX 370 processors (12 cores, up to 5.2 GHz). It features AMD Radeon 890M graphics, an XDNA 2 NPU with up to 55 TOPS, and total AI performance up to 86 TOPS. Supports up to 128 GB DDR5 RAM, dual M.2 PCIe 4.0 storage (up to 8 TB), and up to four 4K or one 8K display via dual HDMI 2.1
Pros
- +Powerful AMD Ryzen AI 9 processor
- +Up to 86 TOPS AI performance
- +Fast Radeon 890M integrated graphics
- +Up to 128GB DDR5 RAM
- +Dual PCIe 4.0 NVMe SSD slots
- +Dual 2.5GbE LAN ports
| Model | A9 Max 2026 Edition |
| Processor | AMD Ryzen™ AI 9 HX 470 or HX 370 (up to 54W TDP, Zen 5, XDNA 2) |
| Processor Model | AMD Ryzen AI 9 HX 470 / HX 370 |
| Processor Technology | Zen 5, XDNA 2 |
| Processor Package | Socket FP8 |
| Graphics | AMD Radeon™ 890M | AMD Radeon™ 890M (16 CUs, RDNA 3.5) |
| NPU / AI Accelerator | XDNA 2 engine, up to 55 TOPS NPU, total AI 86 TOPS (HX 470) / 80 TOPS (HX 370) |
| Memory | Up to 128GB DDR5 (dual-channel SODIMM) |
| Memory Slots | 2 SODIMM slots, max 128GB |
| Storage | Dual M.2 PCIe 4.0 NVMe SSD slots (2280 + 2230), up to 8TB total |
| Storage Expansion | Dual M.2 slots, up to 8TB total |
| Display Support | Up to 4 displays at 4K or single 8K | 2× HDMI 2.1 (4K@120Hz), supports up to 4 displays (4K) or 1 display (8K) | Up to 4× 4K@60Hz or 1× 8K@60Hz via dual HDMI 2.1 and dual USB4 |
| Network | Dual 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4 |
| Wireless | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| Ethernet | Dual 2.5GbE LAN | Dual 2.5GbE RJ45 |
| I/O Ports | 3 x USB 3.2 Gen 2 Type-A | 1 x USB 2.0 Type-A | 2 x USB4 | 1 x 3.5mm stereo headset jack | 2 x 2.5G RJ45 | 2 x HDMI 2.1 FRL (back panel) | 1 x DC in | 1 x Power Button | 1 x Kensington Lock | 1 x SD Card Reader 4.0 | 2× USB4 (40Gbps, DP-Alt, PD-in), 2× HDMI 2.1, 5× USB 3.2 Gen 2 Type-A, 1× USB 2.0, 2× 2.5GbE RJ45, 3.5mm headphone jack, SD 4.0 card reader, Kensington lock |
| SD Card | Yes |
| Dimensions | 5.31" x 5.20" x 1.85" | All-metal inner frame, full-metal shell, VESA mount compatible |
| Color / Finish | Silver |
| Form Factor | Mini PC |
| Power | 120W, 19V power adapter |
| Power Options | Region-specific IEC C5 AC cord |
| Cooling | IceBlast 3.0 (large copper heatsink, dual heat pipes, quiet fan) |
| Operating System | Windows 11 Pro pre-installed |
| Operating System Options | Linux compatible |
| Audio | 3.5mm headphone jack |
| Expansion Slots | Dual M.2 slots (2280 + 2230) for SSD, one M.2 for Wi-Fi |
| Security | Kensington lock, dTPM 2.0 |
| Support Included | 3-Year Warranty |
| Certifications | Reddot Winner 2026, 339 quality tests |
| Kensington Lock | Yes |
| Features | Reddot Winner 2026 | Best Value Copilot+ PC | 80 TOPS AI | Dual USB4 | Wi-Fi 7 & Dual 2.5G LAN | 128GB Expandable RAM. | Flagship AI & AAA Gaming Performance: Driven by the AMD Ryzen TM AI 9 HX 470 or HX 370 processors (up to 54W TDP) featuring the powerhouse Zen 5 and XDNA TM 2 architectures. Delivering up to 86 combined TOPS for seamless local AI deployment (Copilot+, local LLMs) and Radeon TM 890M graphics that rival discrete GPUs-powering high-frame 1080p AAA gaming and intensive 3D rendering. | Limitless 128GB DDR5 & Dual NVMe: Break free from the constraints of soldered memory. The A9 Max supports a staggering 128GB of upgradeable DDR5 RAM, critical for running massive AI datasets and heavy professional multitasking. Scale your project storage up to 8TB via dual PCIe 4.0 SSD slots (2280 + 2230). | Pro-Grade Connectivity Ecosystem: Engineered for elite workstation setups. Dual 40Gbps USB4 ports (eGPU ready) and dual HDMI 2.1 drive four 4K displays simultaneously, or a single 8K cinematic monitor. Features Dual 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4, and a high-speed SD 4.0 reader for high-bandwidth, professional workloads. | IceBlast 3.0 Cooling & All-Metal Frame: Sustain peak 54W performance without thermal throttling. The proprietary IceBlast 3.0 system utilizes a massive copper module and dual heat pipes for whisper-quiet acoustics. Encased in a precision-crafted all-metal inner frame for superior heat dissipation and structural integrity. | Enterprise-Grade Reliability: Ready for mission-critical deployment. Pre-installed with Windows 11 Pro (Linux compatible) and validated through 339 rigorous quality tests. Backed by our premium 3-Year Warranty, the A9 Max is engineered to deliver 5+ years of stable, 24/7 operation for power users and businesses alike. |
| Overview | Experience the GEEKOM A9 Max AI AMD Mini PC with Ryzen AI 9 HX 370, delivering exceptional speed, smart AI features, and compact design for any workspace. |
| Warranty | 3-Year Warranty |
| Configurations | Ryzen AI 9 HX 370 32 GB RAM + 1 TB SSD | Ryzen AI 9 HX 370 32 GB RAM + 2 TB SSD | Ryzen AI 9 HX 470 32 GB RAM + 2 TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
