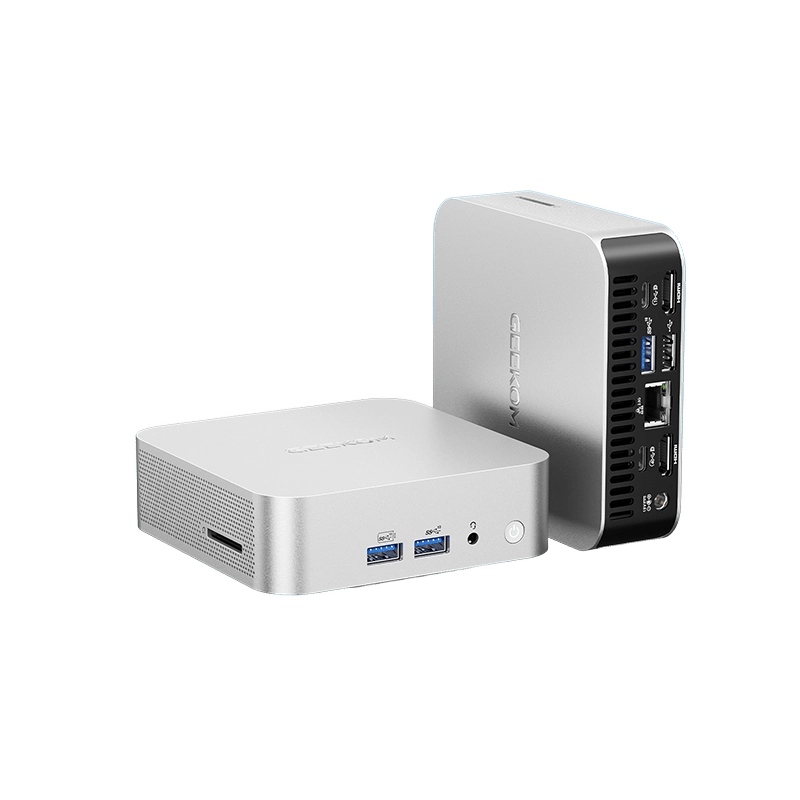

A5 Pro
The A5 Pro Mini PC features a 7nm AMD Ryzen 5 7430U processor with 6 cores and 12 threads, Radeon Graphics, up to 64GB DDR4 RAM, and dual storage options (M.2 NVMe/SATA and 2.5" SATA). Connectivity includes WiFi 6, Bluetooth 5.2, 2.5GbE LAN, and support for up to 4 displays via HDMI and USB-C. It runs Windows 11 Pro and measures 4.61 x 4.41 x 1.94 inches.
Pros
- +AMD Ryzen 5 7430U 6-core processor
- +Supports up to 64GB DDR4 RAM
- +Dual M.2 SSD slots
- +2.5GbE Ethernet and Wi-Fi 6
- +Quad 4K display support
- +Compact 0.47L aluminum design
| Model | A5 Pro |
| Processor | AMD Ryzen™ 5 7430U | AMD Ryzen™ 5 7430U (6 Cores, 12 Threads, 16MB Cache, 2.0 GHz ~ 4.3 GHz) |
| Processor Model | Ryzen 5 7430U |
| Graphics | AMD Radeon TM Graphics | Radeon™ Vega 7 Graphics |
| Memory | Dual-channel DDR4 SODIMM, up to 64GB |
| Memory Slots | 2 (Dual-channel, max 64GB) |
| Storage | 1 x M.2 2280 PCle Gen3*4 ssD up to 2TB 1 xM.2 2242 SATAII SSD, up to 1TB |
| Storage Expansion | 2 M.2 slots (2280 PCIe Gen3 x4, 2242 SATA II) |
| Display Support | Up to 4 displays: 2x HDMI 2.0 (4K@60Hz), 2x USB-C (DisplayPort Alt Mode, 4K@60Hz) |
| Network | 2.5GbE RJ45, Wi-Fi 6, Bluetooth 5.2 |
| Wireless | WiFi 6 |
| Bluetooth | Bluetooth® 5.2 |
| Ethernet | 2.5GbE RJ45, 1 port |
| I/O Ports | 3 x USB 3.2 Gen 2 Type-A | 2 x USB 3.2 Gen 2 Type-C | 1 x USB 2.0 Type-A | 2 x HDMI 2.0b ports | 1 x 3.5 mm headphone jack | 1 x SD card reader | 3 × USB 3.2 Gen 2 Type-A 2 × USB 3.2 Gen 2 Type-C 1 × USB 2.0 Type-A 2 × HDMI 2.0 1 × 3.5 mm headphone jack 1 × 2.5G RJ45 LAN 1 × SD Card Reader 1 × DC in 1 × Power button |
| Front I/O | 2x USB 3.2 Gen 2 Type-A (one with power delivery), 1x 3.5mm audio jack, 1x Power button |
| Rear I/O | 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 2 Type-C, 1x USB 2.0 Type-A, 2x HDMI 2.0, 1x 2.5G RJ45 LAN, 1x SD card reader, 1x DC in |
| SD Card | SD card reader (full-size) |
| Dimensions | 4.61" x 4.41" x 1.94" |
| Weight | 652 g |
| Form Factor | 4.43" × 4.43" × 1.46" |
| Power | 65 W, 19V/3,42A |
| Cooling | Dual copper heat pipes, IceBlast 3.0 intelligent fan control |
| Operating System | Windows 11 Pro |
| Operating System Options | Ubuntu Linux, VMware ESXi, Proxmox VE |
| Audio | 3.5mm headphone jack, digital audio via HDMI |
| Expansion Slots | 2x M.2 slots (2280 PCIe Gen3 x4, 2242 SATA II) |
| Security | Kensington lock slot |
| Package Contents | 1x A5 Pro Mini PC, 1x VESA Mount, 1x Power Adapter, 1x HDMI Cable, 1x User Guide, 1x Thank You Card |
| Kensington Lock | Yes |
| Features | Up to 64GB RAM and 3TB SSD - Supports two SSDs (M.2 2280 and 2242) for speed, capacity, and responsiveness in demanding environments | Comprehensive and versatile connectivity - 6 USB ports, HDMI 2.0, SD card reader, headphone jack; 2.5Gbps Ethernet, Wi-Fi 6, and Bluetooth 5.2, for everything you need | Quiet and efficient cooling - Dual copper heat pipes for 52% more efficient cooling than conventional systems | Windows 11 Pro with Copilot AI - Pre-installed, ready to use, and compatible with Linux and other operating systems | Ultra-compact and elegant design - Only 0.47L in volume, aluminum casing, and VESA mount to blend into any space | Proven reliability - Passed 339 tests to ensure stable operation for over 5 years |
| Overview | Shop the GEEKOM A5 Pro Mini PC. Computing with AMD Ryzen 5 power has never been this sleek. Enjoy elite performance, 16GB RAM & fast US shipping! |
| Configurations | A5 Pro R5-7430U 16 GB RAM + 512 GB SSD | A5 Pro R5-7430U 16 GB RAM + 1 TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
