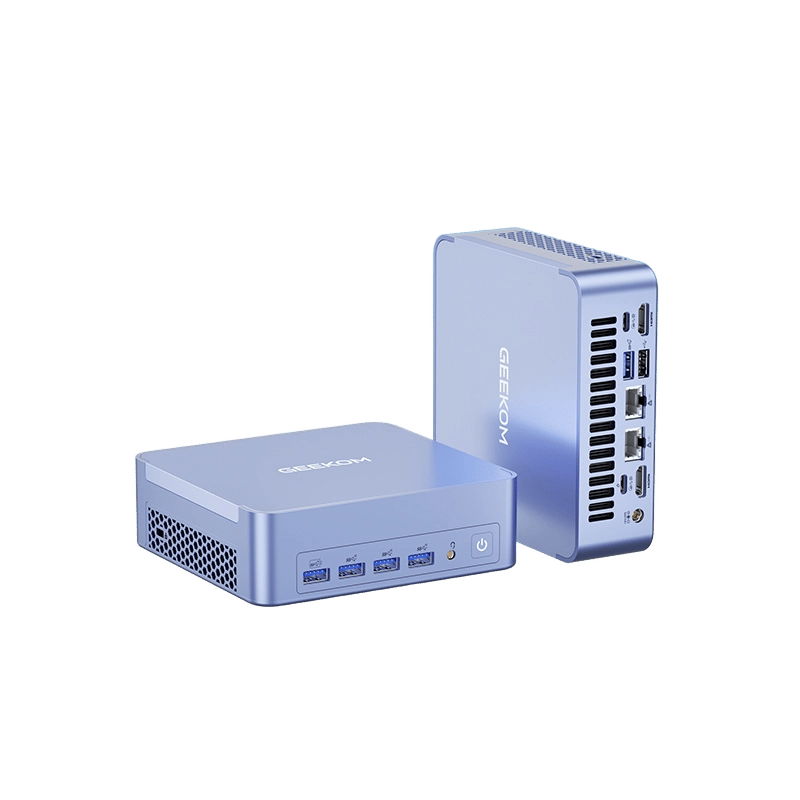

AX8 Max
The Geekom AX8 Max Mini PC is powered by an AMD Ryzen 7 8745HS processor with Radeon 780M graphics. It supports up to 64GB DDR5 RAM, M.2 PCIe 4.0 storage, dual 2.5GbE LAN, Wi-Fi 6E, and up to four displays including 8K via USB4. It runs Windows 11 Pro and features IceBlast 2.0 cooling. Dimensions: 5.2 x 5.2 x 1.81 inches.
Pros
- +AMD Ryzen 7 8745HS processor
- +DDR5 memory up to 64GB
- +Dual M.2 slots plus SATA expansion
- +Supports 8K or quad 4K displays
- +Dual 2.5GbE LAN ports
- +Wi-Fi 6E and Bluetooth 5.2
| Model | AX8 Max |
| Processor | AMD Ryzen™ 7 8745HS (8C/16T, 16MB L3, 3.8-4.9 GHz, TDP 54W) |
| Processor Model | Ryzen 7 8745HS |
| Processor Technology | Zen 4 |
| Graphics | AMD Radeon™ 780M |
| Memory | High Speed DDR5 SODIMM, up to 64 GB |
| Memory Slots | 2 |
| Storage | M.2 2280 PCIe 4.0 × 4, up to 2 TB |
| Storage Expansion | 1 × M.2 Key-M slot (PCIe 4.0 ×4 / SATA), 1 × M.2 Key-B slot (SATA), 1 × 16-pin FPC SATA connector (supports 2.5″ SATA) |
| Display Support | Up to four 4K monitors or one 8K display via dual USB4 and HDMI 2.0 |
| Wireless | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual RJ45 10/100/1000/2500 Mbps |
| I/O Ports | 1 × USB 3.2 Gen 2 Type-A (rear) 1 × USB 2.0 Type-A (rear) 3 × USB 3.2 Gen 2 Type-A (front) 1 × USB 3.2 Gen 2 Type-A (Always On) 1 × USB 4.0 Type-C (PD in, back) 1 × USB 4.0 Type-C (PD, back) 1 × 3.5mm stereo headset jack 2 × RJ45 (2.5GbE) 2 × HDMI 1 × DC in 1 × Power button 1 × Kensington Lock | Dual 40Gbps USB4, HDMI 2.0, 8 USB ports, dual 2.5Gbps LAN, RS232/485 |
| Front I/O | 3 × USB 3.2 Gen 2 Type-A (front), 1 × USB 3.2 Gen 2 Type-A (Always On) |
| Rear I/O | 1 × USB 3.2 Gen 2 Type-A (rear), 1 × USB 2.0 Type-A (rear), 1 × USB 4.0 Type-C (PD in, back), 1 × USB 4.0 Type-C (PD, back), 2 × RJ45 (2.5GbE), 2 × HDMI, 1 × DC in |
| Dimensions | 5.20 × 5.20 × 1.81 inches |
| Weight | 545 grams |
| Form Factor | Mini PC |
| Power | 19V / 120W power supply with geo-specific AC cord (IEC C5) |
| Cooling | IceBlast 2.0 dual copper heat pipes (52% higher thermal efficiency) |
| Operating System | Windows 11 Pro 23H2 (64-bit, supports Modern Standby) |
| Operating System Options | Linux compatible |
| Audio | HDA CODEC |
| Expansion Slots | 1 × M.2 Key-M slot (PCIe 4.0 ×4 / SATA), 1 × M.2 Key-B slot (SATA), 1 × M.2 2230 for Wi-Fi PCIe |
| Security | DTPM 2.0 supported, Kensington Lock |
| Certifications | CE, FCC, CB, CCC, SRRC, RoHS |
| Kensington Lock | Yes |
| Features | Pro Power. Ultra-Compact. Industrial Grade. | Desktop-Class Ryzen TM 7 Performance: Powered by the AMD R7-8745HS (Zen 4) and Radeon TM 780M Graphics. Experience workstation-grade speed for 4K video editing, 3D rendering, and 1080p gaming in a palm-sized form factor. | Fully Upgradeable & Future-Proof: Skip the "soldered RAM" trap. Dual DDR5 SODIMM slots (up to 64GB) and M.2 PCIe 4.0 storage (up to 2TB) give you the freedom to scale as your demands grow. | Stunning 8K & Quad-Display Support: Maximize your workspace by driving up to four 4K monitors at once-or a single, breathtaking 8K display-via dual 40Gbps USB4 and HDMI 2.0 ports. | Dual 2.5G Networking & Wi-Fi 6E: Optimized for IT pros and power users. Dual 2.5Gbps LAN ports allow for dedicated firewalling or NAS bridging, while Wi-Fi 6E provides ultra-low-latency wireless connectivity. | Massive I/O - 8 USB Ports: Connect your entire ecosystem without dongles. Includes 8 dedicated USB ports and legacy RS232/485 support, making it the ultimate hub for both office and industrial setups. | IceBlast 2.0 Silent Cooling: Advanced dual copper heat pipes deliver 52% higher thermal efficiency. Stay cool and whisper-quiet even during sustained, full-throttle professional workloads. | Industrial-Grade Metal Chassis: Engineered for 24/7 reliability. The reinforced metal frame withstands 200kg of pressure and has passed 339 quality tests to ensure 5+ years of continuous performance. | Windows 11 Pro & Linux Ready: Pre-installed Windows 11 Pro with AI Copilot for immediate productivity. Fully Linux compatible, with DTPM 2.0 security and Kensington Lock-perfect for developers, enterprises, and specialized applications. |
| Overview | GEEKOM AX8 Max powered by Ryzen 7 8745HS, 8K display support, ultra-fast DDR5 storage, rich connectivity-built for pro, industrial, and light AI-ready workloads. |
| Warranty | 3-Year Limited Warranty |
| Configurations | R7-8745HS 16 GB RAM + 1 TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
