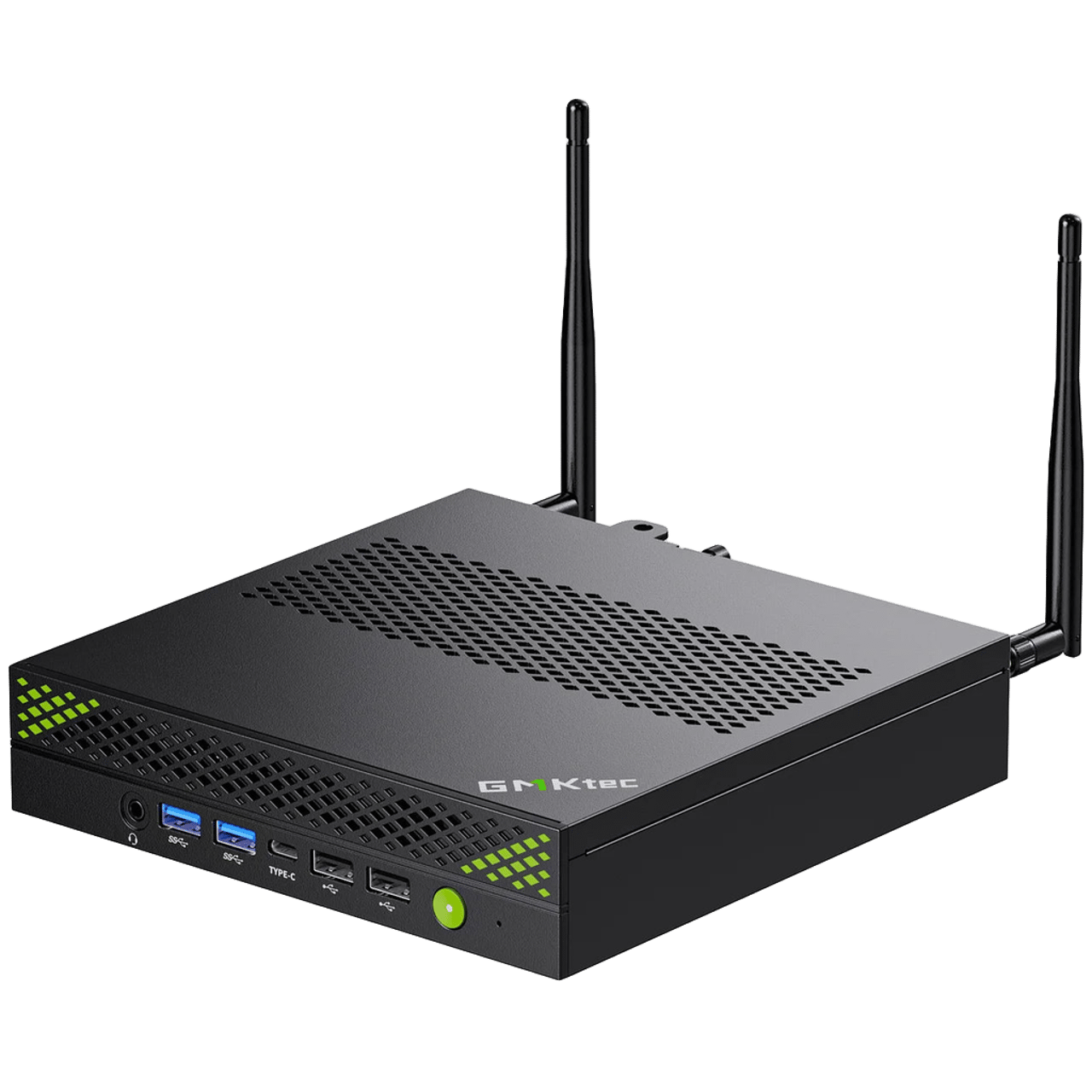

GMKtec K10 Mini PC Intel® 13th Core™ i9-13900HK
The GMKtec NucBox K10 is a mini PC with an Intel Core i9-13900HK (14 cores, up to 5.4GHz), Intel Iris Xe graphics, dual DDR5 SO-DIMM slots (up to 96GB), three M.2 2280 NVMe slots (up to 12TB total), Wi-Fi 6, Bluetooth 5.2, 2.5GbE LAN, and quad display support via 2x HDMI, DP, and USB-C. Dimensions: 188.6 x 178 x 38.9 mm. Ships with Windows 11 Pro.
Pros
- +Powerful 14-core i9-13900HK CPU
- +DDR5 memory supports up to 96GB
- +Triple M.2 slots up to 12TB
- +Wi-Fi 6 and 2.5GbE LAN
- +Quad display output with 8K support
- +Compact mini PC design
Cons
- −No USB-C PD charging
- −HDMI 2.0 limited to 4K60
- −No SD card slot
- −No NPU for AI acceleration
- −M.2 2242 not supported
| Model | GMKtec NucBox K10 |
| Processor | 13th Gen Intel® Core™ i9 Processor, 14 Cores, 20 Threads Intel 7 Process Max Turbo Frequency up to 5.4GHz 24MB Intel® Smart Cache TDP 45W |
| Processor Model | Intel® Core™ i9-13900HK Processor |
| Processor Technology | Intel 7 |
| Processor Package | FCBGA1744 Package, 50 × 25 mm |
| Graphics | Intel® Iris® Xe Graphics eligible 96 Execution Units Up to 1.5GHz |
| NPU / AI Accelerator | No |
| Memory | 2 × SO-DIMM Slots DDR5 Memory 32GB / 64GB configurations Supports up to 96GB |
| Memory Slots | 2 |
| Storage | PCIe x4 NVMe M.2 2280 SSD 512GB / 1TB / 2TB options |
| Storage Expansion | 3 × M.2 2280 SSD slots Supports up to 4TB per slot Maximum total storage capacity: up to 12TB M.2 2242 not supported |
| Display Support | Quad display output via 2 × HDMI + DisplayPort + USB Type-C Supports up to 8K output via DP and Type-C |
| Network | Wi-Fi 6 (Intel AX201, up to 2.4Gbps), Bluetooth 5.2, 2.5G Ethernet LAN (Realtek RTL8125BG) |
| Wireless | Wi-Fi 6 (Intel AX201, up to 2.4Gbps) Bluetooth 5.2 2.5G Ethernet LAN (Realtek RTL8125BG) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 2.5G Ethernet LAN (Realtek RTL8125BG) |
| I/O Ports | USB-A Front: 2 × USB 3.2 + 2 × USB 2.0 USB-A Rear: 2 × USB 3.2 + 2 × USB 2.0 HDMI: 2 × HDMI 2.0 (up to 4K@60Hz) DisplayPort: 1 × DP 1.4 USB-C: 1 × Type-C (DP / Data, USB 3.2 Gen2, 10Gbps) Audio: 1 × 3.5mm CTIA Audio Jack COM: 1 × COM Port LAN: 1 × RJ45 2.5G Ethernet Power: 1 × DC IN (2.5 × 5.5mm) Lock Slot: 1 × Kensington Lock Slot Reset: 1 × Reset Hole |
| Front I/O | 2× USB 3.2 + 2× USB 2.0 |
| Rear I/O | 2× USB 3.2 + 2× USB 2.0, 2× HDMI, 1× DP, 1× USB-C, 1× COM, 1× LAN, 1× DC IN, 1× Kensington Lock, 1× Reset Hole |
| Dimensions | 188.6 × 178 × 38.9 mm |
| Weight | 1.065 kg |
| Color / Finish | Black |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 19V / 6.32A |
| Power Options | US, EU, UK, AU, JP |
| Cooling | Dual-fan Cooling System |
| Operating System | Windows 11 Pro / Linux Supported |
| Operating System Options | US, EU, UK, AU, JP |
| Audio | 1× 3.5mm CTIA Audio Jack |
| Expansion Slots | 3× M.2 2280 slots (2× PCIe 4.0 x4, 1× PCIe 3.0 x3) |
| Environmental | 0°C – 40°C |
| Security | Kensington Lock Slot |
| Support Included | Lifetime Technical Support |
| Certifications | CE, FCC, WEEE, CEC, CCC, RoHS |
| Package Contents | User Manual Warranty Card Power Adapter HDMI Cable |
| Kensington Lock | Yes |
| Features | The USB Type-C port supports video output and data transfer only. It does not support PD charging. | 15 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic, Italian, Dutch |
| Overview | GMKtec NucBox K10 Mini PC powered by Intel Core TM i9-13900HK processor (14 cores / 20 threads, up to 5.4GHz). Featuring Intel Iris Xe graphics, DDR5 memory up to 96GB, triple M.2 NVMe SSD expansion up to 12TB, WiFi 6, 2.5GbE LAN, and multi-display support via dual HDMI, DisplayPort, and Type-C (up to 4 screens). Designed for professional productivity, multitasking, content creation, and compact workstation setups. Ships with Windows 11 Pro and global warranty. |
| Warranty | 1-Year Limited Warranty / Lifetime Technical Support |
| Configurations | Barebone (No DDR & SSD & OS) | 32GB RAM+ 1TB SSD | 64GB RAM+ 1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
