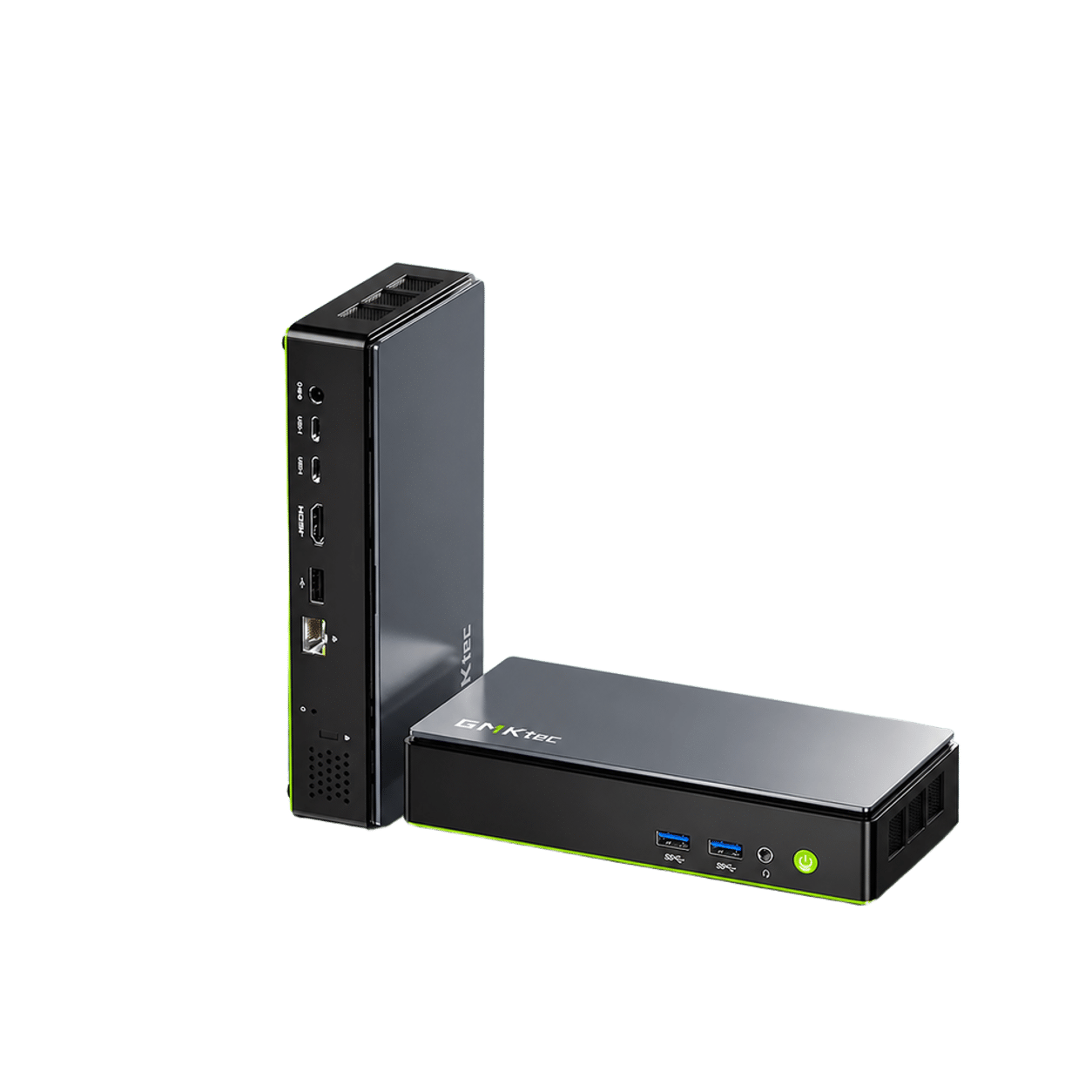

GMKtec NucBox K13 Mini PC Intel® Core™ Ultra 7 256V
GMKtec NucBox K13 mini PC with Intel Core Ultra 7 256V (8 cores, 2.2GHz base, 4.8GHz turbo), Intel Arc 140V GPU, Intel AI Boost NPU (up to 115 TOPS). 16GB LPDDR5X soldered RAM, dual M.2 PCIe 4.0 SSD slots (up to 16TB). Triple display via HDMI 2.1 and dual USB4. 5GbE LAN, Wi-Fi 6E, Bluetooth 5.2. Windows 11 Pro. Dimensions 186x88x36.6 mm. Priced $589-$739.
Pros
- +Up to 115 TOPS AI performance
- +Intel Arc 140V graphics
- +Dual USB4 with 40Gbps and 100W PD
- +Triple 4K display output support
- +5GbE Ethernet plus Wi-Fi 6E
- +Dual PCIe Gen4 NVMe slots up to 16TB
Cons
- −Non-upgradable soldered RAM
- −SATA SSDs not supported
| Model | GMKtec NucBox K13 |
| Processor | Intel® Core™ Ultra Processor (Series 2), 8 Cores, 8 Threads TSMC N3B Process Base Frequency 2.2GHz Performance-core Max Turbo up to 4.8GHz Low Power Efficient-core Max Turbo up to 3.7GHz 12MB Intel® Smart Cache Up to 115 TOPS (Int8) |
| Processor Model | Intel® Core™ Ultra 7 256V |
| Processor Technology | TSMC N3B Process |
| Processor Package | FCBGA2833 Package, TSMC N3B Process |
| Graphics | Intel® Arc™ 140V GPU Base Frequency 400MHz, Max Dynamic Frequency up to 1.95GHz Up to 64 TOPS (Int8) |
| NPU / AI Accelerator | Intel® AI Boost Up to 47 TOPS (Int8) |
| Memory | On-package LPDDR5X Memory 16GB configuration Up to 8533 MT/s Non-upgradable design |
| Memory Slots | 0 (soldered, non-upgradable) |
| Storage | PCIe 4.0 M.2 2280 SSD 512GB / 1TB / 2TB options |
| Storage Expansion | Dual SSD design 1 × M.2 2280 / 2242 PCIe Gen4 ×4 NVMe slot 1 × M.2 2280 PCIe Gen4 ×2 NVMe slot Supports up to 8TB per slot (Max 16TB) SATA SSD not supported |
| Display Support | Triple display output via HDMI + Dual USB4 Supports up to 4K resolution |
| Network | 5G Ethernet LAN, Wi-Fi 6E, Bluetooth 5.2 |
| Wireless | Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 5G Ethernet LAN |
| Bluetooth | 5.2 |
| Ethernet | 5GbE, 1 port, chipset RTL8126 |
| I/O Ports | USB-A: 2 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0 USB4: 2 × USB4 Full-Function Ports (40Gbps / PD 100W / DisplayPort 1.4) HDMI: 1 × HDMI 2.1 TMDS (4K@60Hz) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 1 × 5G RJ45 Ethernet Port Power: 1 × DC IN (5.5 / 2.5mm) Lock Slot: 1 × Security Lock Slot Power Button: 1 × Power Button Reset: 1 × Reset Button |
| Dimensions | 186 × 88 × 36.6 mm |
| Weight | 0.52 kg |
| Color / Finish | Gray Top Cover + Black Middle Frame + Green Bottom Cover |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 20V / 5A, 100W |
| Power Options | US, EU, UK, AU |
| Cooling | Super-Conductive CopperTurbo Fan Cooling |
| Operating System | Windows 11 Pro |
| Operating System Options | US, EU, UK, AU |
| Software Included | Built-in Cherry Studio support |
| Audio | 1 × 3.5mm CTIA Audio Jack |
| Expansion Slots | 1 × M.2 2280 / 2242 PCIe Gen4 ×4 NVMe slot, 1 × M.2 2280 PCIe Gen4 ×2 NVMe slot |
| Environmental | 0°C – 40°C |
| Security | Security lock slot |
| Certifications | CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |
| Package Contents | User Manual Warranty Card Power Adapter HDMI Cable VESA Mount |
| Kensington Lock | Yes, security lock slot |
| Features | 14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic | Built-in Cherry Studio support |
| Overview | GMKtec NucBox K13 AI Mini PC powered by Intel Core TM Ultra 7 256V processor (Series 2) with Intel Arc 140V graphics and integrated Intel AI Boost NPU delivering up to 115 TOPS AI performance. Equipped with LPDDR5X memory, dual PCIe NVMe SSD expansion up to 16TB, WiFi 6E, 5GbE LAN, and multi-display output via HDMI 2.1 and dual USB4 ports. Designed for AI computing, creative workloads, multitasking, and modern office productivity. Supports Windows 11 Pro and advanced connectivity for next-generation mini desktop performance. |
| Warranty | 1-Year Limited Warranty |
| Configurations | 16GB RAM+ 512GB SSD | 16GB RAM+ 1TB SSD | 16GB RAM+ 1TB SSD(Z.AI 3-Month Coding Plan) |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
