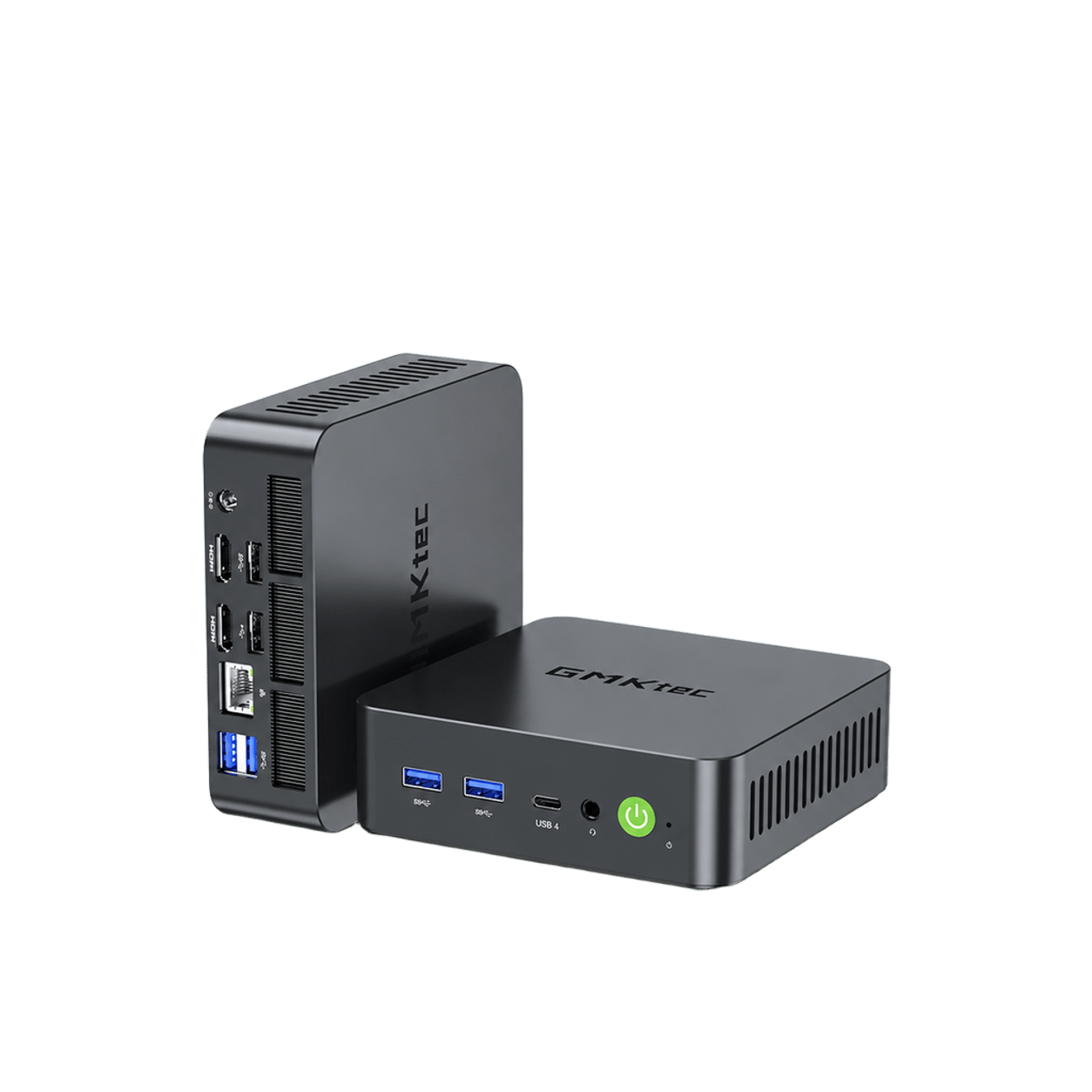

GMKtec NucBox K17 Mini PC Intel® Core™ Ultra 5 226V
GMKtec NucBox K17 mini PC features Intel Core Ultra 5 226V with 8 cores, up to 4.5GHz, and 97 TOPS AI performance. It includes 16GB LPDDR5X onboard RAM, dual M.2 slots (PCIe Gen5/Gen4), Intel Arc 130V graphics, triple 8K display support, 2.5G Ethernet, Wi-Fi 6E, and Windows 11 Pro.
Pros
- +Up to 97 TOPS AI performance
- +Dual M.2 slots with PCIe Gen5
- +Triple 8K display support
- +2.5G Ethernet and Wi-Fi 6E
- +USB4 with PD and DP
- +Compact and lightweight design
Cons
- −Non-upgradable onboard memory
- −SATA SSD not supported
- −No OCuLink support
| Model | NucBox K17 |
| Processor | Intel® Core™ Ultra 5 226V Processor 8 Cores / 8 Threads TSMC N3B Process Base Frequency 2.1GHz Max Turbo: P-core 4.5GHz / E-core 3.5GHz 8MB Intel® Smart Cache Up to 97 TOPS (AI Performance) TDP Modes: 20W / 25W / 35W (Peak 37W) Dual heat pipes + single fan (Low noise design) |
| Processor Model | Intel® Core™ Ultra 5 226V |
| Processor Technology | TSMC N3B Process |
| Graphics | Intel® Arc™ 130V Graphics Base 400MHz, Boost up to 1.85GHz Up to 53 TOPS (AI Performance) |
| NPU / AI Accelerator | Intel AI Boost NPU, up to 40 TOPS |
| Memory | LPDDR5X Memory (Onboard) 16GB Standard Configuration Up to 8533 MT/s Non-upgradable |
| Memory Slots | 0 (onboard) |
| Storage | PCIe 4.0 M.2 2280 NVMe SSD 512GB / 1TB / 2TB Options |
| Storage Expansion | 2 × M.2 Slots Supported 1 × PCIe Gen5 x4 NVMe 1 × PCIe Gen4 x2 NVMe Maximum Expansion up to 16TB (8TB ×2) SATA SSD Not Supported |
| Display Support | Supports up to 3 Displays 2 × HDMI 2.1 1 × USB4 Supports up to 8K Resolution |
| Network | 2.5G Ethernet LAN, Wi-Fi 6E, Bluetooth 5.2 |
| Wireless | Wi-Fi 6E (up to 2.4Gbps) Bluetooth 5.2 2.5G Ethernet LAN |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 2.5G Ethernet LAN, 1 port, Intel i226-V controller |
| I/O Ports | Front: 1 × USB 3.2 Gen2 (10Gbps) 1 × USB 3.2 Gen1 (5Gbps) 1 × USB4 (40Gbps / PD / DP) 1 × 3.5mm Audio Jack Rear: 3 × USB 3.2 Gen1 (5Gbps) 1 × USB 2.0 2 × HDMI 2.1 1 × RJ45 2.5G LAN 1 × DC Power Input |
| Front I/O | 1 × USB 3.2 Gen2 (10Gbps), 1 × USB 3.2 Gen1 (5Gbps), 1 × USB4 (40Gbps / PD / DP), 1 × 3.5mm Audio Jack |
| Rear I/O | 3 × USB 3.2 Gen1 (5Gbps), 1 × USB 2.0, 2 × HDMI 2.1, 1 × RJ45 2.5G LAN, 1 × DC Power Input |
| Dimensions | 127.5 × 127 × 44.5 mm |
| Weight | 0.46 kg |
| Form Factor | Mini PC (NUC-style) |
| Power | DC 20V / 5A 100W Adapter |
| Power Options | US, EU, UK, AU |
| Cooling | Dual heat pipes + single fan (Low noise design), superconducting copper turbine fan, dual air intake |
| Operating System | Windows 11 Pro Supported |
| Operating System Options | US, EU, UK, AU |
| Audio | 1 × 3.5mm Audio Jack (headphone/microphone combo) |
| Expansion Slots | 2 × M.2 2280 slots (1x PCIe Gen5 x4, 1x PCIe Gen4 x2) |
| Environmental | Operating Temperature: -10°C to 45°C, Storage Temperature: -20°C to 60°C, Humidity: 30% to 85% operating, 10% to 90% storage |
| Package Contents | Mini PC Power Adapter HDMI Cable VESA Mount User Manual |
| Features | This model does not support OCulink. |
| Overview | GMKtec NucBox K17 is powered by Intel Core TM Ultra 5 226V processor, integrated with Intel Arc TM 130V GPU and Intel AI Boost NPU delivering up to 53 TOPS (GPU) and 40 TOPS (NPU) AI performance. It comes with 16GB LPDDR5X high-speed memory and dual M.2 2280 SSD slots supporting up to 16TB storage with PCIe 4.0 (and PCIe 5.0 compatible) for ultra-fast expansion. The device features 2.5G Ethernet, WiFi 6E, and Bluetooth 5.2 for high-speed connectivity, and supports up to triple 8K display output. Designed with an advanced cooling system (superconducting copper turbine fan + dual air intake), it ensures stable performance under load. It also includes a full-function USB4 port (40Gbps, PD 100W, DP 4K@60Hz) and comes pre-installed with Windows 11 Pro, making it a powerful and compact AI mini PC solution for professional workloads. |
| Warranty | 1 Year Limited |
| Configurations | 16GB RAM+512GB SSD | 16GB RAM+1TB SSD | 16GB RAM+1TB SSD (Z.AI 3-Month Coding Plan) |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
