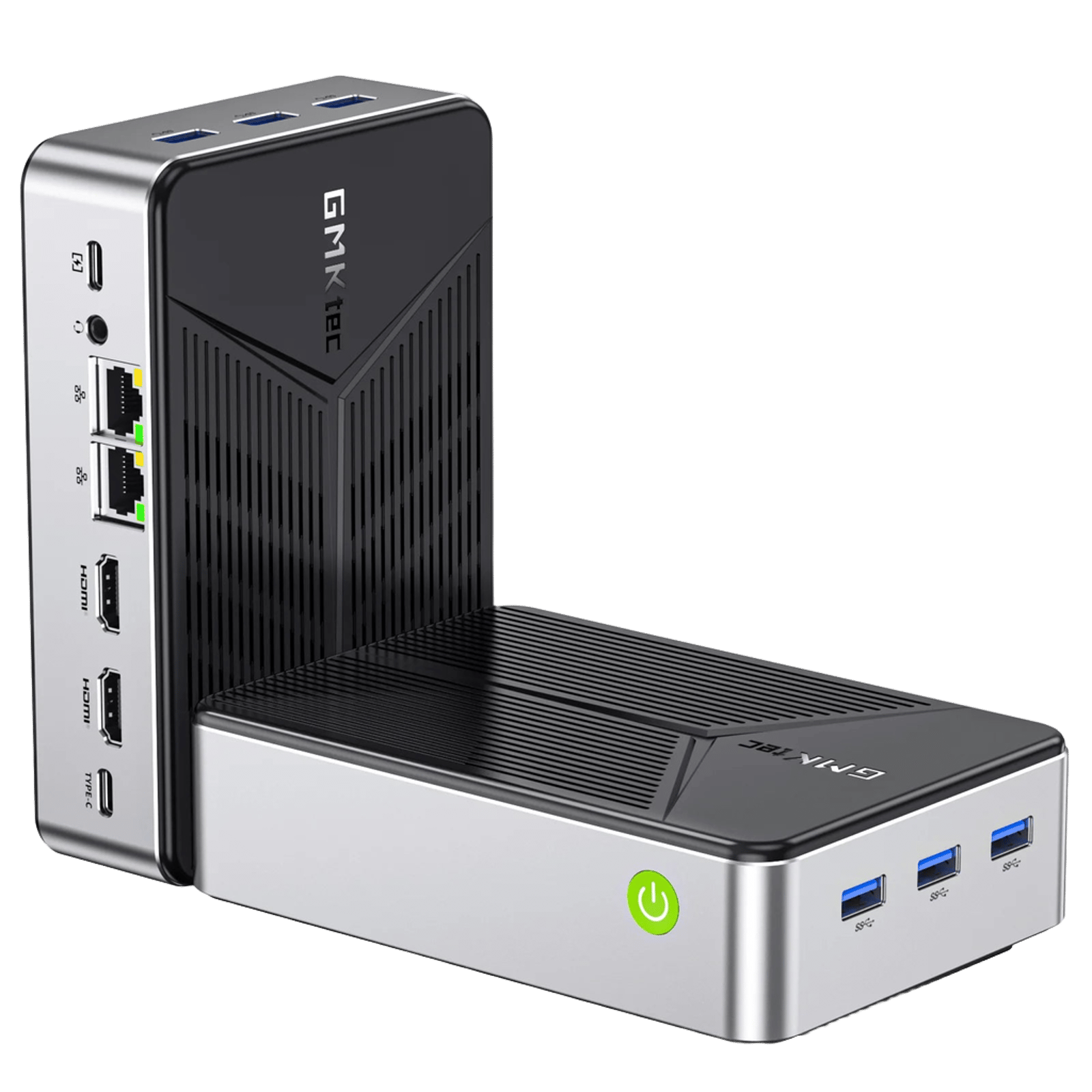

GMKtec NucBox G9 Mini PC Intel Twin Lake N150 Dual-system 4-bay NAS
The GMKtec NucBox G9 is a mini PC with an Intel N150 quad-core processor (up to 3.6 GHz), 12GB LPDDR5 RAM, 64GB eMMC, and a 512GB NVMe SSD. It supports up to 16TB storage via four M.2 slots, features Wi-Fi 6, Bluetooth 5.2, dual 2.5GbE LAN, triple display output, and comes with Windows 11 Pro and Ubuntu.
Pros
- +Dual 2.5G Ethernet
- +4x M.2 SSD slots up to 16TB
- +Wi-Fi 6 and Bluetooth 5.2
- +Triple display output
- +Windows 11 Pro and Ubuntu dual OS
- +Low-power Intel N150 processor
Cons
- −On-board non-upgradeable memory
- −eMMC storage included
- −No SD card slot
- −No Kensington lock
- −M.2 slots limited to PCIe 3.0
| Model | GMKtec NucBox G9 |
| Processor | Intel® Twin Lake N-Series Processor, Quad-Core, Four-Thread, Intel 7 process, Max Turbo Frequency up to 3.6GHz, 6MB Cache, TDP 6W |
| Processor Model | Intel® Processor N150 |
| Processor Technology | Intel 7 |
| Processor Package | FCBGA1264 Package, 35 × 24 mm |
| Graphics | Intel® Graphics, 24 Execution Units, up to 1000MHz |
| Memory | On-board LPDDR5 Memory, 12GB standard configuration, supports up to 16GB |
| Storage | 64GB eMMC + 512GB M.2 2280 NVMe SSD |
| Storage Expansion | Supports up to 4 × M.2 2280 PCIe SSDs, up to 4TB per slot, for a maximum of 16TB |
| Display Support | Triple display output via 2 × HDMI + 1 × full-function Type-C, supports up to 4096 × 2160 resolution |
| Network | Wi-Fi 6 (Intel AX101, up to 600 Mbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel i226) |
| Wireless | Wi-Fi 6 (Intel AX101, up to 600 Mbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel i226) |
| Bluetooth | 5.2 |
| Ethernet | Dual 2.5G Ethernet LAN (Intel i226) |
| I/O Ports | USB-A: 3 × USB 3.2 Gen2 (10Gbps) Type-C: 1 × USB-C (DP / Data / PD, full-function) HDMI: 2 × HDMI (up to 4096 × 2160 @ 60Hz) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet |
| Dimensions | 146.6 × 100.25 × 38.75 mm |
| Weight | 336 g |
| Color / Finish | Black Top Cover / Black Bottom Cover / Silver Middle Frame |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery USB-C Power Input, 19V / 3.42A |
| Power Options | US, UK, EU |
| Cooling | Triple silent cooling fans (DDR/SSD/CPU advanced cooling) |
| Operating System | Windows 11 Pro + Ubuntu |
| Operating System Options | US, UK, EU |
| Audio | 1 × 3.5mm CTIA Audio Jack |
| Expansion Slots | 4 × M.2 2280 PCIe 3.0 slots |
| Environmental | 0°C to 40°C |
| Certifications | CE, FCC, CCC, RoHS |
| Package Contents | User Manual, Warranty Card, Power Adapter, VESA Mount Bracket, HDMI Cable |
| Features | 15 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic, Thai |
| Overview | GMKtec NucBox G9 Intel N150 Mini PC. Equipped with Intel Twin Lake N150 processor (4 cores / 4 threads, up to 3.6GHz), Intel UHD graphics, LPDDR5 4800 memory up to 16GB, M.2 2280 NVMe storage expansion up to 16TB (4 slots), WiFi 6, dual 2.5GbE LAN, dual 4K HDMI display output, and dual OS support with Windows 11 Pro and Ubuntu. A compact mini PC designed for NAS, soft router setups, home servers, and multitasking applications - global shipping & 1-year warranty included. |
| Warranty | 1-Year Limited Warranty |
| Configurations | 12GB DDR5+64GB EMMC+No SSD | 12GB DDR5+64GB EMMC+512GB SSD | 12GB DDR5+64GB EMMC+2TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
