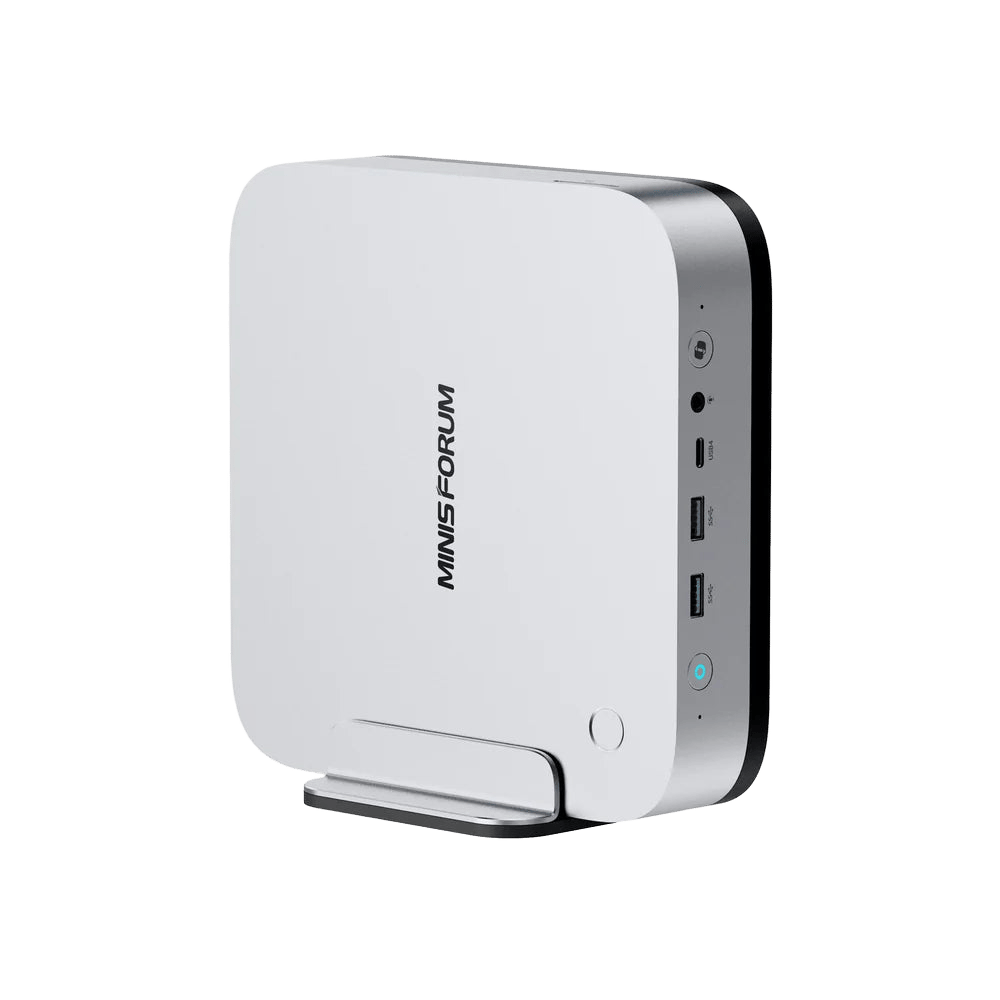

AI X1 Pro
The Minisforum AI X1 Pro is a compact mini PC powered by the AMD Ryzen AI 9 HX 370 processor (12 cores, 24 threads, up to 5.1 GHz) with an AMD Radeon 890M GPU and XDNA 2 NPU delivering 80 total TOPS. It supports up to 128GB DDR5 RAM, three M.2 NVMe SSDs (up to 12TB), quad 4K displays via HDMI 2.1, DP 2.0, and dual USB4, dual 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4, OCuLink for eGPU, and a fingerprint
Pros
- +Powerful 12-core Ryzen AI 9 CPU
- +Up to 80 TOPS total AI performance
- +Fast Radeon 890M integrated graphics
- +Supports up to 128GB DDR5
- +Triple M.2 NVMe SSD slots
- +Wi-Fi 7 and Bluetooth 5.4
Cons
- −One M.2 slot runs at PCIe 4.0 x1
| Model | AI X1 Pro |
| Processor | AMD Ryzen AI 9 HX 370, 12 cores, 24 threads, Max. 5.1GHz, Overall TOPS: Up to 80 TOPS |
| Processor Model | Ryzen AI 9 HX 370 |
| Processor Technology | Zen 5 |
| Graphics | AMD Radeon 890M (2900 MHz) |
| NPU / AI Accelerator | AMD XDNA NPU, up to 50 TOPS |
| Memory | DDR5 (SO-DIMMx2) 5600MT/s, Max. 128GB |
| Memory Slots | 2x SO-DIMM slots, max 128GB |
| Storage | 2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x4), 1×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x1) |
| Storage Expansion | 3x M.2 2280 slots, supports up to 4TB each |
| Display Support | HDMI x 1 (Up to 8K@60Hz/4K@120Hz), DP x 1 (Up to 8K@60Hz/4K@120Hz), USB4 х 2 (Up to 8K@60Hz/4K@120Hz) |
| Wireless | M.2 2230 E-Key (Wi-Fi 7, Bluetooth® 5.4) (PCIe Only) |
| Bluetooth | 5.4 |
| Ethernet | 2.5 Gigabit LAN(RJ45)x2 |
| I/O Ports | 2.5 Gigabit LAN(RJ45)x2, USB Type A(USB3.2 Gen2)x 2, USB Type A(USB2.0)x1, USB4 х 1(Alt PD in 100W & PD Out 15W. In Rear), USB4 х1 (Alt PD Out 15W, In Front), HDMI 2.1 x1, DP2.0x1, 3.5mm Audio Jack x1, SD Card Slotx1, DMICx2, OCuLink х 1 (via M.2 to OCuLink adapter board) |
| Front I/O | Power switch x 1, USB3.2 Gen2 Type-A port x 2, USB4 x 1 (Alt PD Out 15W | 40Gbps), 1 x 3.5 mm combo jack, 1 x Copilot Button, 2 x DMIC |
| Rear I/O | CLR CMOS x 1, Kensington Lock x 1, USB 2.0 Type-A port x 1, OCuLink x 1 (PCIe 4.0 x 4), USB4 x 1 (Alt PD in 65-100W & PD Out 15W | 40Gbps), 2.5 Gigabit LAN(RJ45)x2, HDMI 2.1 x1, DP2.0x1, 3.5mm Audio Jack x1, SD Card Slotx1, DMICx2 |
| SD Card | SD Card Slot x1 |
| Dimensions | 195x195x42.5/47.5mm (LWH) |
| Weight | 1.5Kg |
| Form Factor | Mini PC |
| Power | AC-IN (Power Insided 19V/7.1A 134.9W) |
| Operating System | Windows 11 |
| Operating System Options | Windows 11 |
| Audio | HDMI x1, 3.5mm Combo Jack x 1, Speaker x2 | DMICx 2, 3.5mm Combo Jackx1 |
| Expansion Slots | 3x M.2 2280 for storage, 1x M.2 2230 E-Key for WiFi |
| Security | Fingerprint x1 (Support Windows Hello) |
| Kensington Lock | Kensington Lock x 1 |
| Features | Power Button х 1, Kensington Lock х 1, Reset Hole х 1, Copilot Button х 1 | Yes |
| Overview | Minisforum AI X1 Pro is a mini PC powered by AMD Ryzen AI 9 HX 370 with Radeon 890M graphics, supports up to 128GB DDR5, triple M.2 slots, Wi-Fi 7, dual 2.5GbE, and multiple display outputs including HDMI 2.1, DP 2.0, and USB4. It features an integrated power supply and a dedicated Copilot button. |
| Configurations | 32GB RAM+1TB SSD | 64GB RAM+1TB SSD | 96GB RAM+2TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
