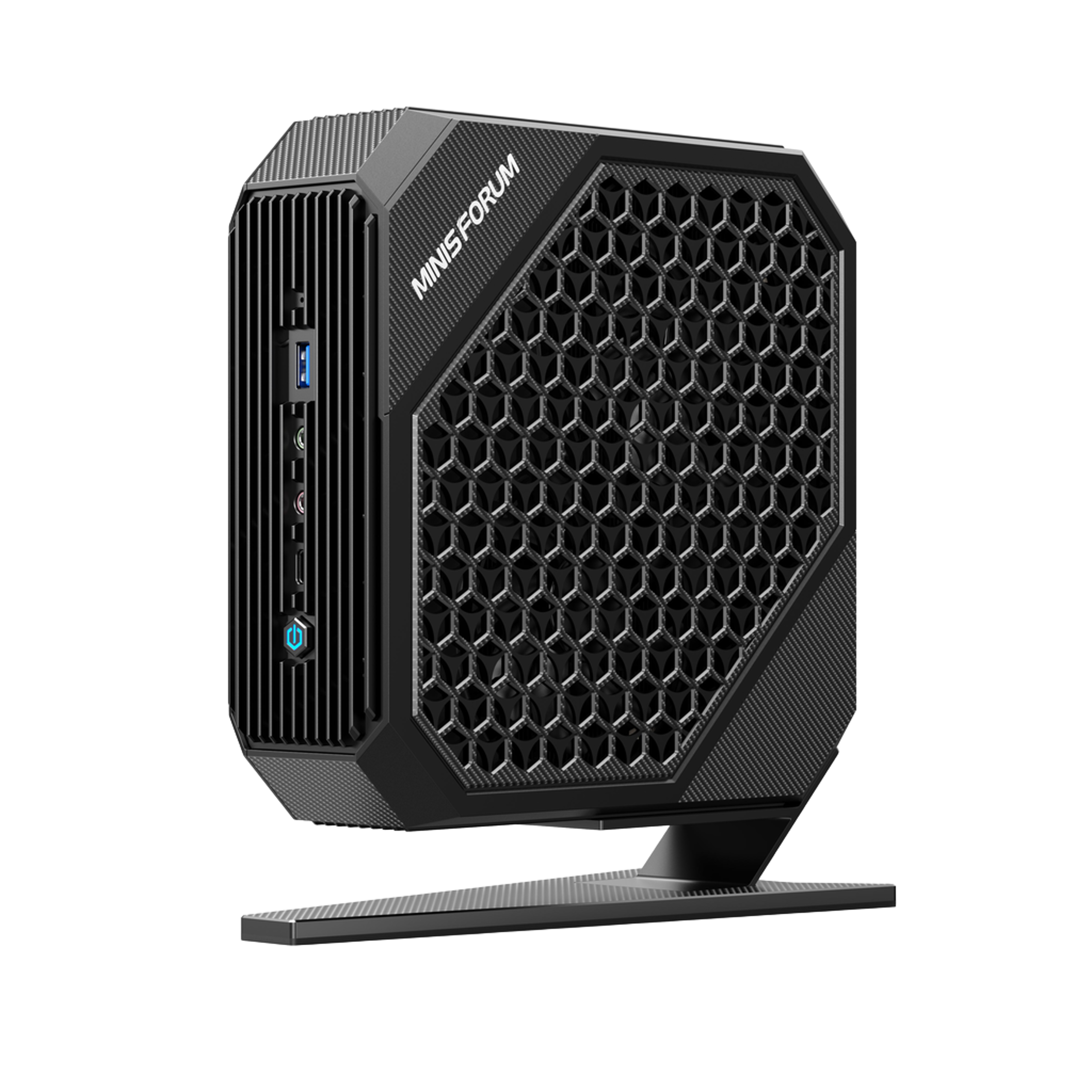

MINISFORUM HX99G/HX100G
The MINISFORUM HX99G/HX100G is a compact mini PC with AMD Ryzen 9 processors (6900HX or 7840HS) and Radeon RX 6600M or 6650M discrete GPUs. It supports up to 64GB DDR5-4800 RAM, a single PCIe 4.0 SSD, and dual 2.5Gb Ethernet. Display output includes HDMI 2.0/2.1 and USB4. The HX100G adds a newer CPU and NPU.
Pros
- +Powerful Ryzen 9 CPU
- +Discrete Radeon RX GPU
- +Dual 2.5Gb Ethernet
- +USB4 with DisplayPort
- +WiFi 6E and Bluetooth 5.2
- +Supports up to 4 displays
Cons
- −No additional SATA slot
- −Only one M.2 SSD slot
- −No SD card reader
| Model | HX99G/HX100G |
| Processor | AMD Ryzen 9 6900HX (8C/16T, 3.3GHz base, 4.9GHz boost, 16MB L3) for HX99G / AMD Ryzen 9 7840HS (8C/16T, 3.8GHz base, 5.1GHz boost, 16MB L3) for HX100G |
| Processor Model | Ryzen 9 6900HX / Ryzen 9 7840HS |
| Processor Technology | 6nm (6900HX) / 4nm (7840HS) |
| Processor Package | FP7 (6900HX) / FP7r2 (7840HS) |
| Graphics | AMD Radeon RX 6600M (8GB GDDR6) for HX99G / AMD Radeon RX 6650M (8GB GDDR6) for HX100G |
| NPU / AI Accelerator | None (HX99G) / AMD Ryzen AI (XDNA) (HX100G) |
| Memory | 32GB or 64GB DDR5-4800 dual-channel (2x SODIMM slots, max 64GB) |
| Memory Slots | 2x SODIMM slots, max 64GB |
| Storage | 1TB M.2 2280 PCIe 4.0 NVMe SSD |
| Storage Expansion | 1x M.2 2280 PCIe 4.0 slot (occupied), no additional SATA slot |
| Display Support | Up to 4 displays: 2x HDMI 2.0 (HX99G) / 2x HDMI 2.1 (HX100G), 2x USB4 (DisplayPort alt mode) |
| Network | 2x 2.5Gb Ethernet (Realtek RTL8125BG), WiFi 6E, Bluetooth 5.2 |
| Wireless | WiFi 6E (AMD RZ616 or MediaTek MT7922) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 2x 2.5Gb Ethernet ports |
| I/O Ports | Front: 1x USB 3.2 Type-C, 1x USB 3.2 Type-A, 1x 3.5mm audio jack, 1x microphone jack. Rear: 2x USB4 Type-C, 3x USB 3.2 Type-A, 2x HDMI, 2x 2.5Gb Ethernet, 1x 3.5mm audio jack, 1x microphone jack |
| Front I/O | 1x USB 3.2 Type-C, 1x USB 3.2 Type-A, 1x 3.5mm audio jack, 1x microphone jack |
| Rear I/O | 2x USB4 Type-C, 3x USB 3.2 Type-A, 2x HDMI, 2x 2.5Gb Ethernet, 1x 3.5mm audio jack, 1x microphone jack |
| Dimensions | 172 x 172 x 60 mm |
| Weight | 1.5 kg |
| Color / Finish | Black |
| Form Factor | Mini PC (NUC-like) |
| Power | 120W power adapter (19V/6.32A) |
| Power Options | US, EU, UK, AU plug options |
| Cooling | MSC (Multiple System Cooling) with dual fans and heat pipes |
| Operating System | None (Barebone) / Windows 11 Pro (pre-installed on RAM+SSD configurations) |
| Operating System Options | Windows 11 Pro, Linux |
| Software Included | None (Barebone) / Drivers and utilities |
| Audio | Realtek ALC256? 3.5mm audio jack, microphone jack |
| Expansion Slots | 1x M.2 2280 PCIe 4.0 for SSD, 1x M.2 2230 for WiFi (occupied) |
| Environmental | Operating temperature: 0°C to 35°C, storage: -20°C to 60°C, humidity: 10% to 90% non-condensing |
| Security | TPM 2.0 (fTPM), Kensington lock slot |
| Support Included | 1-year warranty, technical support |
| Certifications | CE, FCC, RoHS |
| Package Contents | Mini PC, power adapter, power cord, HDMI cable, VESA mount, screws, user manual |
| Kensington Lock | Yes |
| Features | Dual 2.5Gb Ethernet, USB4, AMD Radeon RX 6600M/6650M dGPU, DDR5 RAM, PCIe 4.0 SSD, VESA mountable |
| Overview | The MINISFORUM HX99G/HX100G is a compact gaming mini PC powered by AMD Ryzen 9 processors and Radeon RX 6600M/6650M discrete graphics, offering excellent performance for gaming and creative tasks in a small form factor. |
| Warranty | 1-year limited warranty |
| Configurations | Barebone, 32GB RAM+1TB SSD, 64GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
