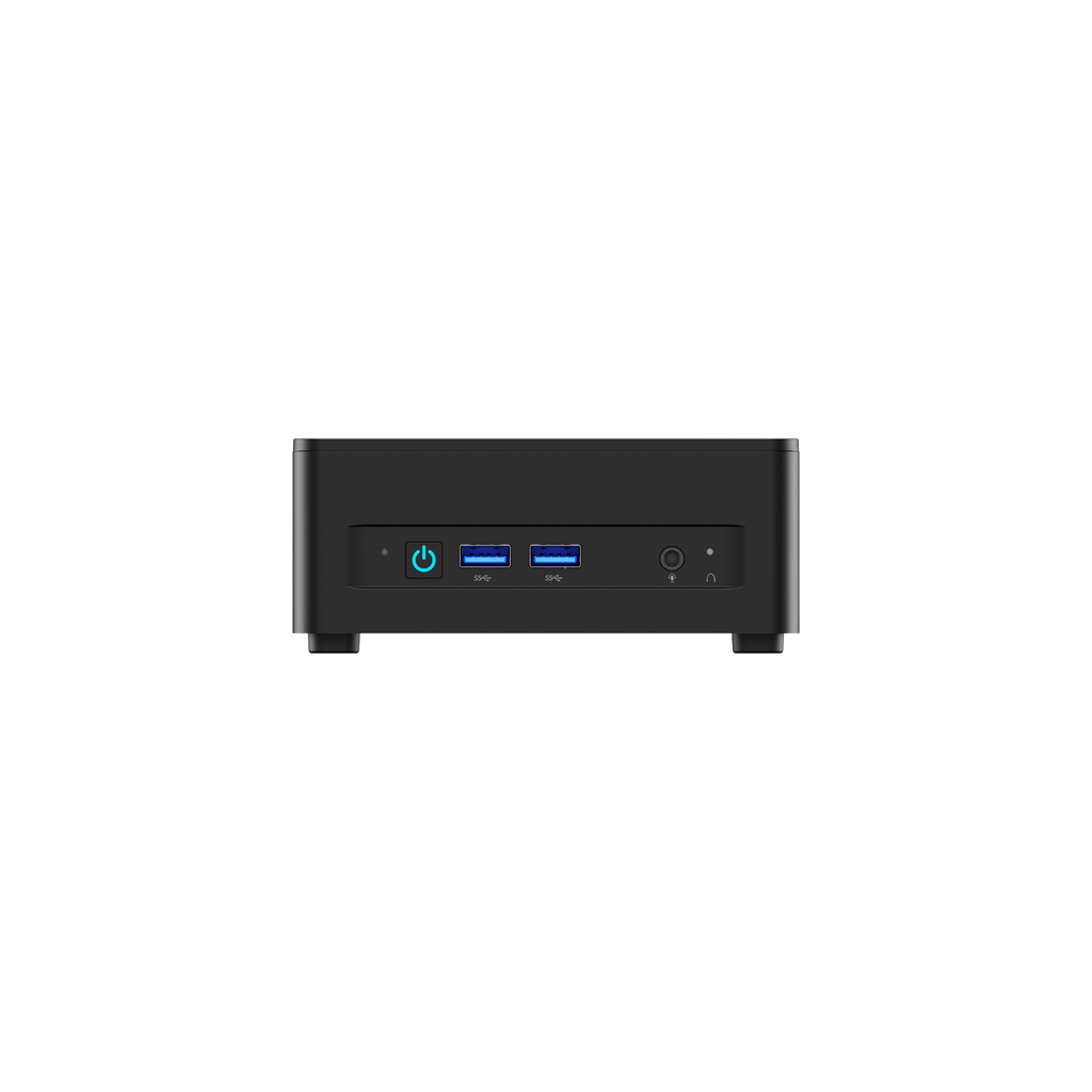

MINISFORUM UM690 Slim
The Minisforum UM690 Slim is a mini-PC powered by an AMD Ryzen 9 6900HX CPU. It is available as a barebone configuration (no OS license included) with a price range of $275 to $99,999.
Pros
- +Ryzen 9 6900HX CPU
- +Radeon 680M graphics
- +Supports 4 displays up to 8K
- +USB4 40Gbps port
- +2.5GbE LAN
- +WiFi 6 and Bluetooth 5.2
Cons
- −Barebone: no RAM or storage included
- −RAM is soldered, no upgrade slots
- −Only one M.2 SSD slot
- −No SD card reader
- −No operating system included
| Model | UM690 Slim |
| Processor | AMD Ryzen 9 6900HX CPU for 265 | AMD Ryzen 9 6900HX |
| Processor Model | Ryzen 9 6900HX |
| Processor Technology | 6nm FinFET |
| Processor Package | FP7 |
| Graphics | AMD Radeon 680M (12 compute units, up to 2400 MHz) |
| Memory | Barebone (no RAM included); supports up to 96GB LPDDR5-6400 dual-channel |
| Memory Slots | 0 (soldered) |
| Storage | Barebone (no storage included); supports M.2 2280 PCIe 4.0 NVMe SSD |
| Storage Expansion | 1x M.2 2280 PCIe 4.0 x4 |
| Display Support | Up to 4 displays via HDMI 2.1, DisplayPort 1.4, USB4 (8K@60Hz) |
| Wireless | WiFi 6 (802.11ax) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 2.5 Gigabit Ethernet (Realtek RTL8125BG) |
| I/O Ports | Front: 1x USB4 (40Gbps), 1x USB 3.2 Gen2 Type-C (10Gbps), 1x 3.5mm headphone jack; Rear: 4x USB 3.2 Gen2 Type-A, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x 2.5GbE LAN, 1x DC power input |
| Front I/O | 1x USB4, 1x USB 3.2 Gen2 Type-C, 1x 3.5mm headphone jack, power button, reset button |
| Rear I/O | 4x USB 3.2 Gen2 Type-A, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x 2.5GbE LAN, DC power input |
| Weight | 1.26 kg |
| Form Factor | Mini PC |
| Power | UK / FR / EU / JP |
| Power Options | UK / FR / EU / JP plug options |
| Cooling | Active cooling with fan and heat sink |
| Operating System | None (Barebone) |
| Operating System Options | Windows 11, Linux |
| Audio | 3.5mm headphone jack, HDMI audio |
| Expansion Slots | 1x M.2 2280 PCIe 4.0 for SSD, 1x M.2 2230 for WiFi (occupied) |
| Security | TPM 2.0 (likely) |
| Certifications | CE, FCC, RoHS |
| Package Contents | UM690 Slim, power adapter, power cord, HDMI cable, user manual |
| Features | USB4 with 8K output, 2.5GbE, AMD Ryzen 9 6900HX, LPDDR5 support |
| Overview | Get the business modernization-friendly UM690Slim powered by AMD Ryzen 9 6900HX CPU for 265 |
| Warranty | 1 year limited warranty |
| Configurations | Barebone(OS license not included) |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
