MINISFORUM NAB6/NAB9/NAB6 Lite/NAB7-AMZ
Minisforum NAB6 series mini PCs feature Intel Core H-series processors (i5-12600H to i9-12900HK, possibly i7-13700H), dual-channel DDR4-3200 up to 64GB, M.2 PCIe 4.0 SSD, dual 2.5G Ethernet, WiFi 6, Bluetooth 5.2, quad display via 2x HDMI 2.0 and 2x USB-C, and 100W USB-C PD input. Available as barebone or with Windows 11.
Pros
- +Compact mini PC form factor
- +Intel Core i5-12600H processor
- +Intel Iris Xe graphics
- +Dual SO-DIMM slots up to 64GB
- +M.2 PCIe 4.0 and SATA storage options
- +Supports up to four 4K displays
Cons
- −Only single Gigabit Ethernet
- −No SD card slot
- −Barebone configuration has no OS
| Model | NAB6 Lite |
| Processor | NAB6/NAB9/NAB6 Lite/NAB7-AMZ | Intel Core i7-12650H / Intel Core i9-12900HK / Intel Core i5-12600H |
| Processor Model | Intel Core i5-12600H |
| Processor Technology | Intel 7 (10 nm Enhanced SuperFin) |
| Processor Package | BGA1744 |
| Chipset | Intel HM670 |
| Graphics | Intel Iris Xe Graphics (Graphics Frequency 1.40 GHz) |
| Memory | 16GB, 32GB |
| Memory Slots | 2 SO-DIMM slots, max 64 GB |
| Storage | 512GB, 1TB |
| Storage Expansion | 1x M.2 2280 PCIe 4.0 (up to 2 TB), 1x 2.5-inch SATA HDD slot (SATA 3.0, 6.0 Gb/s) |
| Display Support | Up to 4 displays: 2x HDMI 4K@60Hz, 2x USB-C 4K@60Hz |
| Network | 1x Gigabit Ethernet, Wi-Fi, Bluetooth |
| Wireless | M.2 2230 WiFi support (Wi-Fi 6 likely) |
| Bluetooth | Bluetooth 5.2 (inferred) |
| Ethernet | 1x Gigabit Ethernet (Realtek RTL8111H or similar) |
| I/O Ports | 2x USB-C (USB 3.2 Gen2, PD 100W), 4x USB-A (USB 3.2 Gen2), 2x HDMI, 1x 3.5mm Combo Jack |
| Front I/O | 2x USB-A, 1x USB-C, 1x 3.5mm audio (inferred) |
| Rear I/O | 2x USB-A, 1x USB-C, 2x HDMI, 1x Ethernet (inferred) |
| Dimensions | Approx. 0.9 L volume (exact dimensions not specified) |
| Color / Finish | Silver |
| Form Factor | Mini PC (NUC-like) |
| Power | US |
| Power Options | US plug (adapter included) |
| Cooling | Active cooling with fan, active SSD cooling design, side ventilation |
| Operating System | None (barebone) or optional Windows 11 Pro/Home (depending on configuration) |
| Operating System Options | Windows 11, Linux |
| Audio | 3.5mm Combo Jack, HDMI audio output |
| Expansion Slots | 1x M.2 2280 (PCIe 4.0) for SSD, 1x M.2 2230 for WiFi/BT |
| Security | TPM 2.0 (likely), Kensington lock slot |
| Support Included | 3-year warranty, after-sales support |
| Package Contents | Mini PC, power adapter, HDMI cable, user manual (inferred) |
| Kensington Lock | Yes |
| Features | Wake on LAN, Auto Power On, RTC Boot, Sleep Mode, 4K@60Hz multi-display support, easy disassembly design |

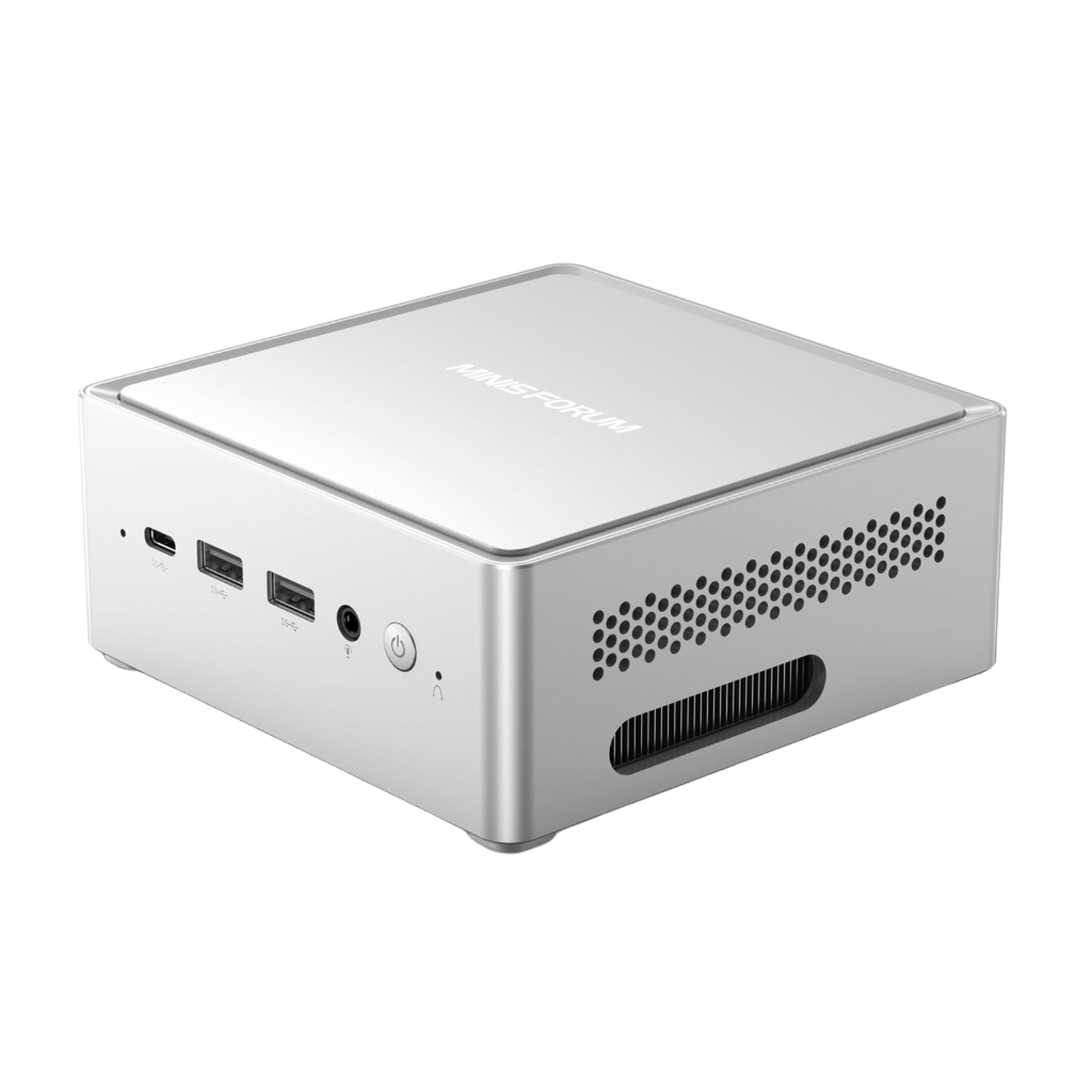

| Overview | The MINISFORUM NAB6 Lite is a compact mini PC powered by Intel Core i5-12600H processor, featuring Intel Iris Xe graphics, dual-channel DDR4 memory, and flexible storage options including M.2 NVMe SSD and 2.5-inch SATA HDD. It supports up to four 4K displays via HDMI and USB-C, making it suitable for office, multimedia, digital signage, and home theater applications. |
| Warranty | 3-year warranty |
| Configurations | BAREBONE | 16GB RAM+512GB SSD | 32GB RAM+512GB SSD | 32GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
