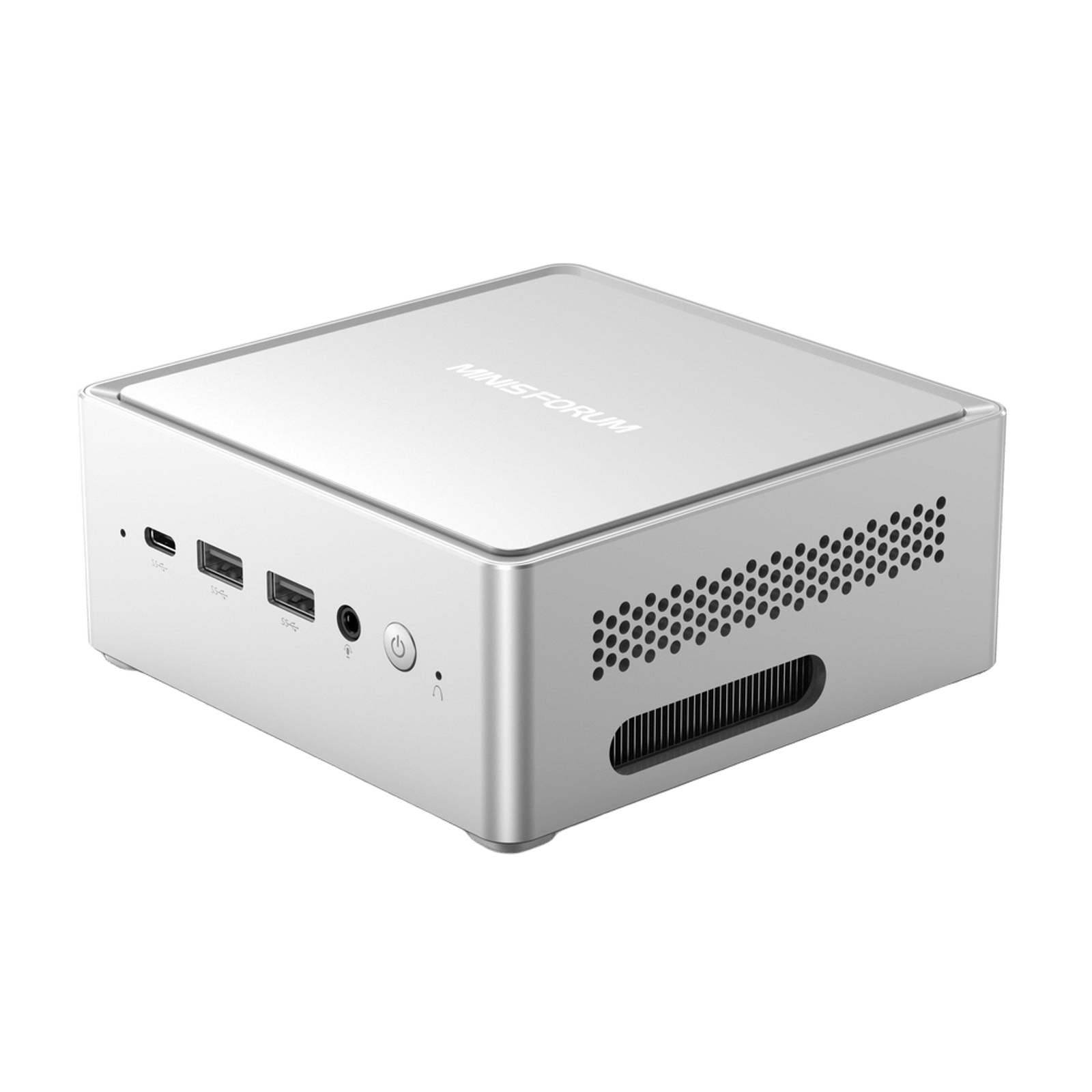

MINISFORUM NAB6 Lite
The Minisforum NAB6 Lite is a compact mini PC with an Intel Core i5-12600H processor, 12 cores, and Intel Iris Xe graphics. It supports up to 64GB DDR4-3200 RAM, M.2 PCIe 4.0 storage, and quad 4K displays via HDMI and USB-C. Connectivity includes dual 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3, and multiple USB ports. Powered by USB-C PD, it's ideal for office and light gaming.
Pros
- +Powerful 12-core Intel Core i5-12600H
- +Dual 2.5GbE Ethernet
- +USB4 with eGPU support
- +Supports 4 displays up to 8K
- +WiFi 6 and Bluetooth 5.2
- +Up to 64GB RAM via 2 SO-DIMM slots
Cons
- −No OS included (barebone)
- −No SD card slot
| Model | NAB6 Lite |
| Processor | Intel Core i5-12600H | Intel Core i5-12600H (12 cores/16 threads, up to 4.5 GHz) |
| Processor Model | Intel Core i5-12600H |
| Graphics | Intel Iris Xe Graphics (80 EUs, up to 1.40 GHz) |
| Memory | 16GB, 32GB |
| Memory Slots | 2 SO-DIMM slots, up to 64GB |
| Storage | 512GB, 1TB |
| Storage Expansion | 1x 2.5-inch SATA HDD slot (SATA 3.0, up to 2TB) |
| Display Support | Up to 4 displays: 2x HDMI (4K@60Hz), 2x USB-C (8K@60Hz via USB4) |
| Wireless | WiFi 6, Bluetooth 5.2 |
| Bluetooth | 5.2 |
| Ethernet | 2 x Ethernet |
| I/O Ports | Front: 1x USB3.2 Gen2 Type-C (data), 2x USB3.2 Gen2 Type-A, 1x 3.5mm audio jack; Rear: 2x USB4 (Type-C), 2x USB3.2 Gen1 Type-A, 2x HDMI, 2x RJ45 2.5GbE, DC jack, Clear CMOS button |
| Front I/O | 1x USB3.2 Gen2 Type-C (data), 2x USB3.2 Gen2 Type-A, 1x 3.5mm audio jack |
| Rear I/O | 2x USB4 (Type-C), 2x USB3.2 Gen1 Type-A, 2x HDMI, 2x RJ45 2.5GbE, DC jack, Clear CMOS button |
| Dimensions | 5.02 x 5 x 2.15 inches (127.5 x 127 x 54.6 mm) |
| Weight | 1.25 lb (0.567 kg) |
| Form Factor | Mini PC (NUC-like) |
| Power | 100W PD (USB-C power delivery) or DC power adapter |
| Cooling | New high-performance cooling system with dual heat pipes and dual air vents, active SSD cooling |
| Operating System | None (Barebone) |
| Operating System Options | Windows 11, Linux |
| Audio | 3.5mm combo audio jack, HDMI audio |
| Expansion Slots | 1x M.2 2280 PCIe4.0 for SSD, 1x M.2 2230 for WiFi, 1x 2.5-inch SATA bay |
| Support Included | 3 Year Warranty |
| Package Contents | NAB6 Lite, power adapter, HDMI cable, user manual |
| Features | Rich ports, PD power, eGPU support (via USB4), dual 2.5GbE, 4 display support, easy disassembly, active SSD cooling |
| Overview | Boost your productivity with the MINISFORUM Mini PC NAB6 Lite. Featuring rich ports, PD power, and eGPU support, it perfectly handles office work and light gaming. |
| Warranty | 3 Year Warranty |
| Configurations | Barehone | 16GB RAM+512GB SSD | 32GB RAM+512GB SSD | 32GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
