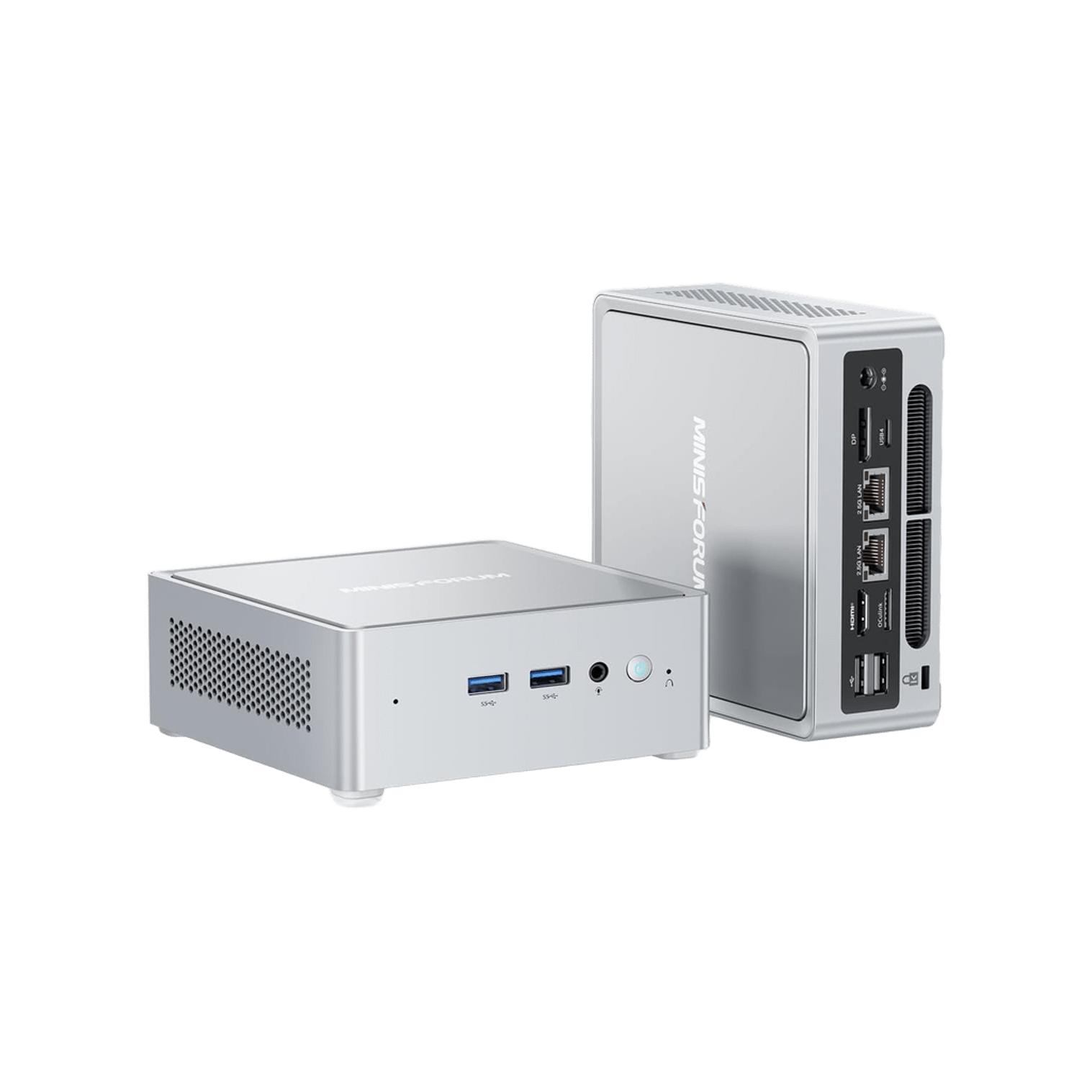

MINISFORUM NAB9 Plus
MINISFORUM NAB9 Plus mini PC features Intel Core i9-12900HK processor with 14 cores and 20 threads, 32GB RAM, and 1TB SSD. It offers HDMI, DP, and USB4 (PD) video outputs, an OCuLink port, and dual 2.5G LAN. Graphics is Intel Iris Xe. Price is $99,999.
Pros
- +Powerful Intel Core i9-12900HK
- +32GB RAM and 1TB SSD included
- +Triple 4K display support
- +Dual 2.5GbE LAN ports
- +USB4 with Power Delivery
- +OCuLink port for expansion
Cons
- −No operating system included
- −Integrated graphics only
- −No SD card reader
- −Front USB-C is data only
- −Only one M.2 SSD slot
| Model | NAB9 Plus |
| Processor | Intel Core i9-12900HK(14C | Core i9-12900HK |
| Processor Model | Core i9-12900HK |
| Processor Technology | Intel 7 |
| Processor Package | BGA1744 |
| Chipset | Intel HM670 |
| Graphics | Intel Iris Xe Graphics (integrated, 96 EUs) |
| Memory | 32GB |
| Memory Slots | 2 (max 64GB) |
| Storage | 1TB SSD |
| Storage Expansion | 1x M.2 2280 PCIe Gen4 for SSD, 1x M.2 2230 for WiFi |
| Display Support | Triple 4K displays: HDMI 2.1 (4K@60Hz), USB4 (4K@60Hz), DisplayPort 1.4 (4K@120Hz) |
| Network | Dual 2.5GbE LAN, MediaTek WiFi |
| Wireless | MediaTek WiFi (likely WiFi 6) |
| Ethernet | Dual LAN |
| I/O Ports | Front: 2x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen1 Type-C (data only), 1x 3.5mm combo jack, power button, CMOS reset, DMIC button; Rear: 2x RJ45 2.5GbE, 1x DisplayPort, 1x HDMI, 1x USB4 Type-C (Alt DP, data, PD out), 2x USB 3.2 Gen2 Type-A |
| Front I/O | 2x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen1 Type-C (data only), 1x 3.5mm combo jack, power button, CMOS reset button, DMIC button |
| Rear I/O | 2x RJ45 2.5GbE, 1x DisplayPort, 1x HDMI, 1x USB4 Type-C (Alt DP, data, PD out), 2x USB 3.2 Gen2 Type-A |
| Color / Finish | Black |
| Form Factor | Mini PC |
| Power | 120W power adapter (19V 6.32A), input 100-240V |
| Power Options | 100-240V input |
| Cooling | Active cooling with fan, heat pipe, and dedicated fan on NVMe SSD |
| Operating System | Without OS |
| Operating System Options | Windows 11, Linux |
| Audio | 3.5mm combo jack |
| Expansion Slots | 1x M.2 2280 PCIe Gen4 for SSD, 1x M.2 2230 for WiFi |
| Security | TPM 2.0 (likely) |
| Package Contents | NAB9 Plus, power adapter, HDMI cable, VESA mount, user manual |
| Features | OCuLink port, triple 4K display support, dual 2.5GbE, USB4 with PD, Intel Core i9-12900HK |
| Overview | MINISFORUM NAB9 Plus Mini PC Intel Core i9-12900HK(14C/20T), 32GB RAM 1TB SSD, HDMI+DP+USB4(PD) Video Outputs Mini Computers, OCuLink Port, 2X 2.5G LAN Port Intel Iris Xe Graphics Desktop Computer |
| Warranty | 3 Year Warranty |
| Configurations | 32GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
