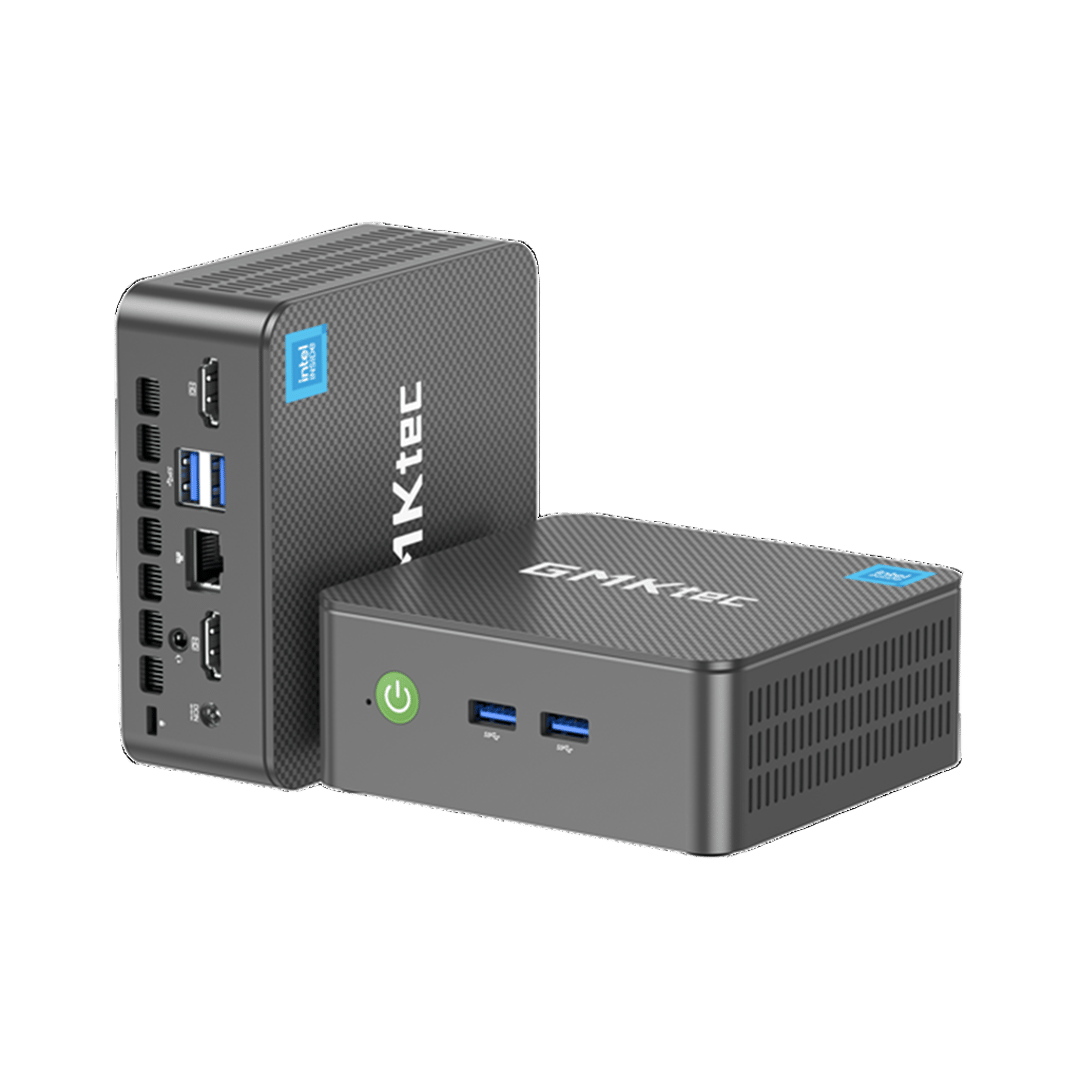

GMKtec NucBox G3 Plus Mini PC Intel® 12th Twin Lake N150
The GMKtec NucBox G3 Plus Mini PC features an Intel N150 processor (4 cores, up to 3.6GHz), Intel Graphics with 24 EUs, DDR4-3200 memory up to 32GB via one SO-DIMM slot, and storage via dual M.2 slots (2280 NVMe up to 4TB and 2242 SATA up to 2TB). It offers dual HDMI output up to 4K, Wi-Fi 6, Bluetooth 5.2, 2.5GbE LAN, four USB 3.2 Gen2 ports, and runs Windows 11 Pro. Dimensions: 114x106x42.5mm, weight 361g.
Pros
- +Dual 4K HDMI output
- +2.5G Ethernet LAN
- +Wi-Fi 6 and Bluetooth 5.2
- +Dual M.2 storage expansion
- +Low 6W TDP energy efficient
- +Windows 11 Pro included
Cons
- −Single SO-DIMM memory slot
- −No USB-C port
- −No SD card slot
| Model | GMKtec NucBox G3 PLUS |
| Processor | Intel® Twin Lake N-Series Processor, 4 Cores, 4 Threads 7nm Process Max Turbo Frequency up to 3.6GHz 6MB Cache TDP 6W |
| Processor Model | Intel® Processor N150 |
| Processor Technology | 7nm |
| Processor Package | FCBGA1264 Package, 35 × 24 mm |
| Graphics | Intel® Graphics 24 Execution Units Up to 1000MHz |
| Memory | 1 × SO-DIMM Slot DDR4-3200 Memory 8GB / 16GB configurations Supports up to 32GB |
| Memory Slots | 1 SO-DIMM slot, supports up to 32GB |
| Storage | M.2 2280 NVMe PCIe 3.0 SSD 256GB / 512GB options |
| Storage Expansion | 1 × M.2 2280 PCIe SSD slot, supports up to 4TB 1 × M.2 2242 SATA SSD slot, supports up to 2TB |
| Display Support | Dual HDMI output Supports up to 4096 × 2160 resolution |
| Wireless | Wi-Fi 6 (Realtek 8852BE, up to 1201Mbps) Bluetooth 5.2 2.5G Ethernet LAN (Intel i226-V) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 2.5G Ethernet LAN (Intel i226-V) |
| I/O Ports | USB-A: 4 × USB 3.2 Gen2 HDMI: 2 × HDMI (up to 4096 × 2160 @ 60Hz) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 1 × RJ45 2.5G Ethernet |
| Dimensions | 114 × 106 × 42.5 mm |
| Weight | 361 g |
| Color / Finish | Dark Green / Brown |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 12V / 3A |
| Power Options | US |
| Operating System | Windows 11 Pro |
| Operating System Options | US |
| Audio | 3.5mm CTIA Audio Jack |
| Environmental | 0°C – 40°C |
| Certifications | CE, FCC, CCC, RoHS |
| Package Contents | User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
| Features | 13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Overview | GMKtec NucBox G3 PLUS Intel N150 Mini PC. Equipped with Intel Twin Lake N150 processor (4 cores / 4 threads, up to 3.6GHz), Intel UHD graphics, DDR4-3200 memory up to 32GB, dual M.2 storage expansion (2280 NVMe up to 4TB + 2242 SATA up to 2TB), WiFi 6, 2.5GbE LAN, dual-4K HDMI display output, and Windows 11 Pro pre-installed. A compact and energy-efficient mini desktop ideal for home office, business productivity, media streaming, and everyday computing - global shipping & 1-year warranty included. |
| Warranty | 1-Year Limited Warranty |
| Configurations | 16GB RAM+512GB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
