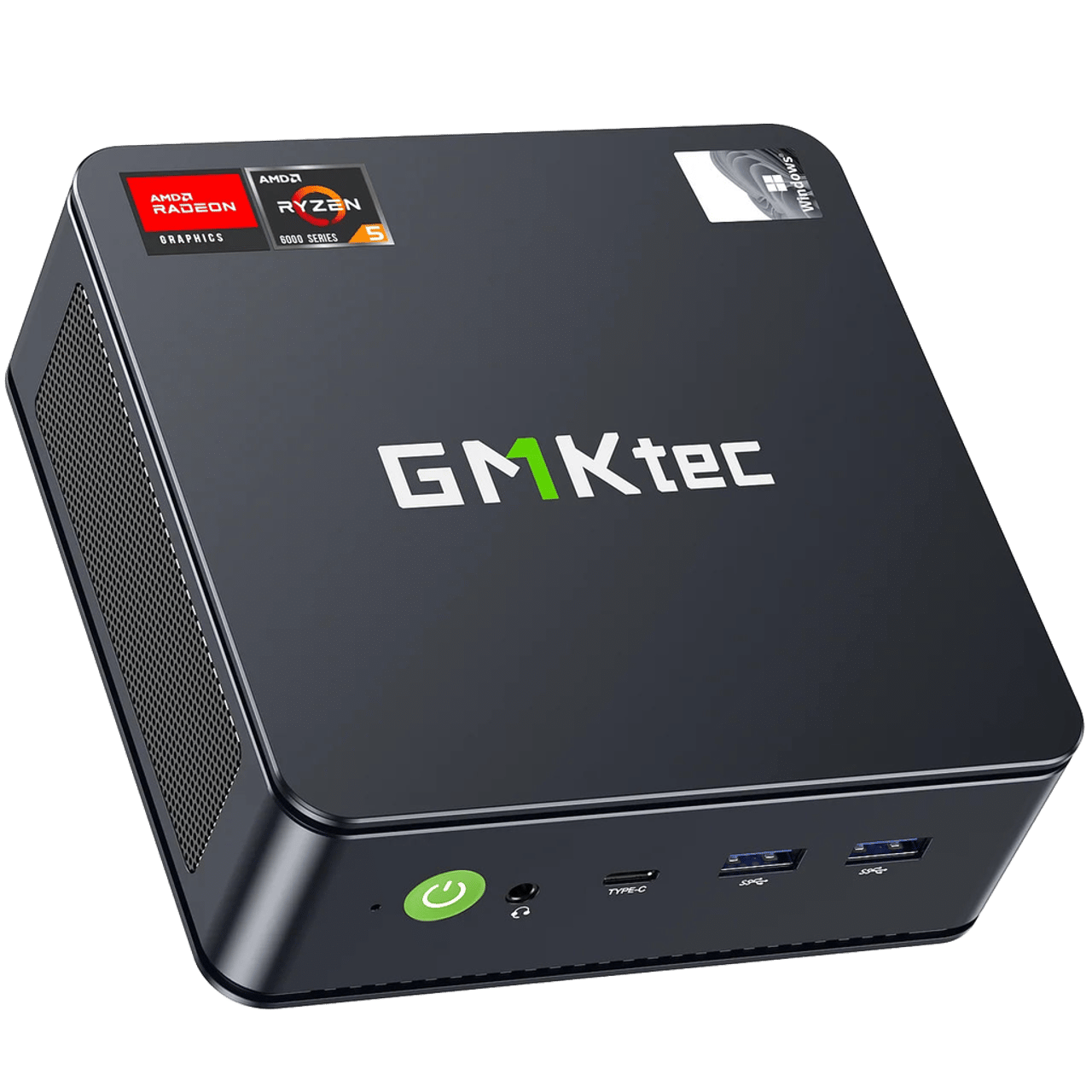

GMKtec NucBox M6 Mini PC AMD Ryzen TM 5 6600H
The GMKtec NucBox M6 Mini PC features an AMD Ryzen 5 6600H processor (6 cores, 12 threads, up to 4.5GHz) with Radeon 660M graphics. It supports up to 64GB DDR5 memory, dual M.2 PCIe SSD slots (up to 4TB total), triple display output via HDMI, DisplayPort, and USB4, dual 2.5GbE LAN, Wi-Fi 6, and Bluetooth 5.2. Dimensions 128.8x127x51.8mm, weight 528g. Runs Windows 11 Pro or Linux.
Pros
- +6-core/12-thread Ryzen 5 6600H processor
- +Dual-channel DDR5 memory up to 64GB
- +Dual M.2 PCIe SSD slots up to 4TB
- +Dual 2.5G Ethernet ports
- +Wi-Fi 6 and Bluetooth 5.2
- +Triple display via HDMI, DP, USB4
Cons
- −No SATA SSD support
- −Storage limited to PCIe 3.0 M.2
| Model | GMKtec NucBox M6 |
| Processor | AMD Ryzen™ 5 Mobile Processor with Radeon™ Graphics, 6 Cores, 12 Threads 6nm Process, FP7 Package Base Frequency 3.3GHz, Max Boost up to 4.5GHz 3MB L2 Cache / 16MB L3 Cache TDP 45W Zen 3+ Architecture |
| Processor Model | AMD Ryzen™ 5 6600H |
| Processor Technology | 6nm |
| Processor Package | FP7 BGA Package, 25 × 35 mm |
| Graphics | AMD Radeon™ 660M Graphics 6 Cores, up to 1900MHz RDNA 2 Architecture |
| Memory | 2 × SO-DIMM Slots Dual-Channel DDR5-4800 Memory 32GB standard configuration Supports up to 64GB |
| Memory Slots | 2 |
| Storage | PCIe 3.0 M.2 2280 SSD 1TB standard configuration 512GB / 1TB / 2TB / 4TB options available |
| Storage Expansion | 2 × M.2 2280 PCIe SSD slots Supports up to 4TB total expansion SATA SSD not supported |
| Display Support | Triple display output via HDMI + DisplayPort + USB4 Supports up to 4096 × 2160 resolution |
| Network | Wi-Fi 6 (RZ616, up to 2.4Gbps), Bluetooth 5.2, Dual 2.5G Ethernet LAN (Realtek 8125) |
| Wireless | Wi-Fi 6 (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek 8125) |
| Bluetooth | 5.2 |
| Ethernet | Dual 2.5G Ethernet LAN (Realtek 8125) |
| I/O Ports | USB-A: 3 × USB 3.2 + 1 × USB 2.0 HDMI: 1 × HDMI 2.0 (up to 4K@60Hz) DisplayPort: 1 × DisplayPort (up to 4K@120Hz) USB4: 1 × USB4 Full-Function Port (USB 3.1 Gen2 / PD / DP / Data) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Reset: 1 × Reset Button |
| Dimensions | 128.8 × 127 × 51.8 mm |
| Weight | 528 g |
| Color / Finish | Black |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W |
| Power Options | US, EU, UK, AU |
| Cooling | Active cooling (fan) |
| Operating System | Windows 11 Pro / Linux Supported |
| Operating System Options | US, EU, UK, AU |
| Audio | 1 × 3.5mm CTIA Audio Jack |
| Expansion Slots | 2 × M.2 2280 PCIe SSD slots |
| Environmental | 0°C – 40°C |
| Certifications | CE, FCC, CCC, RoHS |
| Package Contents | User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
| Features | The USB4 port supports data transfer, video output, and PD input/output. PD input requires 100W or above, and PD output supports up to 15W. | 13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Overview | GMKtec NucBox M6 Mini PC powered by AMD Ryzen TM 5 6600H processor (6 cores / 12 threads, up to 4.5GHz). Featuring Radeon 660M graphics based on RDNA2 architecture, DDR5 memory up to 64GB, dual M.2 PCIe SSD expansion up to 4TB, WiFi 6, dual 2.5GbE LAN, and triple-display output via HDMI, DisplayPort, and USB4. A powerful compact mini desktop designed for gaming, content creation, multitasking, and high-performance home or office computing. Supports Windows 11 Pro and Linux with global warranty. |
| Warranty | 1-Year Limited Warranty |
| Configurations | 16GB RAM+512GB SSD | 16GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
