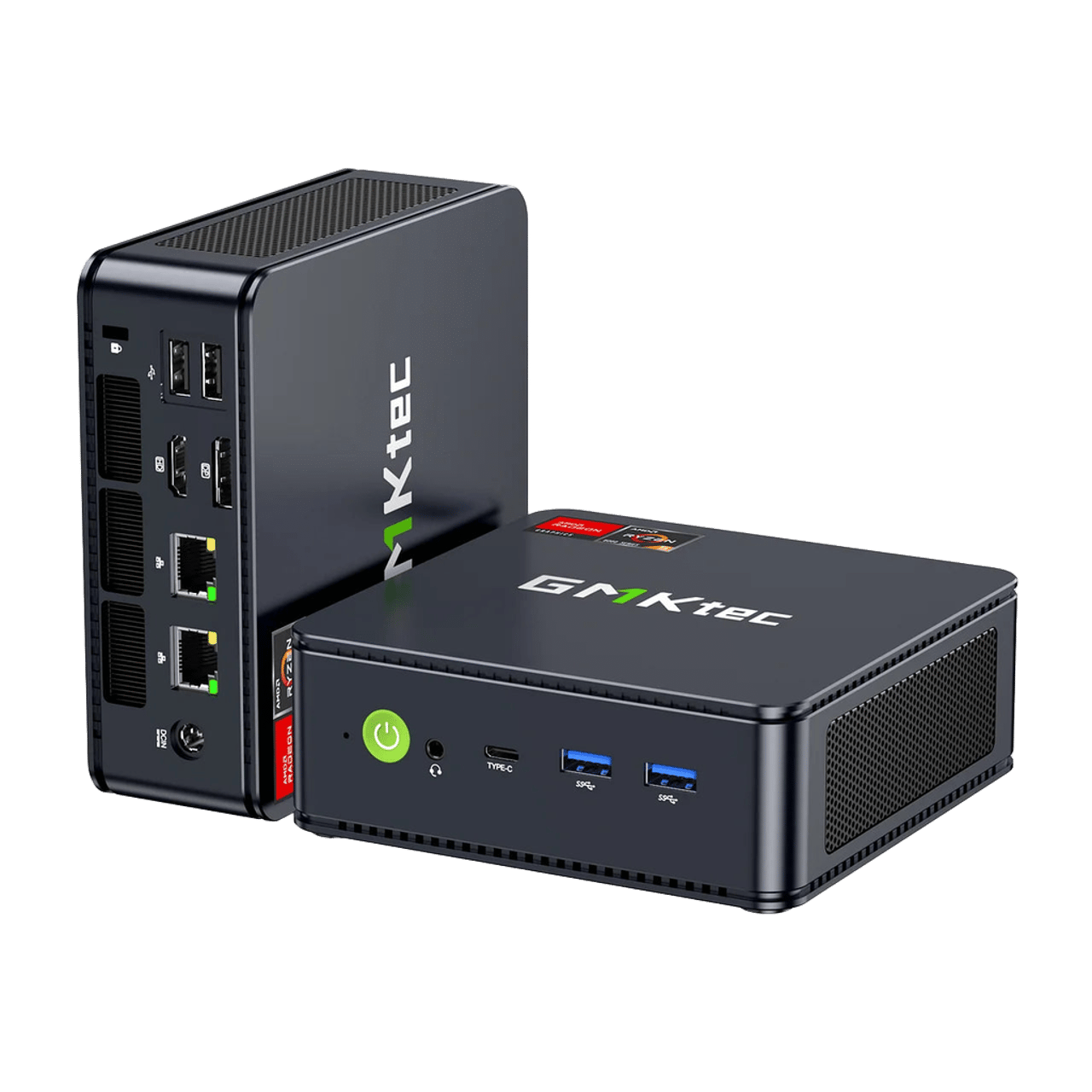

GMKtec NucBox M5 Ultra Mini PC AMD Ryzen™ 7 7730U
GMKtec NucBox M5 Ultra features AMD Ryzen 7 7730U (8 cores, 16 threads) and Radeon graphics. Supports up to 64GB DDR4, dual M.2 SSD (up to 16TB), triple display (8K via DP), WiFi 6E, dual 2.5GbE, and USB-C with PD 100W. Compact at 128.8 x 127 x 47.8 mm, 528 g. Comes with Windows 11 Pro.
Pros
- +8-core/16-thread AMD Ryzen 7 7730U
- +Dual 2.5GbE Ethernet ports
- +Wi-Fi 6E and Bluetooth 5.2
- +Triple display with 8K DP output
- +Dual M.2 SSD slots up to 16TB
- +USB-C with 100W PD and DisplayPort
Cons
- −No SD card slot
- −Only PCIe 3.0 SSD support
- −HDMI limited to 4K@60Hz
- −DDR4 memory not DDR5
| Model | GMKtec NucBox M5 Ultra |
| Processor | AMD Ryzen™ 7000 Series Processor, 8 Cores, 16 Threads, TSMC 7nm process, Base Frequency 2.0GHz, Max Boost Frequency up to 4.5GHz, 4MB L2 Cache, 16MB L3 Cache |
| Processor Model | AMD Ryzen™ 7 7730U |
| Processor Technology | TSMC 7nm FinFET |
| Processor Package | FP6 Package, TSMC 7nm FinFET |
| Graphics | AMD Radeon™ Graphics, 8 Cores, up to 2000MHz |
| Memory | 2 × SO-DIMM Slots, 16GB / 32GB configurations, Supports up to 64GB |
| Memory Slots | 2 x SO-DIMM slots, max 64GB |
| Storage | 2 × M.2 2280 SSD Slots, 512GB PCIe 3.0 SSD pre-installed |
| Storage Expansion | Supports up to 8TB per SSD, Maximum total storage capacity: up to 16TB |
| Display Support | Triple display output via HDMI + DisplayPort + USB-C, supports up to 8K resolution via DisplayPort |
| Network | Wi-Fi 6E (RZ616, up to 2.4 Gbps), Bluetooth 5.2, Dual 2.5G Ethernet LAN |
| Wireless | Wi-Fi 6E (RZ616, up to 2.4 Gbps), Bluetooth 5.2, Dual 2.5G Ethernet LAN |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual 2.5GbE ports |
| I/O Ports | USB-A: 2 × USB 3.2 Gen2 (10Gbps) + 2 × USB 2.0, USB-C: 1 × Type-C (USB 3.2 Gen2, PD 100W, DisplayPort 1.4, up to 4K@60Hz), HDMI: 1 × HDMI 2.0 (up to 4K@60Hz), DisplayPort: 1 × DisplayPort 1.4 (up to 8K@60Hz), Audio: 1 × 3.5mm CTIA Audio Jack, LAN: 2 × RJ45 2.5G Ethernet, Power: 1 × DC IN (5.5/2.5mm), Reset: 1 × Reset Button |
| Dimensions | 128.8 × 127 × 47.8 mm |
| Weight | 528 g |
| Color / Finish | Rust Color |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery, DC Power Adapter 19V / 3.42A |
| Power Options | US, EU, UK, AU |
| Cooling | Dual cooling fans |
| Operating System | Windows 11 Pro |
| Operating System Options | US, EU, UK, AU |
| Audio | 3.5mm CTIA audio jack |
| Expansion Slots | 2 x M.2 2280 (PCIe 3.0) for SSD |
| Environmental | 0°C to 40°C |
| Certifications | CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |
| Package Contents | User Manual, Warranty Card, Power Adapter, VESA Mount Bracket, HDMI Cable |
| Features | 14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Overview | GMKtec NucBox M5 Ultra Mini PC powered by AMD Ryzen TM 7 7730U processor (8 cores / 16 threads, up to 4.5GHz) with Radeon TM graphics. Supports DDR4 memory up to 64GB and dual M.2 NVMe SSD expansion up to 16TB. Equipped with WiFi 6E, dual 2.5GbE LAN, USB-C with DP and PD support, and triple-display output via HDMI, DisplayPort, and Type-C. A compact and efficient mini desktop ideal for home office, entry-level gaming, business computing, and multitasking workloads. |
| Warranty | 1-Year Limited Warranty |
| Configurations | Barebone (No DDR & SSD & OS) | 16GB RAM+512GB SSD | 32GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
