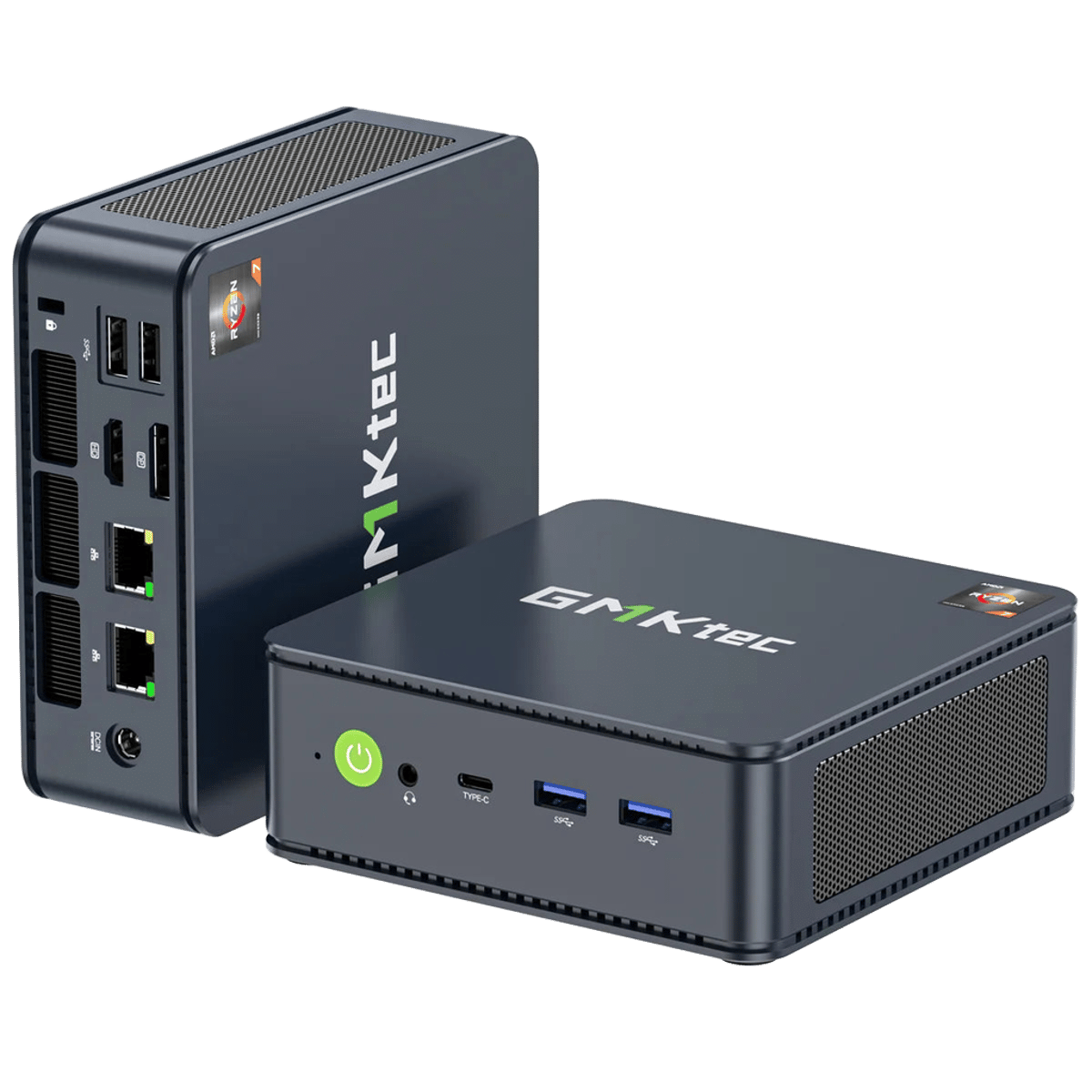

GMKtec NucBox M5 Plus Mini PC AMD Ryzen TM 7 5825U
The GMKtec NucBox M5 Plus features an AMD Ryzen 7 5825U processor (8 cores, 16 threads, up to 4.5GHz), AMD Radeon graphics, dual-channel DDR4-3200 memory (up to 64GB), PCIe 3.0 M.2 SSD storage (up to 2TB), triple display support via HDMI, DisplayPort, and USB-C, Wi-Fi 6, Bluetooth 5.2, dual 2.5GbE LAN ports. It runs Windows 11 Pro or Linux, measures 128.8 x 127 x 47.8 mm, weighs 528g, and is certified CE, FCC, CCC, RoHS.
Pros
- +8-core/16-thread Ryzen 7 CPU
- +Dual 2.5G Ethernet ports
- +Triple display output support
- +Wi-Fi 6 and Bluetooth 5.2
- +USB-C PD input support
- +Up to 64GB DDR4 memory
Cons
- −No external GPU support
| Model | GMKtec NucBox M5 Plus |
| Processor | AMD Ryzen™ Processor, 8 Cores, 16 Threads 7nm Process, FP6 Package Base Frequency 2.0GHz, Max Boost up to 4.5GHz 4MB L2 Cache / 16MB L3 Cache TDP 10W–35W Zen 3+ Architecture |
| Processor Model | AMD Ryzen™ 7 5825U |
| Processor Technology | 7nm Process |
| Processor Package | FP6 Package |
| Graphics | AMD Radeon™ Graphics 8 Cores, up to 2000MHz |
| Memory | 2 × SO-DIMM Slots Dual-Channel DDR4-3200 Memory 16GB / 32GB configurations Supports up to 64GB |
| Memory Slots | 2 SO-DIMM slots, max 64GB |
| Storage | PCIe 3.0 M.2 2280 SSD 512GB standard configuration |
| Storage Expansion | Supports up to 2TB total storage expansion |
| Display Support | Triple display output via HDMI + DisplayPort + USB Type-C Supports up to 4096 × 2160 resolution |
| Network | Wi-Fi 6 (RZ616, up to 1.2Gbps), Bluetooth 5.2, Dual 2.5G Ethernet LAN (Realtek RTL8125) |
| Wireless | Wi-Fi 6 (RZ616, up to 1.2Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek RTL8125) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual 2.5G Ethernet LAN (Realtek RTL8125) |
| I/O Ports | USB-A: 2 × USB 3.2 Gen2 + 2 × USB 2.0 HDMI: 1 × HDMI 2.0 (up to 4K@60Hz) DisplayPort: 1 × DisplayPort (up to 4K@60Hz) USB-C: 1 × Type-C (USB 3.1 Gen2 / PD / DP / Data, 10Gbps) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Reset: 1 × Reset Button |
| Dimensions | 128.8 × 127 × 47.8 mm |
| Weight | 528 g |
| Color / Finish | Bronze |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 19V / 3.42A |
| Power Options | US/JP, EU, UK, AU |
| Operating System | Windows 11 Pro / Linux Supported |
| Operating System Options | US/JP, EU, UK, AU |
| Audio | 1 × 3.5mm CTIA Audio Jack |
| Expansion Slots | 1 × M.2 2280 PCIe 3.0 (for SSD) |
| Environmental | 0°C – 40°C |
| Certifications | CE, FCC, CCC, RoHS |
| Package Contents | User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
| Features | The USB Type-C port supports data transfer, video output, and PD input (65W–100W). External GPU connection is not supported. | 13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Overview | GMKtec NucBox M5 Plus Mini PC powered by AMD Ryzen TM 7 5825U processor (8 cores / 16 threads, up to 4.5GHz). Featuring Radeon graphics, DDR4 memory up to 64GB, M.2 PCIe SSD storage up to 2TB, WiFi 6, dual 2.5GbE LAN, and triple-display output via HDMI, DisplayPort, and USB-C. Designed for home computing, office productivity, multitasking, and light gaming in a compact and energy-efficient mini desktop. Supports Windows 11 Pro and Linux with global warranty. |
| Warranty | 1-Year Limited Warranty |
| Configurations | Barebone (No DDR & SSD & OS) | 16GB RAM+512GB SSD | 32GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
