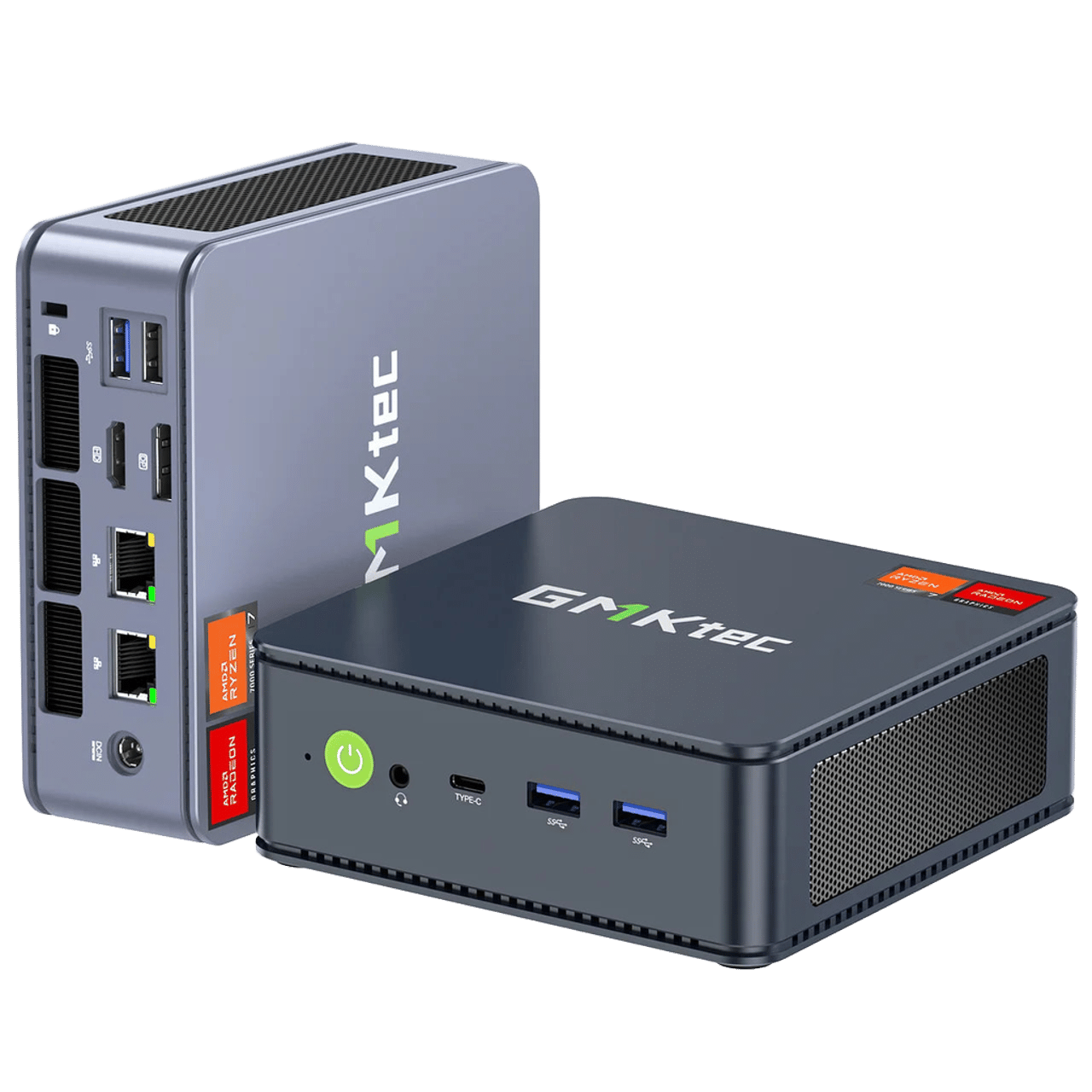

GMKtec NucBox K6 Mini PC AMD Ryzen TM 7 7840HS
GMKtec NucBox K6 mini PC features AMD Ryzen 7 7840HS with 8 cores/16 threads, up to 5.1GHz. Radeon 780M graphics, DDR5-5600 memory up to 64GB, dual PCIe 4.0 SSD slots, WiFi 6, dual 2.5GbE LAN, triple display via HDMI 2.0, DisplayPort, USB4. Includes Windows 11 Pro. Dimensions 128.8x127x47.8mm, weight 520g.
Pros
- +Powerful 8-core Ryzen 7 7840HS
- +Radeon 780M RDNA3 graphics
- +DDR5-5600 support up to 64GB
- +Dual M.2 PCIe 4.0 SSD slots
- +Triple display output with USB4
- +Dual 2.5GbE LAN ports
Cons
- −No SATA SSD support
- −No SD card reader
- −HDMI 2.0 only, not 2.1
| Model | GMKtec NucBox K6 |
| Processor | AMD Ryzen™ 7 Processor with Radeon™ Graphics 8 Cores / 16 Threads TSMC 4nm FinFET Process Base Frequency 3.8GHz, Max Boost up to 5.1GHz 8MB L2 Cache / 16MB L3 Cache TDP 65W Zen 4 Architecture with Integrated AI Engine (up to 10 TOPS) |
| Processor Model | AMD Ryzen™ 7 7840HS |
| Processor Technology | TSMC 4nm FinFET |
| Graphics | AMD Radeon™ 780M Graphics 12 Cores, up to 2700MHz RDNA 3 Architecture |
| NPU / AI Accelerator | Integrated AI Engine up to 10 TOPS |
| Memory | 2 × SO-DIMM Slots DDR5-5600 Memory 32GB Standard Configuration Supports up to 64GB |
| Memory Slots | 2 SO-DIMM slots, max 64GB |
| Storage | PCIe 4.0 M.2 2280 NVMe SSD 512GB / 1TB Options Available |
| Storage Expansion | 2 × M.2 2280 PCIe 4.0 SSD Slots Maximum Storage Expansion up to 4TB SATA SSD Not Supported |
| Display Support | Triple Display Output HDMI 2.0 ×1 DisplayPort ×1 USB4 ×1 Supports up to 4096 × 2160 Resolution |
| Network | Wi-Fi 6, Bluetooth 5.2, Dual 2.5GbE LAN |
| Wireless | Wi-Fi 6 (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN |
| Bluetooth | 5.2 |
| Ethernet | Dual 2.5G Ethernet LAN |
| I/O Ports | 2 × USB 3.2 Gen2 (Front) 1 × USB 3.2 Gen2 1 × USB 2.0 1 × USB4 Full-Function Port 1 × HDMI 2.0 1 × DisplayPort 2 × RJ45 2.5G LAN 1 × 3.5mm Audio Jack 1 × Reset Button 1 × DC Power Input |
| Front I/O | 2 × USB 3.2 Gen2 |
| Rear I/O | 1 × USB 3.2 Gen2, 1 × USB 2.0, 1 × USB4, 1 × HDMI 2.0, 1 × DisplayPort, 2 × RJ45 2.5G LAN, 1 × 3.5mm Audio Jack, 1 × Reset Button, 1 × DC Power Input |
| Dimensions | 128.8 × 127 × 47.8 mm |
| Weight | Approx. 520 g |
| Form Factor | Mini PC (NUC-style) |
| Power | DC 19V / 6.32A 120W Adapter |
| Power Options | US, EU, UK |
| Cooling | Twin-Turbofan System (dual fans) |
| Operating System | Windows 11 Pro / Linux Supported |
| Operating System Options | US, EU, UK |
| Audio | 3.5mm audio jack |
| Expansion Slots | 2 × M.2 2280 PCIe 4.0 (for storage) |
| Environmental | 0°C – 40°C |
| Security | Kensington lock slot |
| Support Included | 1 Year Limited Warranty |
| Certifications | CE / FCC / CCC / RoHS |
| Package Contents | Mini PC Power Adapter HDMI Cable VESA Mount User Manual |
| Kensington Lock | Yes |
| Features | USB4 Full-Function Port Supports Data Transfer, Display Output, and Power Delivery Up to 20Gbps Bandwidth Supports PD Power Delivery up to 100W | 13 Languages Supported (Default English) Chinese / English / French / Thai / Spanish / Korean / Japanese / German / Hebrew / Russian / Portuguese / Arabic |
| Overview | GMKtec NucBox K6 AMD Ryzen TM 7 7840HS Mini PC. Equipped with AMD Ryzen 7 7840HS (8 cores / 16 threads, up to 5.1GHz), Radeon 780M graphics based on RDNA3 architecture, DDR5-5600 memory up to 64GB, dual M.2 PCIe 4.0 SSD expansion up to 8TB, WiFi 6, dual 2.5GbE LAN, HDMI + DisplayPort + USB4 triple-display output, and Windows 11 Pro support. A powerful compact mini PC designed for gaming, creative workloads, multitasking, and professional productivity - global shipping & 1-year warranty included. |
| Warranty | 1 Year Limited Warranty |
| Configurations | Barebone (No DDR & SSD & OS) | 32GB RAM + 1TB SSD | 32GB RAM + 2TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
