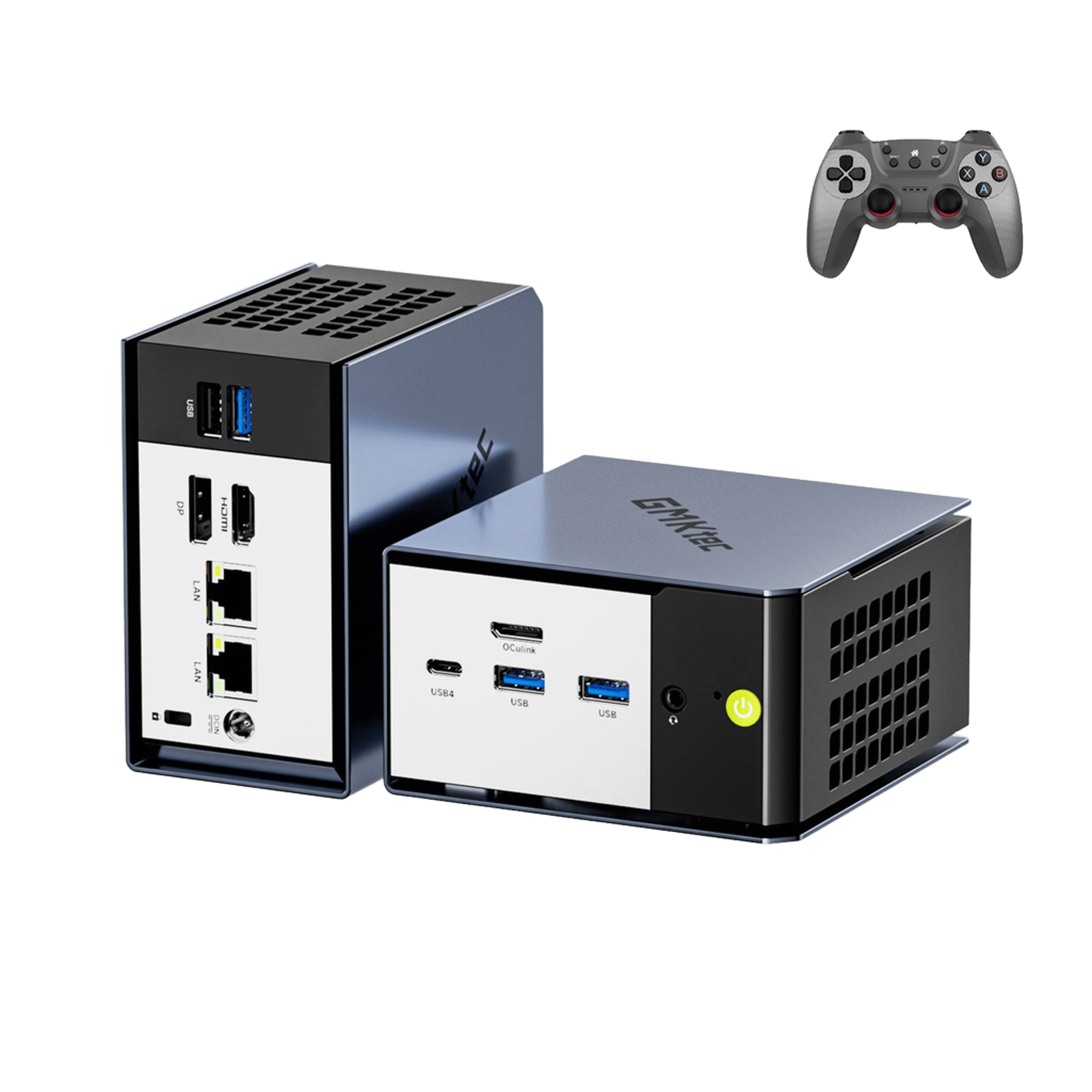

GMKtec NucBox K16 Mini PC AMD Ryzen™ 7 7735HS
The GMKtec NucBox K16 is a mini PC powered by an AMD Ryzen 7 7735HS (8-core, up to 4.75GHz) with Radeon 680M graphics. It features 32GB soldered LPDDR5 RAM, dual M.2 PCIe 4.0 slots (up to 16TB storage), WiFi 6E, dual 2.5GbE LAN, USB4, and OCuLink for eGPU. Triple display output up to 8K. Runs Windows 11 Pro. Dimensions: 107x111x63 mm, weight 590g.
Pros
- +8-core Ryzen 7 7735HS processor
- +Radeon 680M integrated graphics
- +32GB fast LPDDR5-6400 memory
- +Dual 2.5GbE LAN ports
- +USB4 with 40Gbps and DisplayPort
- +OCulink for external GPU expansion
Cons
- −Non-upgradable soldered RAM
- −SATA SSD not supported
- −HDMI 2.0 only
- −No SD card slot
- −OCulink no hot-plug support
| Model | GMKtec NucBox K16 |
| Processor | AMD Ryzen™ 7000 Series Processor, 8 Cores, 16 Threads TSMC 6nm FinFET Process Base Frequency 3.2GHz, Max Boost up to 4.75GHz 512KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache Zen 3+ Architecture |
| Processor Model | AMD Ryzen™ 7 7735HS |
| Processor Technology | TSMC 6nm FinFET |
| Processor Package | TSMC 6nm FinFET |
| Graphics | AMD Radeon™ 680M Graphics 12 Cores, up to 2200MHz |
| Memory | On-board LPDDR5-6400 Memory 32GB standard configuration Non-upgradable design |
| Memory Slots | 0 (soldered) |
| Storage | PCIe 3.0 M.2 2280 SSD 512GB / 1TB options |
| Storage Expansion | 2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports up to 8TB per slot (Max 16TB) SATA SSD not supported |
| Display Support | Triple display output via HDMI + DisplayPort + USB4 Supports up to 8K resolution |
| Wireless | Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (RTL8125BG) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual 2.5Gbps LAN (RTL8125BG) |
| I/O Ports | USB-A: 3 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0 USB4: 1 × USB4 Full-Function Port (40Gbps / PD 100W / DisplayPort 1.4) HDMI: 1 × HDMI 2.0 DisplayPort: 1 × DisplayPort 1.4 OCulink: 1 × OCulink PCIe Gen4 ×4 Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Lock Slot: 1 × Security Lock Slot Power Button: 1 × Power Button Reset: 1 × Reset Button |
| Dimensions | 107 × 111 × 63 mm |
| Weight | Approx. 590 g |
| Color / Finish | Metallic Gray |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W |
| Power Options | US, EU, UK, AU |
| Cooling | Dual air cooling fans |
| Operating System | Windows 11 Pro |
| Operating System Options | US, EU, UK, AU |
| Audio | 3.5mm CTIA audio jack |
| Expansion Slots | 2x M.2 2280 PCIe 4.0 x4 SSD slots |
| Environmental | 0°C – 40°C |
| Certifications | CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |
| Package Contents | User Manual Warranty Card Power Adapter HDMI Cable |
| Kensington Lock | Security lock slot |
| Features | The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off. | 14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Overview | GMKtec NucBox K16 Mini PC powered by AMD Ryzen TM 7 7735HS processor (8 cores / 16 threads, up to 4.75GHz) with Radeon TM 680M RDNA2 graphics. Featuring LPDDR5 memory, dual PCIe NVMe SSD expansion up to 16TB, WiFi 6E, dual 2.5GbE LAN, and high-speed connectivity including USB4 and OCuLink for external GPU expansion. Supports multi-display output via HDMI, DisplayPort, and USB4 up to 8K resolution. A compact high-performance mini desktop designed for gaming, content creation, productivity, and advanced multitasking. |
| Warranty | 1-Year Limited Warranty |
| Configurations | 32GB RAM+ 512GB SSD | 32GB RAM+ 1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
