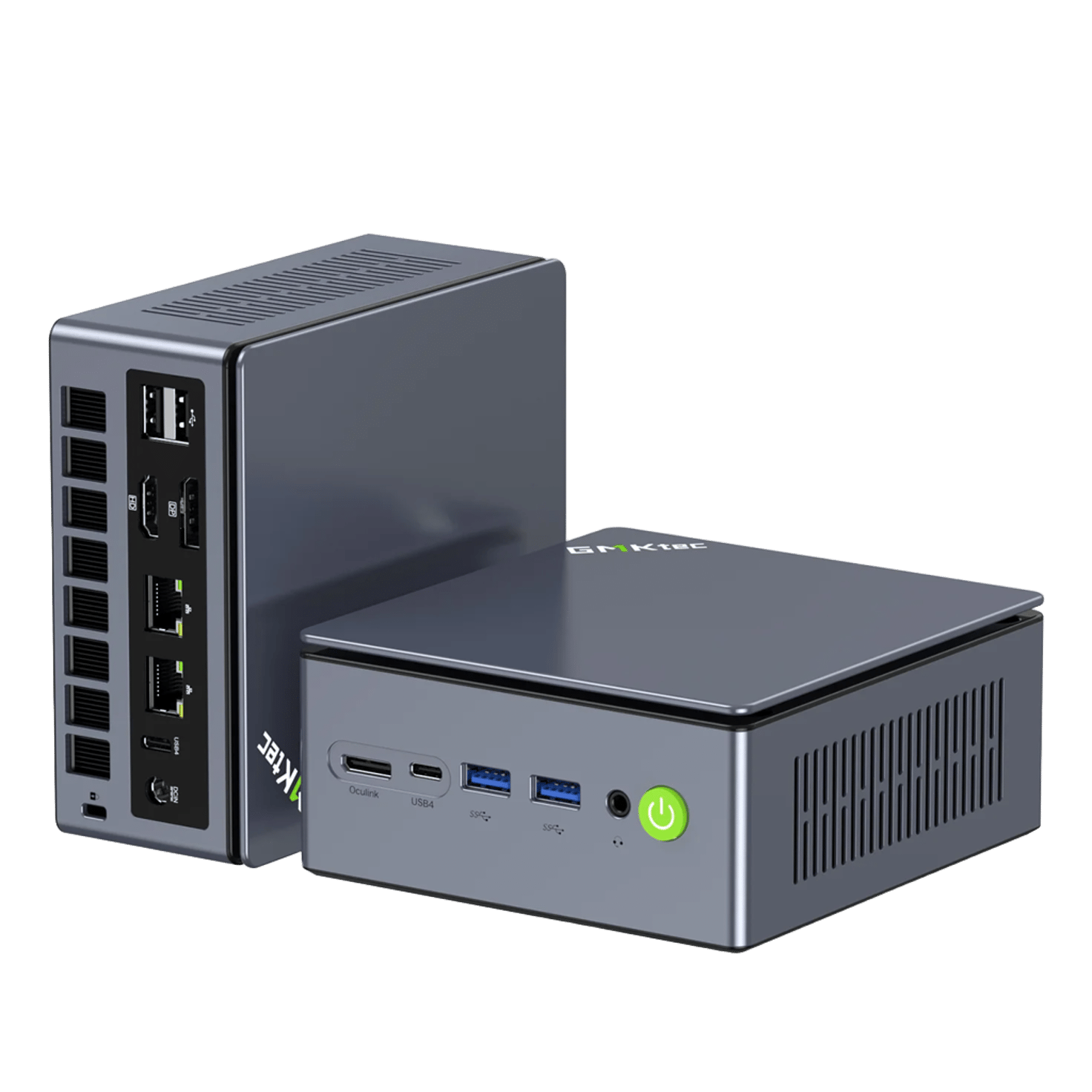

GMKtec NucBox M7 Ultra Mini PC AMD Ryzen™ 7 PRO 6850U
The GMKtec NucBox M7 Ultra is a mini PC powered by an AMD Ryzen 7 PRO 6850U processor (8 cores, up to 4.7GHz) with Radeon 680M graphics. It supports up to 64GB DDR5 memory, dual M.2 PCIe 4.0 SSDs (up to 16TB), Wi-Fi 6E, dual 2.5GbE LAN, dual USB4, and quad 8K display output. Features an OCulink port for external GPU.
Pros
- +8-core 16-thread Ryzen 7 PRO processor
- +Radeon 680M integrated graphics
- +DDR5 memory up to 64GB
- +Dual M.2 PCIe 4.0 storage slots
- +Quad display output up to 8K
- +Dual 2.5G Ethernet ports
Cons
- −Primary M.2 slot is PCIe 3.0
- −No SD card slot
- −OCulink does not support hot-plugging
| Model | GMKtec NucBox M7 Ultra |
| Processor | AMD Ryzen™ PRO 6000 Series Processor, 8 Cores, 16 Threads TSMC 6nm FinFET Process Base Frequency 2.7GHz, Max Boost up to 4.7GHz 512KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache Zen 3+ Architecture |
| Processor Model | AMD Ryzen™ 7 PRO 6850U |
| Processor Technology | TSMC 6nm FinFET |
| Graphics | AMD Radeon™ 680M Graphics 12 Cores, up to 2200MHz |
| NPU / AI Accelerator | N/A |
| Memory | 2 × SO-DIMM Slots DDR5-4800 Memory 16GB / 32GB configurations Supports up to 64GB |
| Memory Slots | 2 SO-DIMM slots, max 64GB |
| Storage | PCIe 3.0 M.2 2280 SSD 512GB / 1TB / 2TB options |
| Storage Expansion | 2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports up to 8TB per slot (Max 16TB) |
| Display Support | Quad Display Output via HDMI + DisplayPort + 2 × USB4 Supports up to 8K Resolution |
| Network | Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel I226-V) |
| Wireless | Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel I226-V) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual 2.5G Ethernet LAN (Intel I226-V) |
| I/O Ports | USB-A: 2 × USB 3.2 Gen2 + 2 × USB 2.0 USB4: 2 × USB4 Full-Function Ports (40Gbps / PD / DisplayPort) HDMI: 1 × HDMI 2.1 (up to 8K@60Hz) DisplayPort: 1 × DisplayPort 2.0 (up to 8K@60Hz) OCulink: 1 × OCulink PCIe Gen4 ×4 Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) |
| Front I/O | 2×USB 3.2 Gen2 (10Gbps), 1×3.5mm audio jack, 1×OCulink, 1×USB4, Power button |
| Rear I/O | 2×USB 2.0, 1×HDMI 2.1, 1×DisplayPort 2.0, 1×USB4, 2×RJ45 LAN, 1×DC IN, 1×Security lock hole |
| Dimensions | 132 × 125 × 58 mm |
| Weight | 604 g |
| Color / Finish | Metallic Gray |
| Form Factor | Mini PC |
| Power | Built-in Coin Cell Battery DC Power Adapter 19V / 6.32A |
| Power Options | US, EU, UK, AU |
| Cooling | NEW HYPER ICE CHAMBER 2.0 DUAL AIR COOLING FANS |
| Operating System | Windows 11 Pro |
| Operating System Options | US, EU, UK, AU |
| Audio | 1 × 3.5mm CTIA Audio Jack |
| Expansion Slots | 2 × M.2 2280 PCIe 4.0 ×4 (storage expansion), 1 × M.2 2280 PCIe 3.0 (primary storage) |
| Environmental | 0°C – 40°C |
| Security | AMD PRO security features, Kensington lock slot |
| Certifications | CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |
| Package Contents | User Manual Warranty Card Power Adapter HDMI Cable VESA Mount Bracket Transparent Top Cover |
| Kensington Lock | Yes (security lock hole on rear) |
| Features | The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off. | 14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Overview | GMKtec NucBox M7 Ultra Mini PC powered by AMD Ryzen TM 7 PRO 6850U processor (8 cores / 16 threads, up to 4.7GHz) with Radeon TM 680M graphics. Supports up to 64GB DDR5 memory and dual M.2 PCIe SSD expansion up to 16TB storage. Equipped with WiFi 6E, dual 2.5GbE LAN, dual USB4 ports, and quad-display output via HDMI 2.1, DisplayPort, and USB4. A compact yet powerful mini desktop designed for productivity, gaming, content creation, and business workloads with enhanced AMD PRO security features. |
| Warranty | 1-Year Limited Warranty |
| Configurations | Barebone (No DDR & SSD & OS) | 16GB RAM+512GB SSD | 32GB RAM+1TB SSD |
