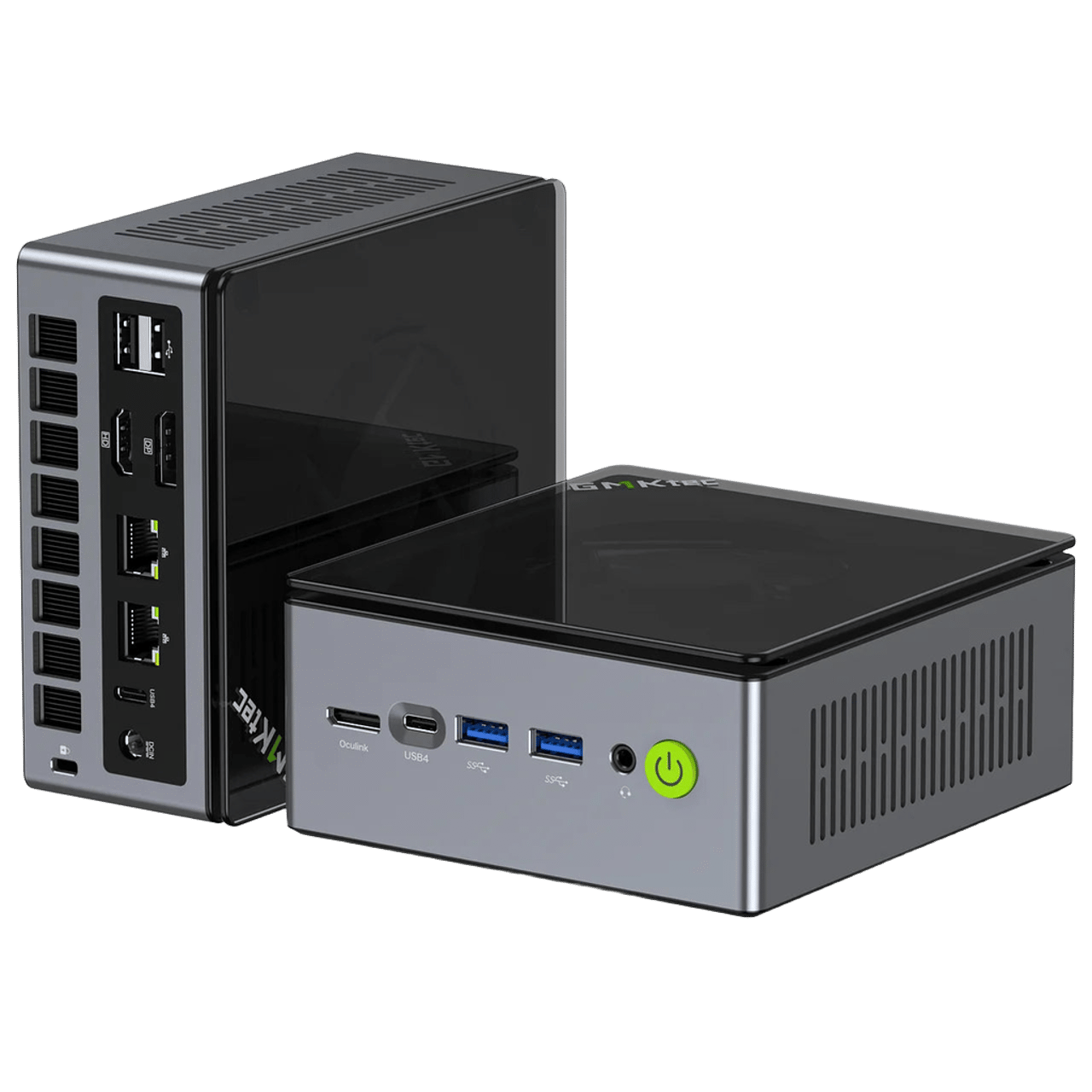

GMKtec NucBox M7 Pro Mini PC AMD Ryzen TM 9 PRO 6950H
GMKtec NucBox M7 Pro Mini PC with AMD Ryzen 9 PRO 6950H (8 cores, up to 4.9GHz). Features Radeon 680M graphics, 32GB DDR5-4800 RAM (max 64GB), dual M.2 NVMe SSD slots (supports PCIe Gen4), Wi-Fi 6, Bluetooth 5.2, dual 2.5GbE LAN, HDMI 2.1, DisplayPort 2.0, dual USB4, and OCulink port. Runs Windows 11 Pro. Dimensions 132x125x58mm. Price $439.99-$489.99.
Pros
- +AMD Ryzen 9 PRO 6950H 8-core processor
- +Radeon 680M integrated graphics
- +DDR5 memory with ECC support
- +Dual M.2 PCIe Gen4 SSD slots
- +Wi-Fi 6 and Bluetooth 5.2
- +Dual 2.5G Ethernet LAN
Cons
- −No SD card reader
- −Included SSD is PCIe 3.0
| Model | GMKtec NucBox M7 Pro |
| Processor | AMD Ryzen™ 9 PRO 6000 Series Mobile Processor 8 Cores / 16 Threads TSMC 6nm FinFET Process Base Frequency 3.3GHz, Max Boost up to 4.9GHz TDP 35W–70W 384KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache |
| Processor Model | AMD Ryzen™ 9 PRO 6950H |
| Processor Technology | TSMC 6nm FinFET Process |
| Graphics | AMD Radeon™ 680M Graphics 12 Cores, up to 2400MHz |
| Memory | 2 × SO-DIMM Slots DDR5-4800 Memory 32GB Standard Configuration Supports up to 64GB ECC Supported |
| Memory Slots | 2 slots, max 64GB |
| Storage | PCIe 3.0 M.2 2280 NVMe SSD 1TB Standard Configuration |
| Storage Expansion | 2 × M.2 2280 NVMe SSD Slots Supports PCIe Gen4 x4 Maximum Expansion up to 2TB |
| Display Support | Supports up to 4 Displays HDMI 2.1 ×1 DisplayPort 2.0 ×1 USB4 ×2 |
| Wireless | Wi-Fi 6 (Intel AX200, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel I226V ×2) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual 2.5G Ethernet LAN (Intel I226V ×2) |
| I/O Ports | 2 × USB 3.2 Gen2 2 × USB 2.0 2 × USB4 (40Gbps / PD3.0 / DP1.4) 1 × HDMI 2.1 1 × DisplayPort 2.0 2 × RJ45 2.5G LAN 1 × OCulink PCIe Gen4 ×4 1 × 3.5mm Audio Jack 1 × DC Power Input On-board Digital Microphone |
| Dimensions | 132 × 125 × 58 mm |
| Color / Finish | Multiple Color Options |
| Form Factor | Mini PC |
| Power | DC 19V / 6.32A 120W Adapter |
| Power Options | US |
| Operating System | Windows 11 Pro / Linux Supported |
| Operating System Options | US |
| Audio | 3.5mm Audio Jack, On-board Digital Microphone |
| Expansion Slots | 2 × M.2 2280 NVMe SSD Slots (PCIe Gen4 x4) |
| Environmental | 0°C – 40°C |
| Certifications | CE / FCC / CCC / RoHS |
| Package Contents | Mini PC Power Adapter HDMI Cable VESA Mount User Manual |
| Features | The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off. | 13 Languages Supported (Default English) Chinese / English / French / Thai / Spanish / Korean / Japanese / German / Hebrew / Russian / Portuguese / Arabic |
| Overview | GMKtec NucBox M7 Pro AMD Ryzen TM 9 PRO 6950H Mini PC. Equipped with AMD Ryzen 9 PRO 6950H (8 cores / 16 threads, up to 4.9GHz), Radeon 680M graphics, DDR5-4800 memory up to 64GB, dual M.2 PCIe SSD expansion (up to 4TB), WiFi 6, dual 2.5GbE LAN, HDMI + DisplayPort + dual USB4 multi-display output, and Windows 11 Pro support. A high-performance compact mini PC designed for gaming, content creation, multitasking, and professional workloads - global shipping & 1-year warranty included. |
| Warranty | 1 Year Limited Warranty |
| Configurations | 32GB RAM+1TB SSD | 32GB RAM+2TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
