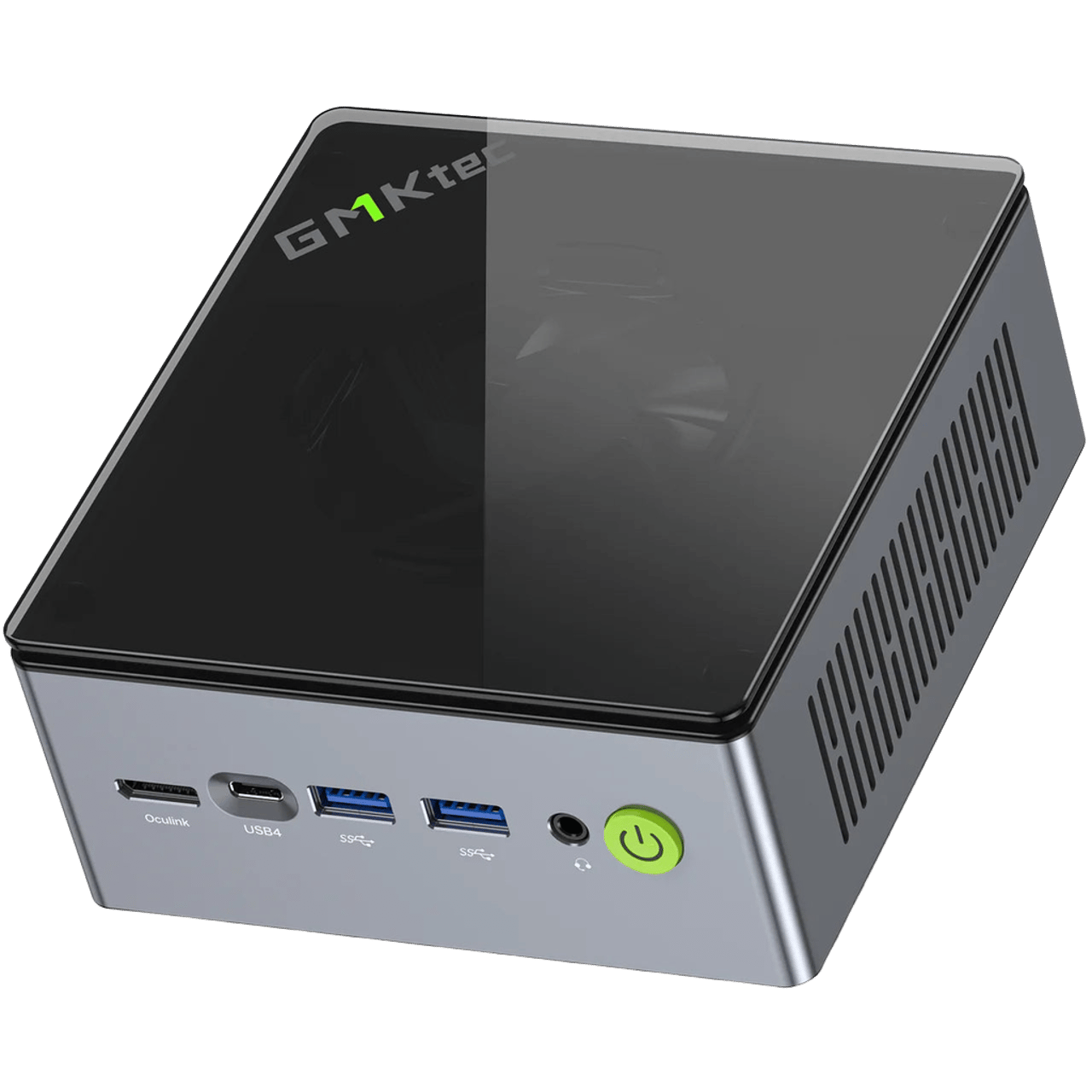

GMKtec NucBox M7 Mini PC AMD Ryzen TM 7 PRO 6850H
The GMKtec NucBox M7 features an AMD Ryzen 7 PRO 6850H (8 cores, 16 threads) with Radeon 680M graphics, DDR5-4800 memory up to 64GB, dual M.2 PCIe slots, Wi-Fi 6, dual 2.5GbE LAN, and quad display output via HDMI, DisplayPort, and dual USB4. It runs Windows 11 Pro and includes a 1-year warranty.
Pros
- +AMD Ryzen 7 PRO 6850H 8-core processor
- +Radeon 680M integrated graphics
- +Dual 2.5G Ethernet LAN
- +Wi-Fi 6 and Bluetooth 5.2
- +Two USB4 full-function ports
- +Quad display output support
Cons
- −OCulink port does not support hot-plugging
- −Standard SSD is PCIe 3.0 not Gen4
| Model | GMKtec NucBox M7 |
| Processor | AMD Ryzen™ 7 PRO 6000 Series Mobile Processor, 8 Cores, 16 Threads TSMC 6nm FinFET Process Frequency 3.2GHz to 4.7GHz TDP 35W–70W 512KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache |
| Processor Model | AMD Ryzen™ 7 PRO 6850H |
| Processor Technology | TSMC 6nm FinFET |
| Processor Package | TSMC 6nm FinFET |
| Graphics | AMD Radeon™ 680M Graphics 12 Cores, up to 2200MHz |
| Memory | 2 × SO-DIMM Slots DDR5-4800 Memory 32GB standard configuration Supports up to 64GB ECC supported |
| Memory Slots | 2 |
| Storage | PCIe 3.0 M.2 2280 SSD 1TB standard configuration |
| Storage Expansion | Supports dual M.2 2280 NVMe SSD slots PCIe Gen4 ×4 supported Maximum storage expansion up to 2TB |
| Display Support | Quad display output via HDMI + DisplayPort + Dual USB4 Supports up to 4096 × 2160 resolution |
| Wireless | Wi-Fi 6 (Intel AX200, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel I226V ×2) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual 2.5G Ethernet LAN (Intel I226V ×2) |
| I/O Ports | USB-A: 2 × USB 3.2 Gen2 + 2 × USB 2.0 USB4: 2 × USB4 Full-Function Ports (40Gbps / PD 3.0 / DP1.4 / USB 3.2 10Gbps) HDMI: 1 × HDMI 2.1 (up to 8K@60Hz) DisplayPort: 1 × DisplayPort 2.0 (up to 8K@60Hz) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet OCulink: 1 × PCIe Gen4 ×4 OCulink Port Power: 1 × DC IN (5.5 / 2.5mm) DMIC: On-board Digital Microphone |
| Dimensions | 132 × 125 × 58 mm |
| Color / Finish | Multiple color options available |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W |
| Power Options | US |
| Cooling | Air |
| Operating System | Windows 11 Pro / Linux Supported |
| Operating System Options | US |
| Audio | 3.5mm CTIA Audio Jack, On-board Digital Microphone |
| Expansion Slots | Dual M.2 2280 NVMe SSD slots (PCIe Gen4 ×4), OCulink port |
| Environmental | 0°C – 40°C |
| Certifications | CE, FCC, CCC, RoHS |
| Package Contents | User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
| Features | The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off. | 13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Overview | GMKtec NucBox M7 AMD Ryzen TM 7 PRO 6850H Mini PC. Equipped with AMD Ryzen 7 PRO 6850H (8 cores / 16 threads, up to 4.7GHz), Radeon 680M graphics, DDR5-4800 memory up to 64GB, dual M.2 PCIe SSD expansion (up to 4TB), WiFi 6, dual 2.5GbE LAN, HDMI + DisplayPort + dual USB4 for multi-display output, and Windows 11 Pro support. A powerful compact mini PC ideal for gaming, creative workloads, office productivity, and business environments - global shipping & 1-year warranty included. |
| Warranty | 1-Year Limited Warranty |
| Configurations | Barebone (No DDR & SSD & OS) | 16GB RAM+512GB SSD | 32GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
