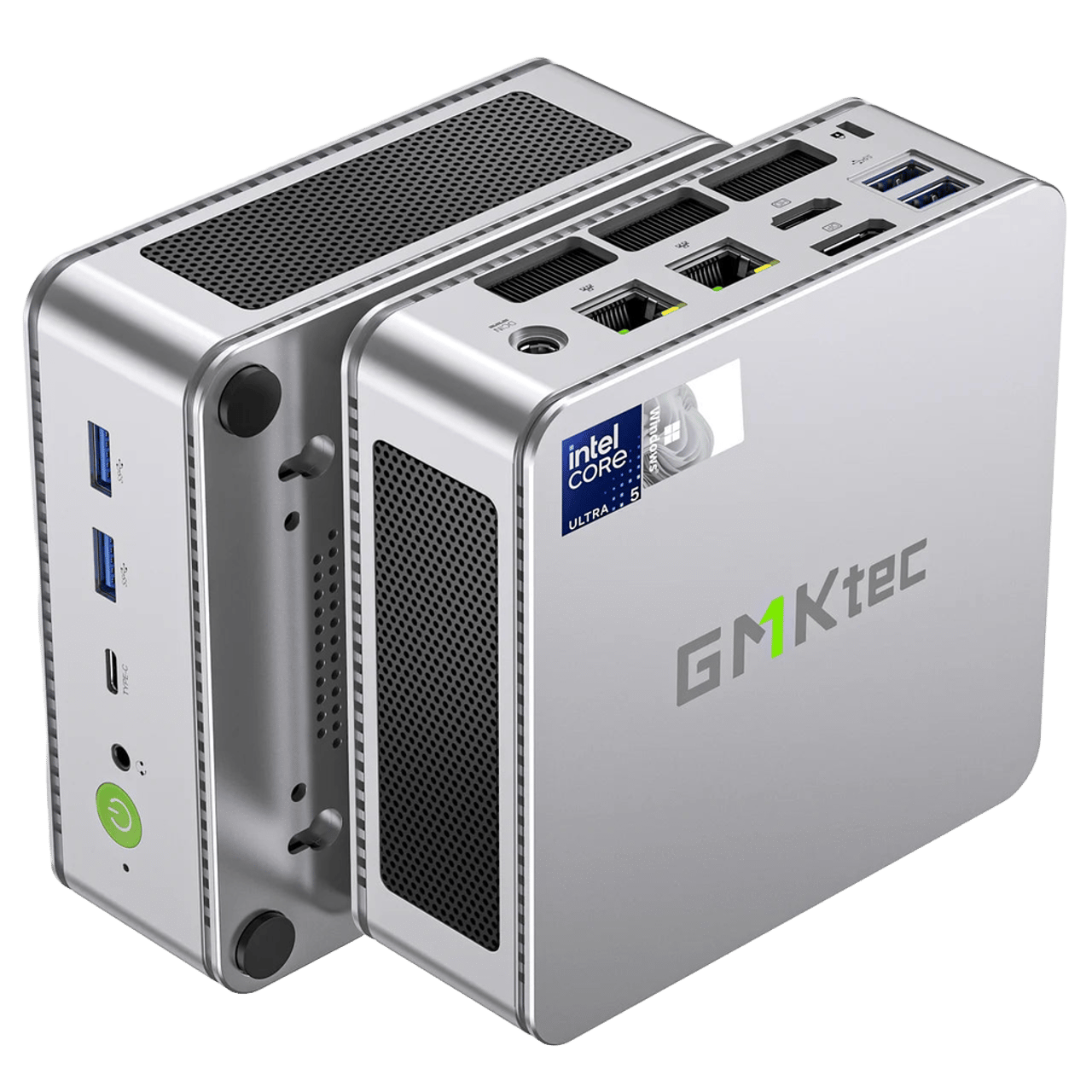

GMKtec NucBox K9 Mini PC Intel® Ultra 5 125H
The GMKtec NucBox K9 features an Intel Core Ultra 5 125H processor with 14 cores, Intel Arc graphics, and an AI Boost NPU. It supports up to 96GB DDR5-5600 RAM, dual PCIe 4.0 M.2 SSDs up to 4TB, Wi-Fi 6, dual 2.5GbE LAN, and triple display output up to 8K via HDMI, DisplayPort, and Thunderbolt 4. Runs Windows 11 Pro.
Pros
- +Powerful 14-core Intel Core Ultra 5
- +Integrated AI Boost NPU
- +Intel Arc graphics with 112 EUs
- +Dual 2.5G Ethernet LAN
- +Wi-Fi 6 and Bluetooth 5.2
- +Triple display up to 8K @60Hz
| Model | GMKtec NucBox K9 |
| Processor | Intel® Core™ Ultra Processor, 14 Cores, 18 Threads Intel 4 Process Base Frequency 3.6GHz, Max Turbo up to 4.5GHz 18MB Cache TDP 28W–65W Integrated AI Engine up to 16 TOPS |
| Processor Model | Intel® Core™ Ultra 125H |
| Processor Technology | Intel 4 Process |
| Processor Package | FCBGA2049 Package, 50 × 25 mm |
| Graphics | Intel® Arc™ Graphics 7 Xe-Cores (112 EUs) Up to 2.2GHz |
| NPU / AI Accelerator | Intel® AI Boost Up to 1.4GHz Supports OpenVINO™, Windows ML, DirectML, and ONNX Runtime |
| Memory | 2 × SO-DIMM Slots Dual-Channel DDR5-5600 Memory 32GB standard configuration Supports up to 96GB |
| Memory Slots | 2 SO-DIMM slots, max 96GB |
| Storage | PCIe 4.0 ×4 M.2 2280 SSD 1TB standard configuration |
| Storage Expansion | 2 × M.2 2280 SSD slots Supports PCIe 3.0 / 4.0 and SATA Maximum storage expansion up to 4TB |
| Display Support | Triple display output via HDMI + DisplayPort + Thunderbolt 4 / USB4 Supports up to 7680 × 4320 @ 60Hz |
| Network | Wi-Fi 6 (Intel AX201, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek Gaming 2.5GbE) |
| Wireless | Wi-Fi 6 (Intel AX201, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek Gaming 2.5GbE) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Dual 2.5G Ethernet LAN (Realtek Gaming 2.5GbE) |
| I/O Ports | USB-A: 4 × USB 3.2 Gen2 (10Gbps) HDMI: 1 × HDMI 2.0 DisplayPort: 1 × DisplayPort Thunderbolt 4 / USB4: 1 × Full-Function Type-C Port (PD / DP / Data) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Reset: 1 × Reset Button |
| Dimensions | 128.8 × 127 × 47.8 mm |
| Weight | 528 g |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W |
| Power Options | US |
| Operating System | Windows 11 Pro / Linux Supported |
| Operating System Options | US |
| Expansion Slots | 2 × M.2 2280 SSD slots (PCIe 3.0/4.0 and SATA) |
| Environmental | 0°C – 40°C |
| Certifications | CE, FCC, CCC, RoHS |
| Package Contents | User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
| Features | The front Type-C port supports full-function USB4 / Thunderbolt 4 features, including data transfer, video output, and PD power input. | 13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic | AI PC with built-in AI model support |
| Overview | GMKtec NucBox K9 Intel Core TM Ultra 125H Mini PC. Equipped with Intel Core Ultra 125H (14 cores / 18 threads, up to 4.5GHz), Intel Arc graphics, Intel AI Boost NPU for AI acceleration, DDR5-5600 memory up to 96GB, dual M.2 PCIe 4.0 SSD expansion up to 8TB, WiFi 6, dual 2.5GbE LAN, HDMI + DisplayPort + Thunderbolt 4 multi-display output up to 8K, and Windows 11 Pro support. A powerful AI-ready mini PC designed for AI workloads, content creation, multitasking, and professional productivity - global shipping & 1-year warranty included. |
| Warranty | 1-Year Limited Warranty |
| Configurations | Barebone (No DDR & SSD & OS) | 32GB RAM+ 1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
