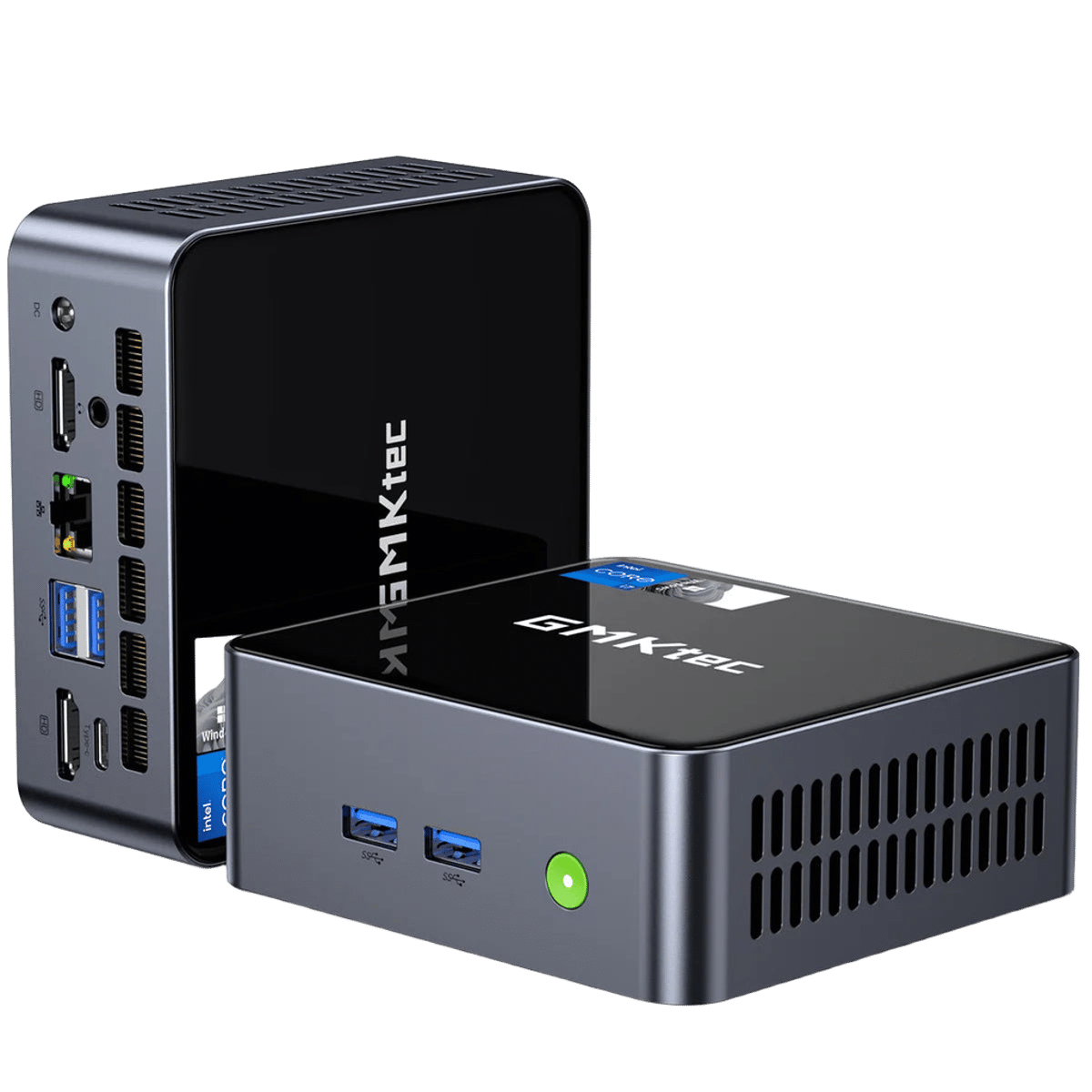

GMKtec NucBox M2 Pro Mini PC 11th Gen Intel Core TM i7 1195G7
GMKtec NucBox M2 Pro Mini PC features an Intel Core i7-1195G7 (4 cores, up to 5.0GHz), Intel Iris Xe graphics, dual SO-DIMM DDR4-3200 slots (up to 64GB), dual M.2 storage (2280 PCIe 3.0 and 2242 SATA), Wi-Fi 6, Bluetooth 5.2, 2.5GbE LAN, triple display via dual HDMI and USB-C, dimensions 114x106x42.5mm, weight 361g, Windows 11 Pro or Linux.
Pros
- +Powerful i7-1195G7 up to 5.0GHz
- +Triple display support via HDMI and USB-C
- +WiFi 6 and Bluetooth 5.2
- +2.5G Ethernet LAN
- +Dual DDR4 slots up to 64GB
- +NVMe and SATA M.2 expansion slots
Cons
- −No Thunderbolt 4 support
- −USB-C does not support charging
- −No SD card slot
| Model | GMKtec NucBox M2 Pro |
| Processor | 11th Gen Intel® Core™ i7 Processor, 4 Cores, 8 Threads 10nm Process Max Turbo Frequency up to 5.0GHz 12MB L3 Cache TDP 28W |
| Processor Model | Intel® Core™ i7-1195G7 Processor |
| Processor Technology | 10nm Process |
| Processor Package | FCBGA1449 Package, 45.5 × 25 mm |
| Graphics | Intel® Iris® Xe Graphics eligible 96 Execution Units Up to 1.4GHz |
| Memory | 2 × SO-DIMM Slots DDR4-3200 Memory 16GB / 32GB configurations Supports up to 64GB |
| Memory Slots | 2 (max 64GB) |
| Storage | M.2 2280 NVMe PCIe 3.0 SSD 512GB standard configuration |
| Storage Expansion | 1 × M.2 2280 PCIe SSD slot, supports up to 2TB 1 × M.2 2242 SATA SSD slot, supports up to 2TB |
| Display Support | Triple display output via Dual HDMI + USB Type-C Supports up to 4096 × 2160 resolution |
| Wireless | Wi-Fi 6 (Realtek 8852BE, up to 1201Mbps) Bluetooth 5.2 2.5G Ethernet LAN (Intel I226-V) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 2.5G Ethernet LAN (Intel I226-V) |
| I/O Ports | USB-A: 3 × USB 3.2 Gen1 + 1 × USB 2.0 HDMI: 2 × HDMI (up to 4096 × 2160 @ 60Hz) USB-C: 1 × Type-C (DisplayPort / Data only) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 1 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) |
| Dimensions | 114 × 106 × 42.5 mm |
| Weight | 361 g |
| Color / Finish | Gray |
| Form Factor | Mini PC |
| Power | Built-in coin cell battery DC Power Adapter 20V / 5A, 100W |
| Power Options | US/JP, EU, UK, AU |
| Operating System | Windows 11 Pro / Linux Supported |
| Operating System Options | US/JP, EU, UK, AU |
| Environmental | 0°C – 50°C |
| Certifications | CE, FCC, CCC, RoHS |
| Package Contents | User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
| Features | The USB Type-C port supports video output and data transfer only. It does not support Thunderbolt 4 or charging. | 13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Overview | GMKtec NucBox M2 Pro Mini PC powered by Intel Core TM i7-1195G7 processor (4 cores / 8 threads, up to 5.0GHz). Featuring Intel Iris Xe graphics, DDR4-3200 memory up to 64GB, NVMe M.2 SSD storage with additional M.2 expansion, WiFi 6, 2.5GbE LAN, and triple-display support via dual HDMI and USB-C. A compact yet powerful mini desktop designed for office productivity, business computing, multitasking, and home use. Supports Windows 11 Pro and Linux with global warranty. |
| Warranty | 1-Year Limited Warranty |
| Configurations | Barebone (No RAM No SSD No Windows 11 Pro) | 16GB RAM+512GB SSD | 16GB RAM+1TB SSD | 32GB RAM+1TB SSD |
Specs on this page may not be 100% accurate — please verify with the manufacturer.
